When upgrading car audio, the biggest challenge isn't choosing the right speakers—it's figuring out how to install them perfectly. Stable mounting, zero rattling, precise curvature matching, and seamless interior integration… These are the pain points that often make traditional upgrades time-consuming and heavily dependent on experience.
3D scanning changes the entire process. It turns trial-and-error craftsmanship into a data-driven, controllable, and repeatable workflow. Brackets, panels, and pods can now be designed with millimeter-level accuracy, improving acoustics while maintaining factory-grade appearance.
In this feature, we highlight three real user cases that showcase how 3D scanning elevates speaker upgrades across different vehicles and structures— boosting sound quality, improving structural integrity, and bringing a more professional, enjoyable upgrade experience.

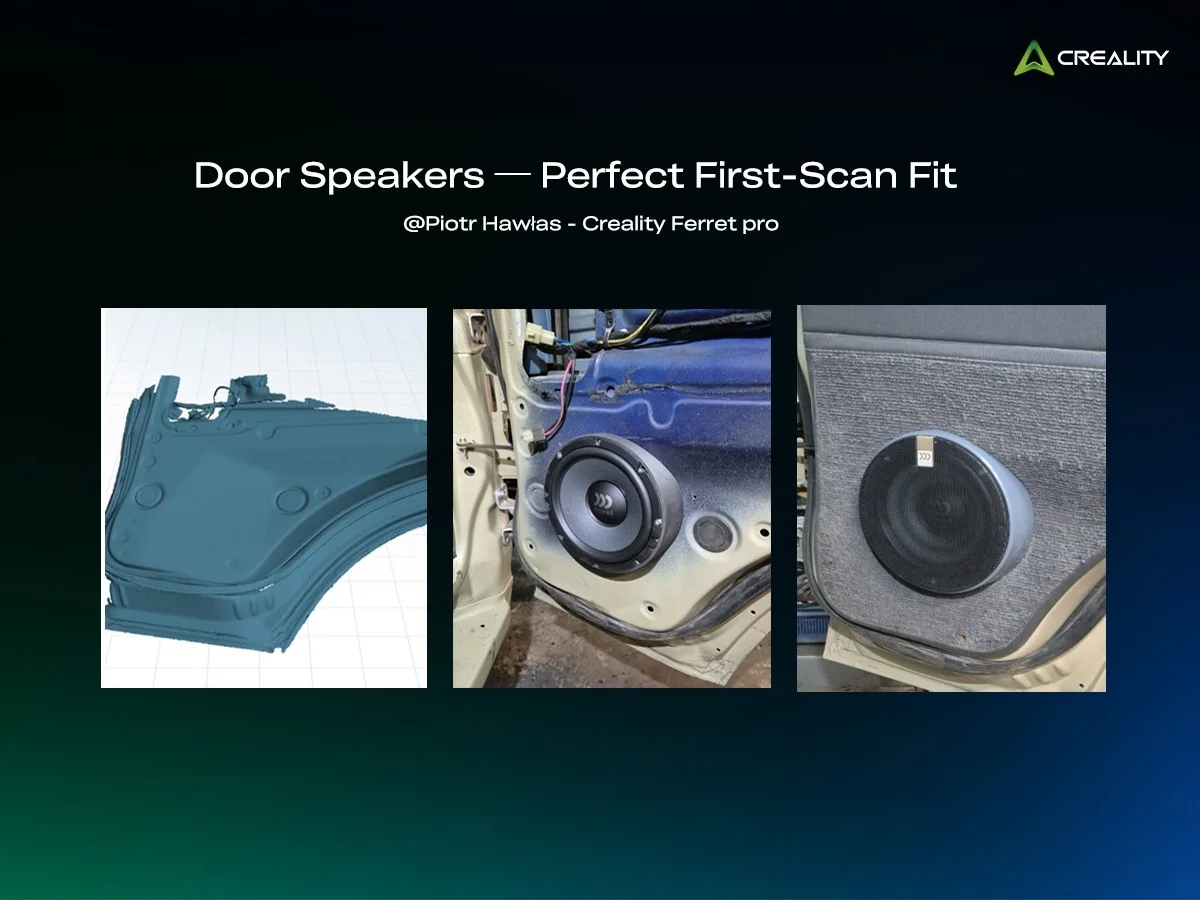

Case 01｜Door Speaker Upgrade: Achieving Professional Fitment on the First Scan
User Background & Upgrade Goal
Piotr, a first-time 3D scanning user and car audio enthusiast, wanted to replace his small dash-mounted speakers with larger, higher-quality door speakers. To make this possible, he needed a mounting solution that fits the door perfectly, stays stable, minimizes vibration noise, and maintains the original vehicle aesthetics.
Solution Highlights
- Used 3D scanning to capture the inner door panel curvature and mounting points
- Designed a fully contour-matching speaker bracket based on scan data
- Printed the bracket in ABS and smoothed the surface using an acetone treatment
- Added a custom inner mounting ring for improved stability
- Achieved a perfect match between the bracket and the door’s curved geometry
Final Result
- The upgraded speakers mount firmly with zero gaps
- The fit looks OEM, with no visible modification marks
- User feedback: “I can't believe this was my first scanning project—the result is incredible!

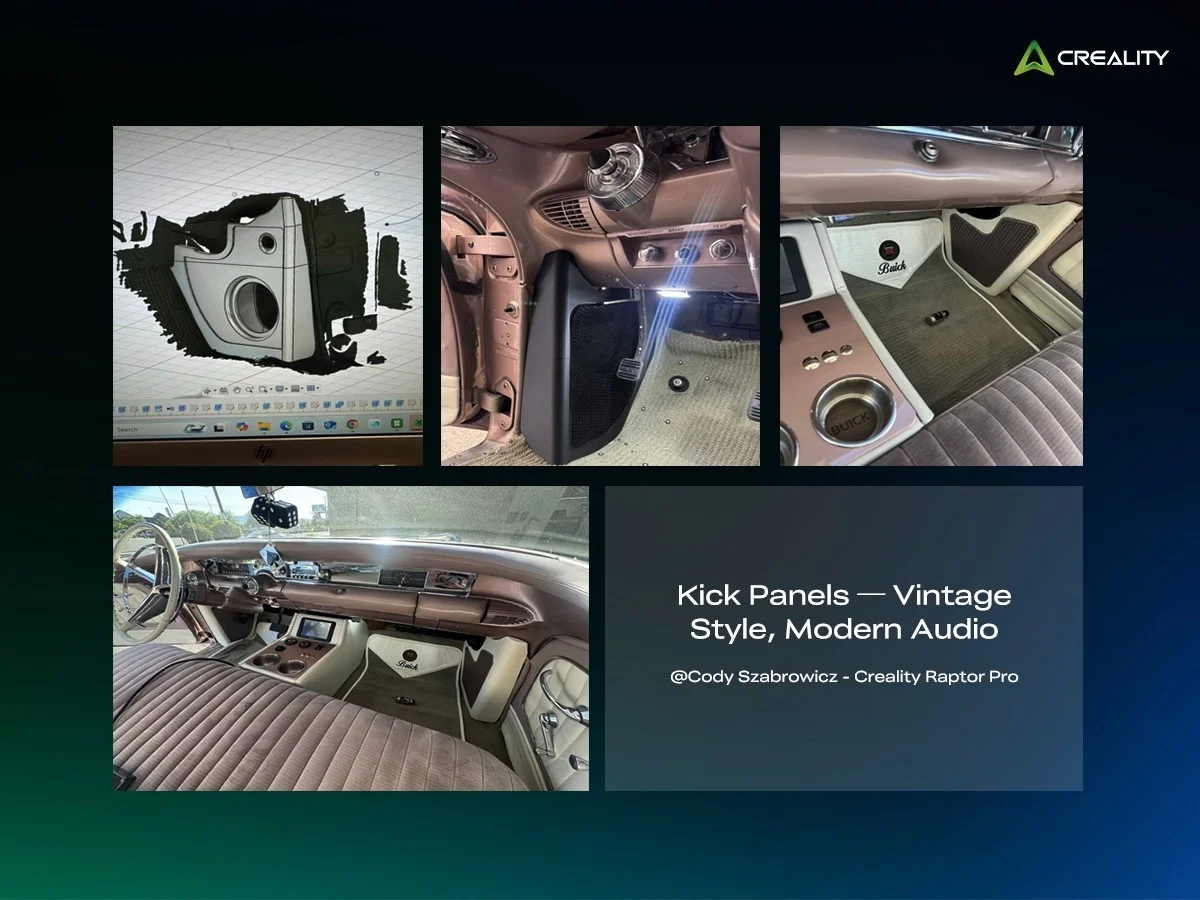

Case 02｜Custom Kick Panels: Bringing Acoustic and Visual Upgrades to a Vintage Buick
User Background & Upgrade Goal
Cody, an experienced vintage car builder, wanted to upgrade the acoustics and interior of a classic Buick without disturbing its original retro style. Using the Creality Raptor Pro to scan the entire vehicle, he designed fully custom kick panels that fit the footwell perfectly, accommodate larger speakers, improve coverage, and visually blend into the classic interior while bringing in a modern touch.
Solution Highlights
- Scanned the footwell area, interior surfaces, and mounting points with high accuracy
- Reconstructed the entire kick panel structure in CAD using scan data
- Created custom acrylic grills for improved airflow and retro-matching aesthetics
- Printed and wrapped the panels in ivory vinyl, then color-matched the grills
- Scan accuracy ensured each part clipped into place without cutting or altering the original structure
- Expanded the digital workflow to other areas: trunk panels, dashboard inserts, and more
Final Result
- Kick panels fit the vehicle’s contours perfectly
- Clean, unified appearance that complements the vintage interior
- Speaker placement significantly enhances soundstage fullness
- The interior achieves a beautiful balance of classic looks and modern craftsmanship
- User feedback: “Every part of this build started with a scan—the accuracy is unbelievable.”
Case 03｜Multi-Point Speaker Upgrade: OEM-Grade Customization from Rear Deck to A-Pillars
User Background
Sander is a meticulous OEM-style builder who demands perfect fitment and high-fidelity sound without compromising factory aesthetics. Using 3D scanning, he completed two highly detailed upgrades: a custom rear deck speaker grill and a set of Lexus LS430 A-pillar tweeter pods.

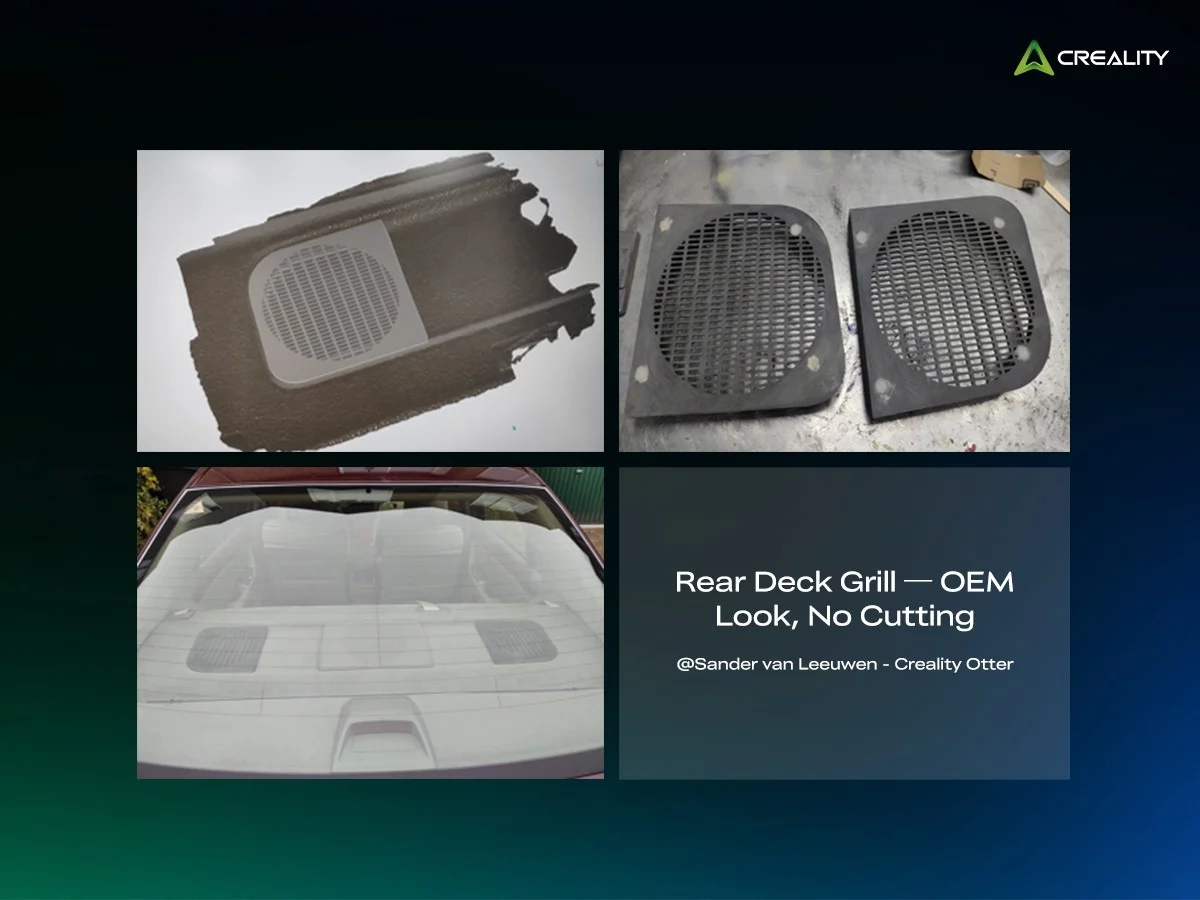

(1) Rear Deck Speaker Grill: OEM Look, Zero Signs of Modification
Upgrade Goal
Sander wanted to add new speakers to the rear deck while maintaining a 100% OEM appearance, recreating the original subwoofer grill design and producing a perfectly matched adapter for the metal mounting plate to ensure stability and eliminate rattles.
Solution Highlights
- Scanned the upper rear deck surface to capture all curves and edges
- Scanned the metal base underneath to create a perfectly matching adapter
- Reproduced the factory grill pattern exactly based on scan data
- Wrapped the finished grill in matching speaker cloth for seamless appearance
- Designed the structure to snap into place without cutting or altering the vehicle
Final Result
- Grill fits flush and looks indistinguishable from factory equipment
- Sound disperses naturally and evenly across the cabin
- Adapter mounts securely with zero resonance
- User feedback: “Exactly OEM. The adapters follow the shape perfectly.

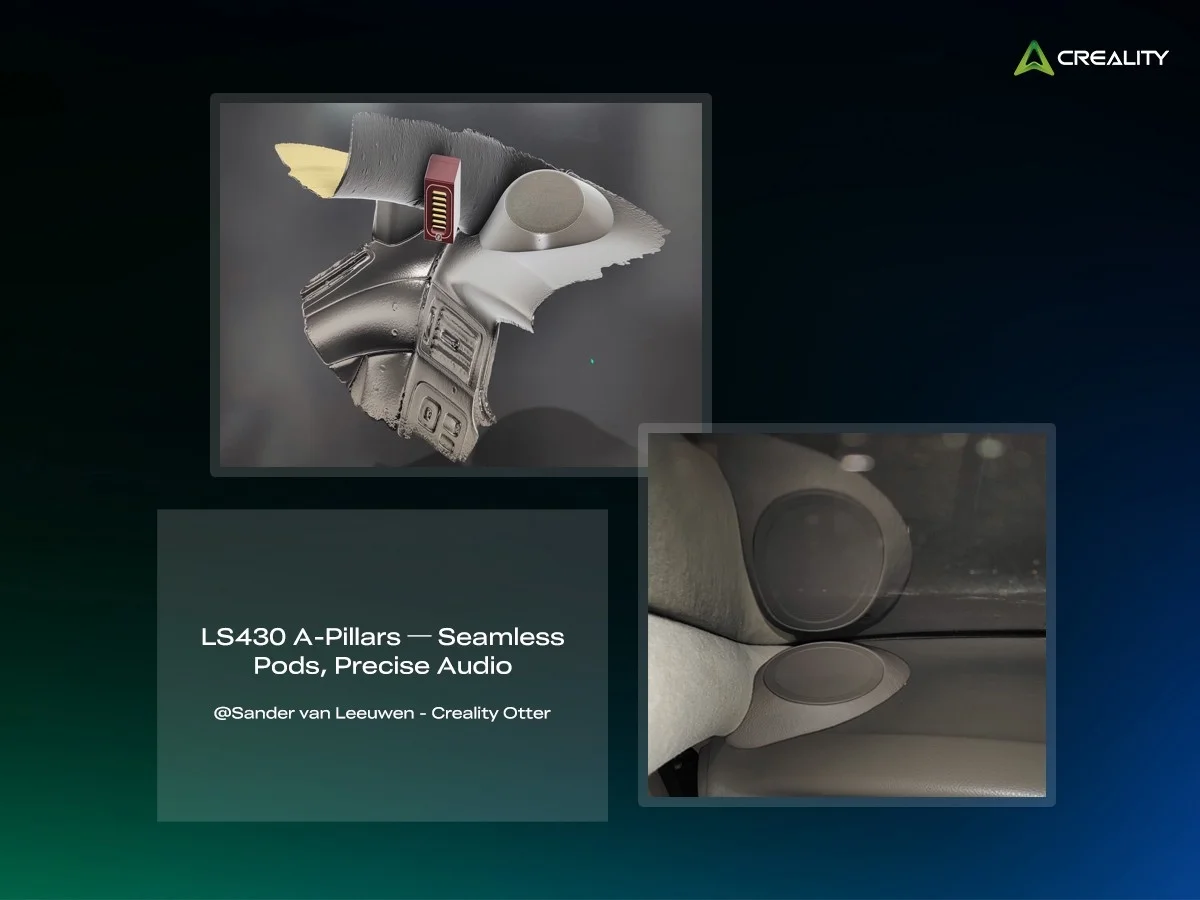

(2) Lexus LS430 A-Pillar Tweeter Pods: Natural Curves, Precise Acoustic Directionality
Upgrade Goal
For the LS430, Sander aimed to add a tweeter position that blends naturally into the A-pillar’s shape while providing proper acoustic direction and improving overall soundstage height.
Solution Highlights
- Scanned the entire A-pillar and dash intersection to capture real geometry
- Designed pods directly on the scan data for a smooth curvature transition
- Printed pods with OEM-like surface and texture
- Installed tweeters at the optimal angle for clearer, more layered high frequencies
Final Result
- The pods visually merge into the A-pillar with a factory-like finish
- Soundstage becomes more open and detailed
- Structure remains stable with no added wind noise or vibration
Conclusion: 3D Scanning Is Bringing Car Audio Upgrades Into the Data-Driven Era
From a first-time hobbyist to seasoned builders, these three cases show one thing clearly— 3D scanning is becoming a core tool in modern car audio upgrades. It makes modifications:
✓ More accurate — perfect curvature matching
✓ More efficient — fewer test fits, fewer mistakes
✓ More beautiful — factory-grade appearance
✓ More professional — stable, durable, and fully repeatable
