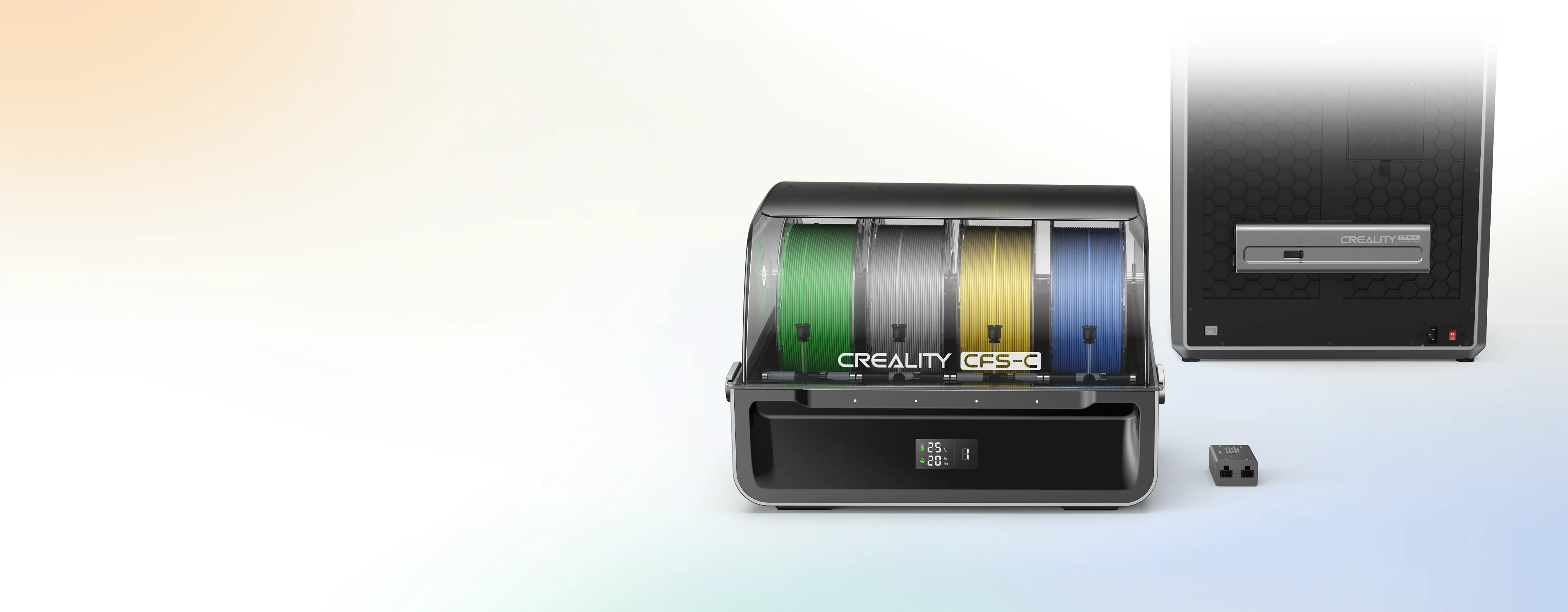

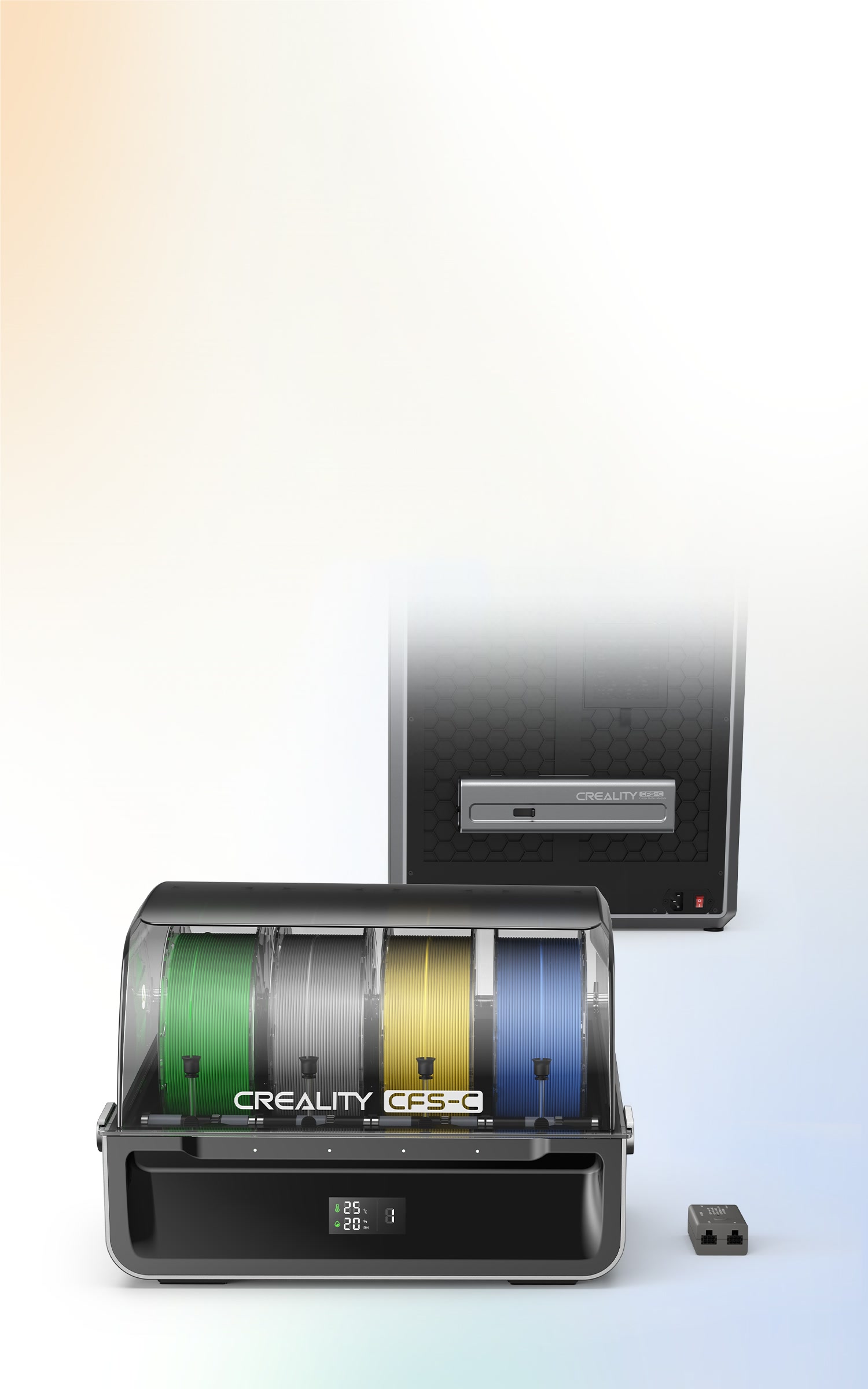

CFS-C (Creality Filament System)
Colorful. Magical.
Compatible with Previous ModelsSmart Filament Management

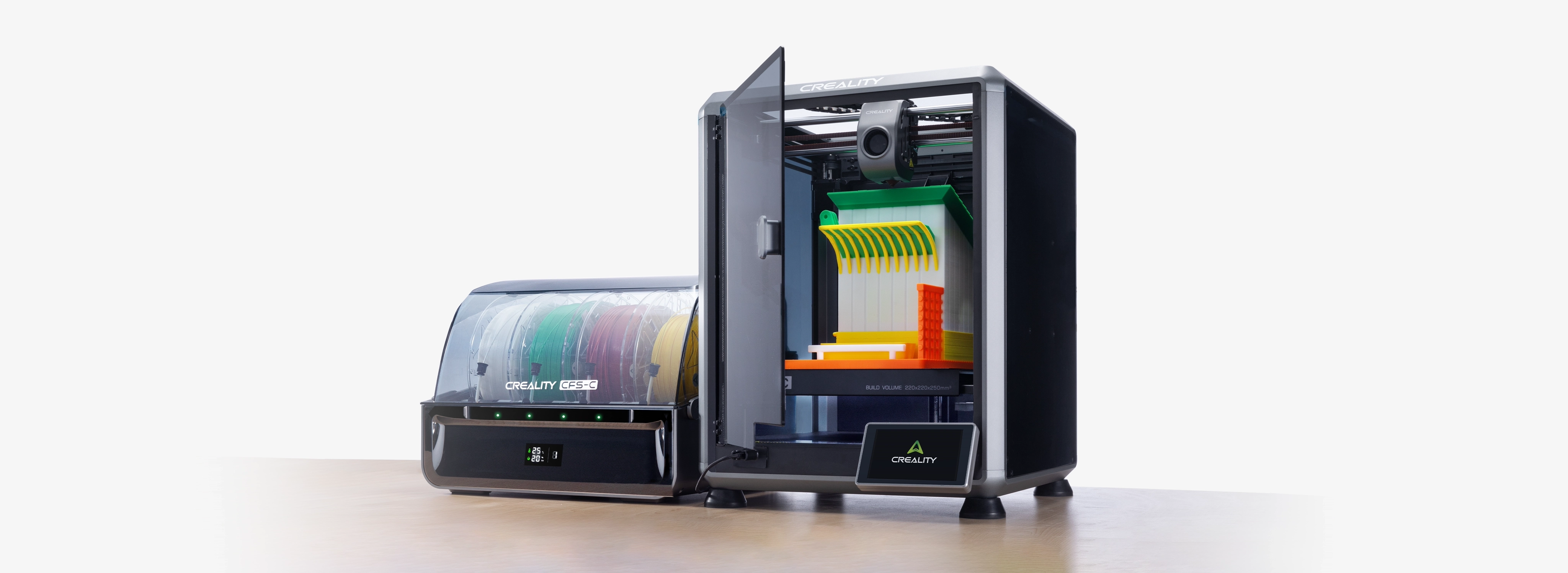

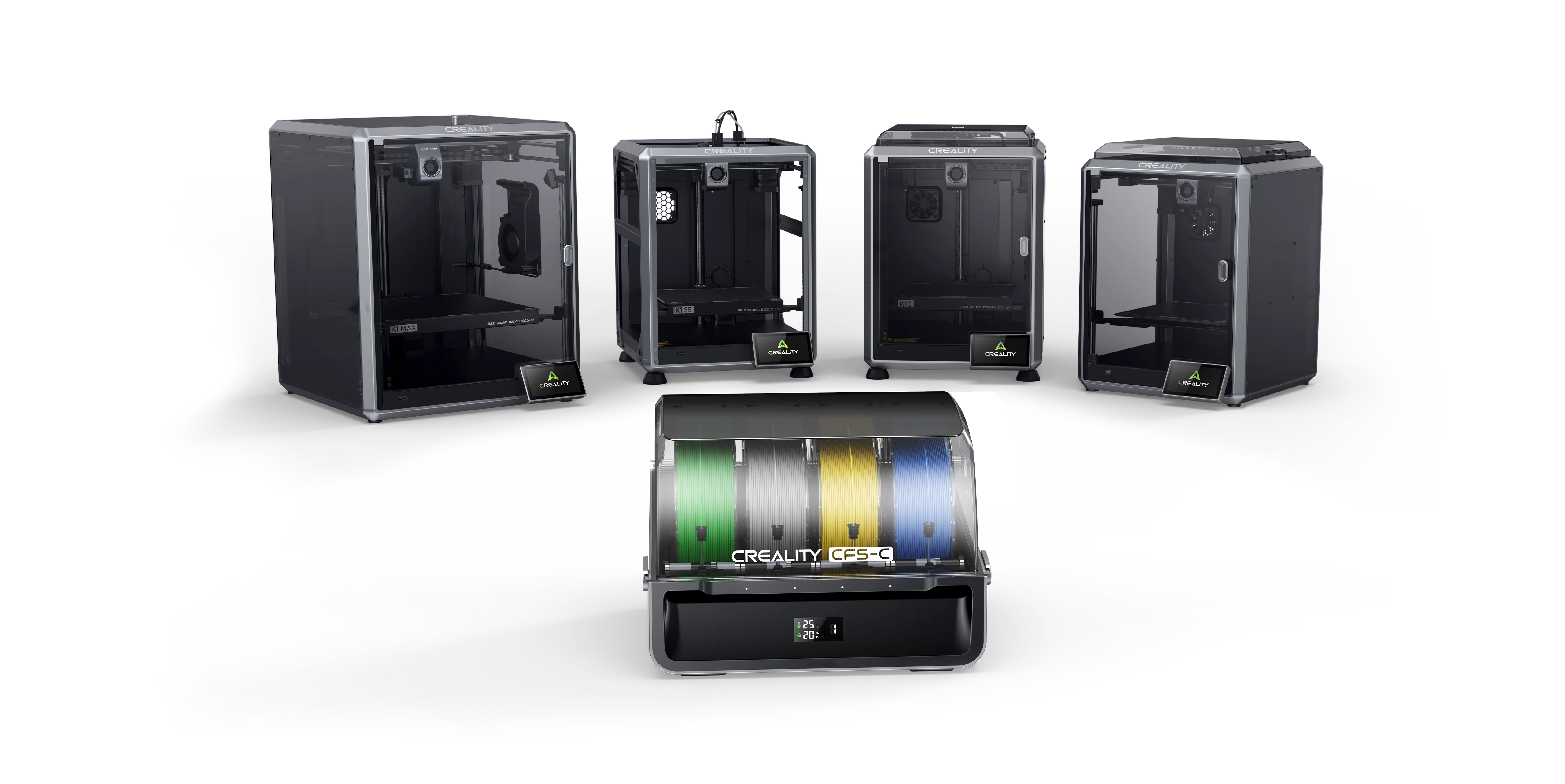

CFS-C Compatibility
K1 Max 2025K1C 2025K1 MaxK1CK1K1 SE

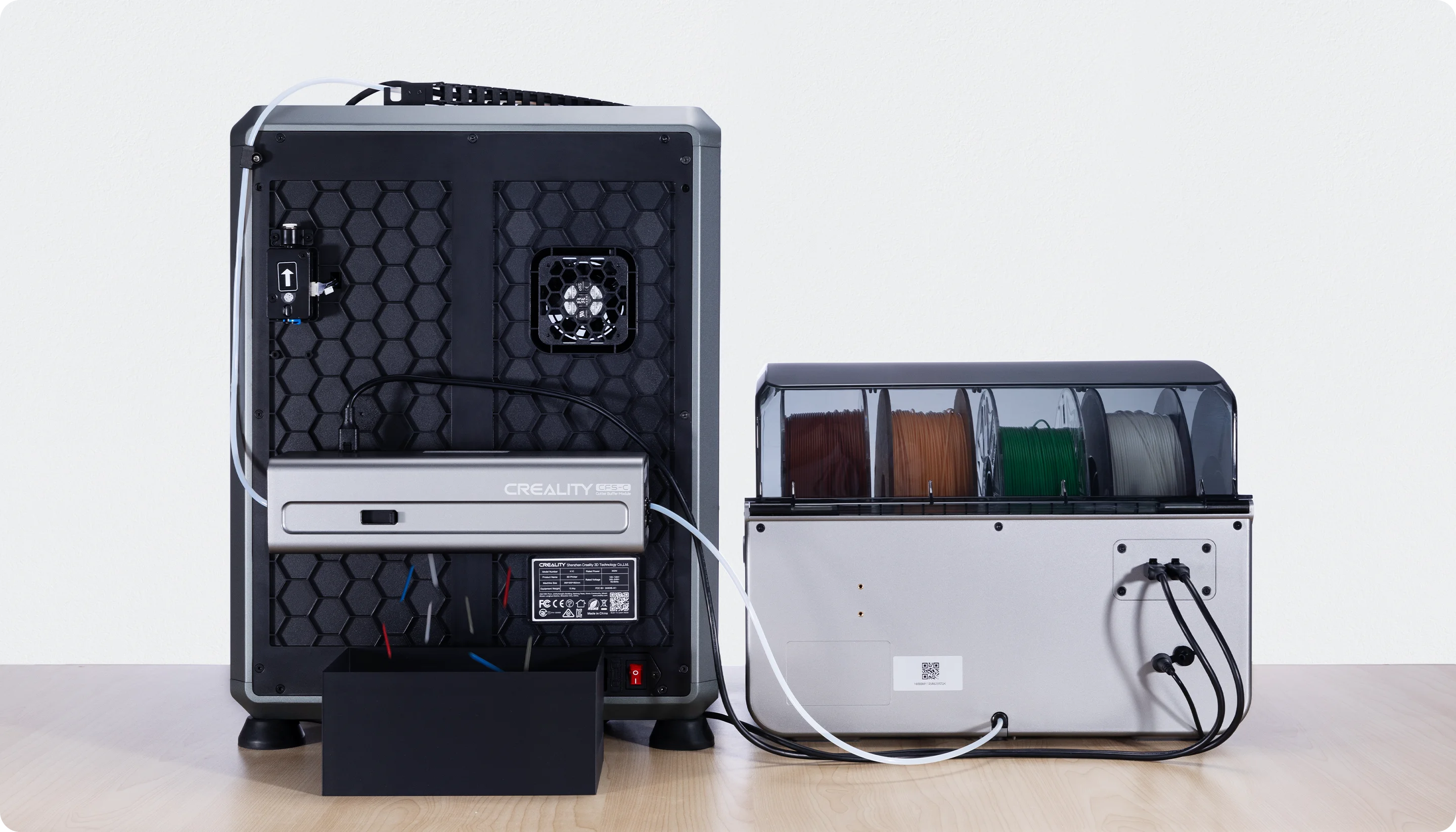

External Cutter & BufferEasy Upgrade to MulticolorAdd multicolor printing to earlier models with
a firmware update without
radical hardware
modification. The external cutter & buffer is simple
to install
— without fiddling with the toolhead
— a safe and elegant multicolor solution.
a firmware update without
radical hardware
modification. The external cutter & buffer is simple
to install
— without fiddling with the toolhead
— a safe and elegant multicolor solution.

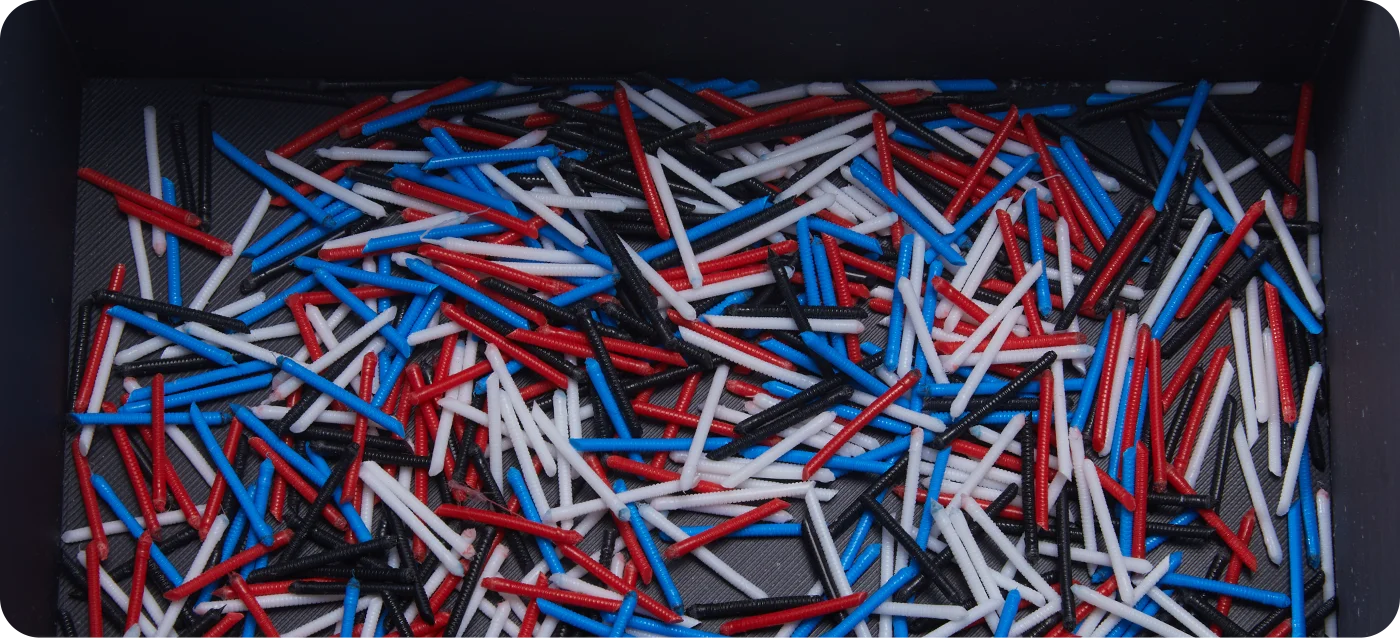

Minimal Waste. Neat State.External Waste CollectionFilament waste is collected through an external route
— super easy to tidy up filament swaps.
— super easy to tidy up filament swaps.
CFS-C
Others

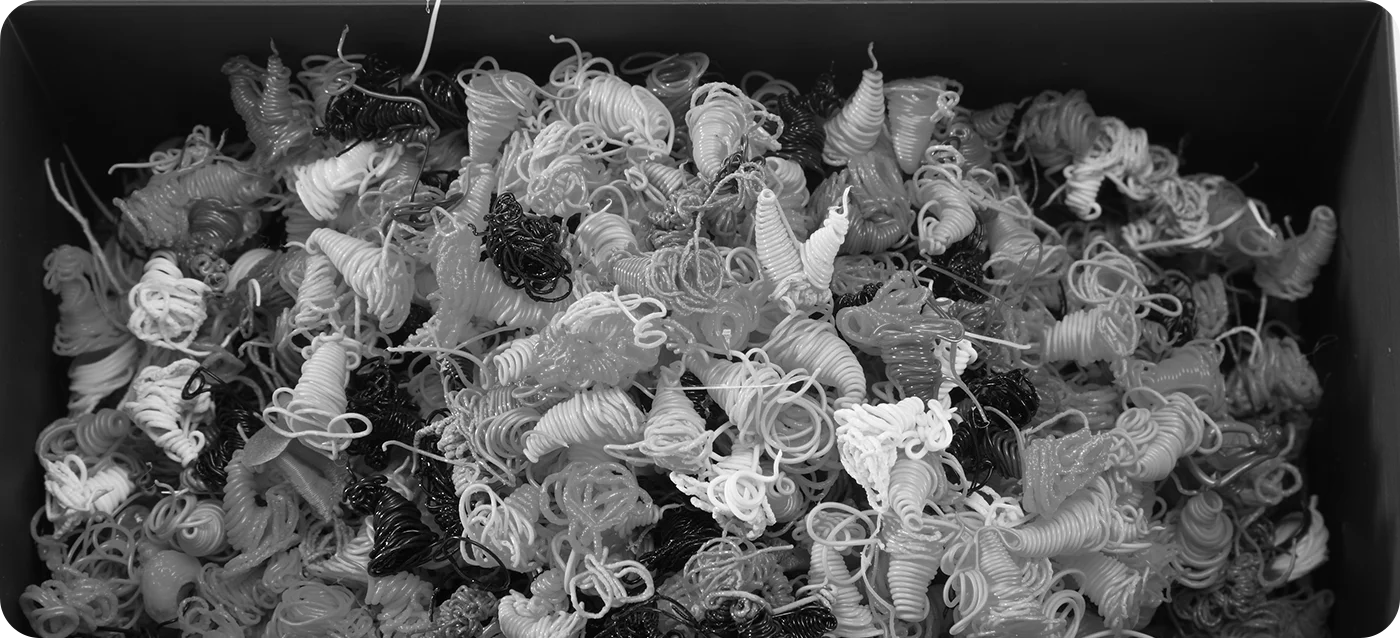

No Filament PurgesNo purging needed.
No filament debris inside the printer
— keeping your 3D printer neat and tidy.
No filament debris inside the printer
— keeping your 3D printer neat and tidy.

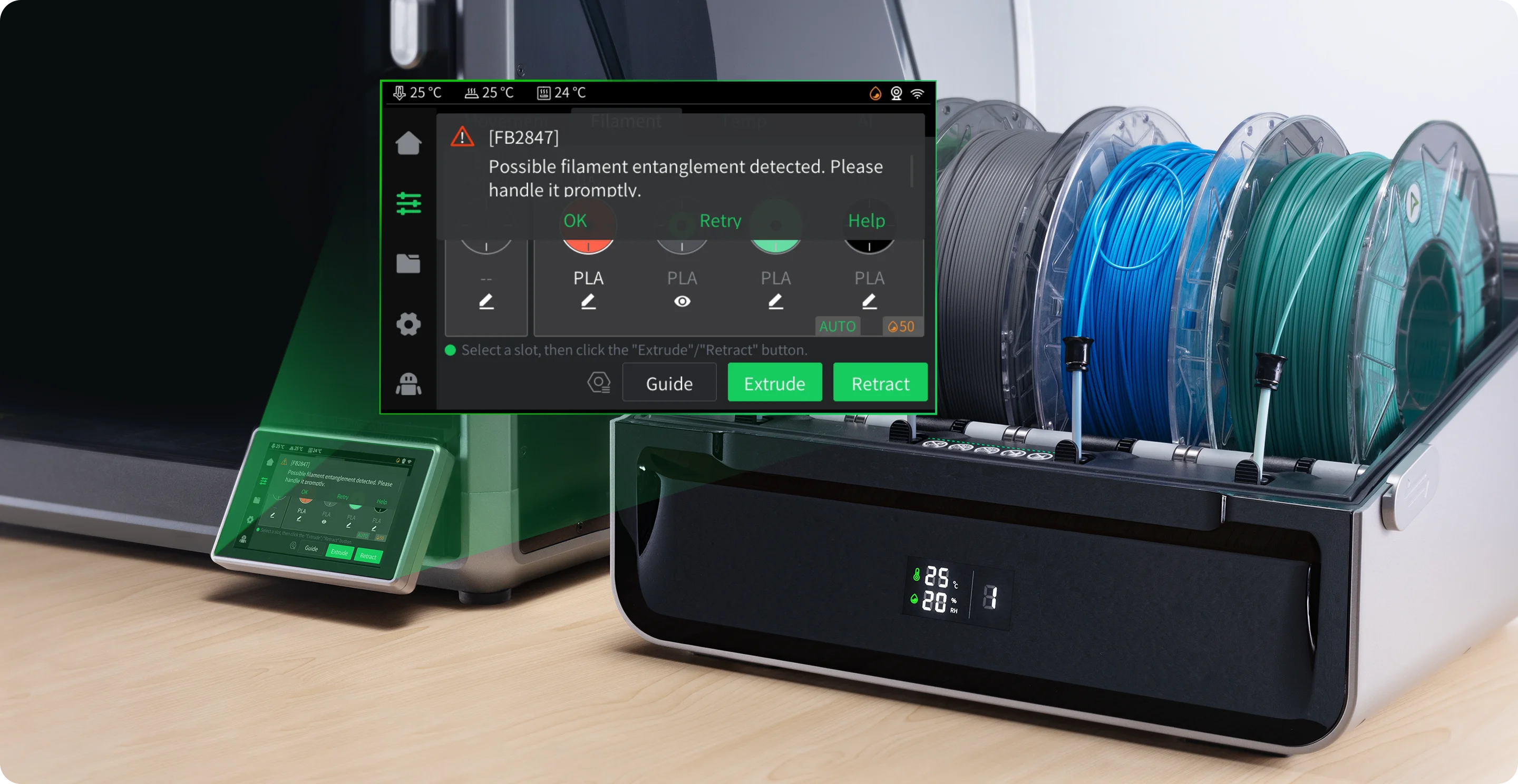

Smart Sensors Built-inFilament Run-out/Tangle DetectionThe status of each spool of filament is closely
monitored with sensors.
When a filament runs out,
breaks, or gets tangled, it will pause printing
and notify you to take action.
monitored with sensors.
When a filament runs out,
breaks, or gets tangled, it will pause printing
and notify you to take action.

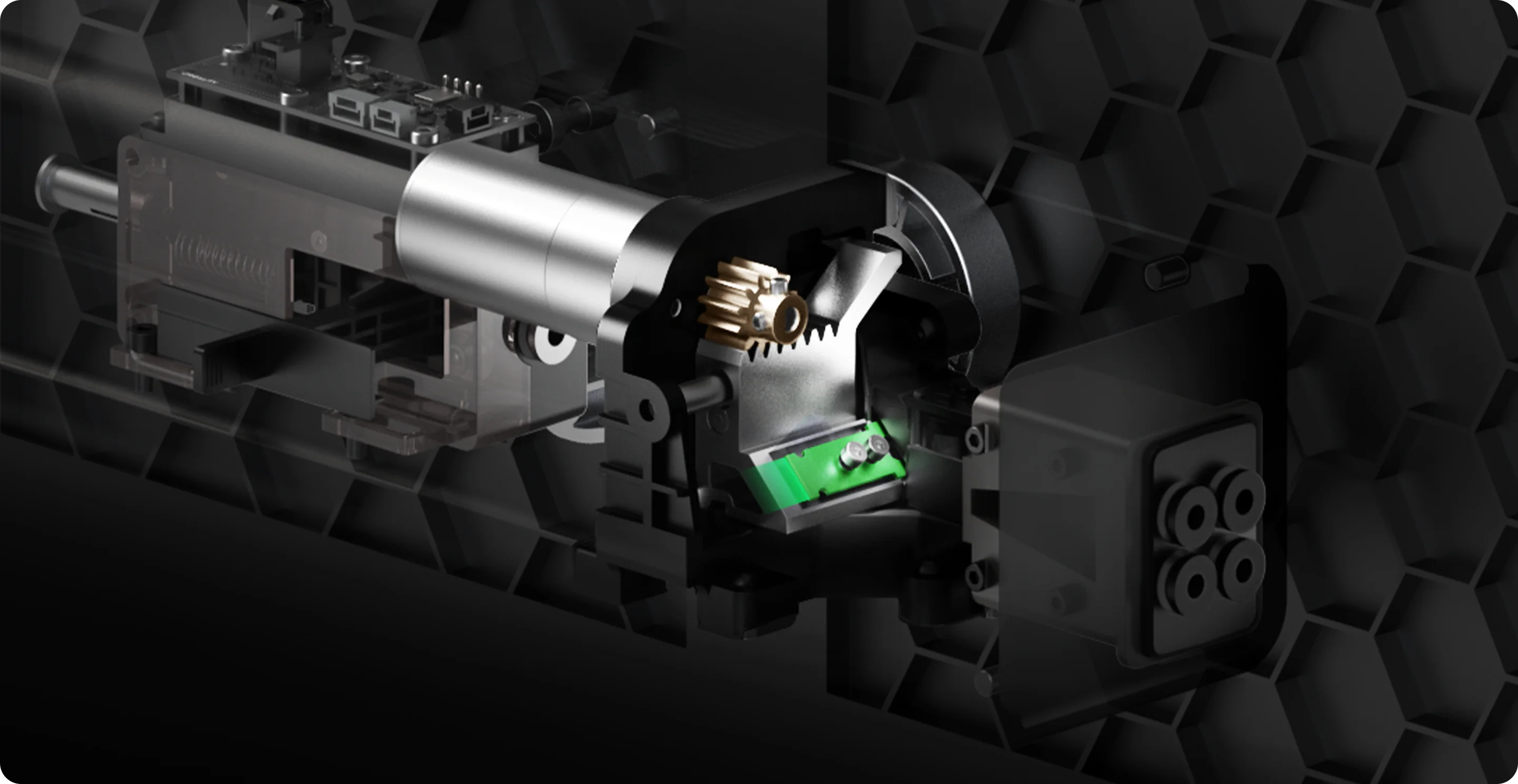

Cutter Wear MonitoringCFS-C tracks cutter wear in real time
and alerts you once it reaches
the preset threshold for replacement.
and alerts you once it reaches
the preset threshold for replacement.

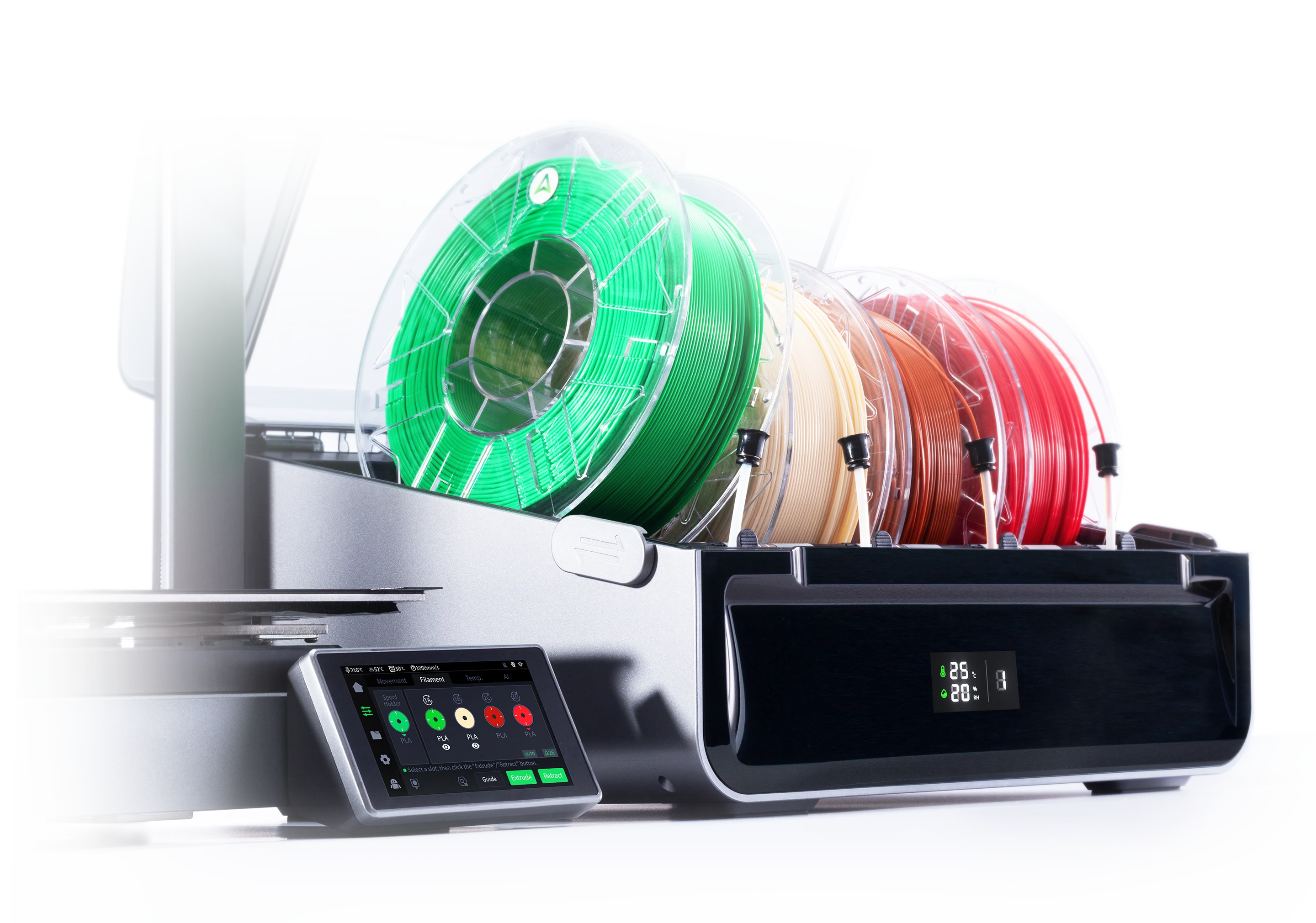

Smart Filament ManagementAuto Filament IdentificationWhen using Creality RFID filaments,
CFS-C will automatically read
the
filament info and printing presets
— no manual editing needed.
CFS-C will automatically read
the
filament info and printing presets
— no manual editing needed.
Auto Color MappingFor multicolor printing, if a spool runs out, CFS-C will
automatically
relay printing with another filament
of the same material type and color,
or you can
opt to complete with a different color.
automatically
relay printing with another filament
of the same material type and color,
or you can
opt to complete with a different color.
CFS-C SPECIFICATIONS
Product
CFS-C
Product Dimensions
379 x 314 x 276 mm
Net Weight
4.56 kg
Number of Filament Slots
4
Drying Method
Desiccant
Filament Buffer
IN x 4 & OUT x 1
Multiple CFS-C Units
Not supported
Auto Filament
Identification
Identification
Yes with Creality RFID
filaments
filaments
Filament Diameter
1.75±0.05 mm
Compatible Models
K1 Max 2025 / K1C 2025
/ K1 Max / K1C / K1 / K1 SE
/ K1 Max / K1C / K1 / K1 SE
Port
CAN
Power Supply
DC 24V
Rated Power
30W
Status Indicator
Indicator light (white/red) x 4
Display Screen
Segment LCD displaying
real-time temperature & humidity
real-time temperature & humidity
Filament Spool
Compatibility
Compatibility
1 kg filament spool;
diameter: 197-202 mm,
thickness: 42-68 mm
diameter: 197-202 mm,
thickness: 42-68 mm
Compatible Filaments
Hyper PLA, CR-PLA, CR-Silk. Compatibility with
more filaments
via firmware update
more filaments
via firmware update
Auto Filament Relay
Yes
The product is constantly improved, so the actual item may vary from images.
