HALOT-X1
Buy Now
Creality Halot X1Scale Perfection,
Simple Start.Watch Video
Simple Start.Watch Video

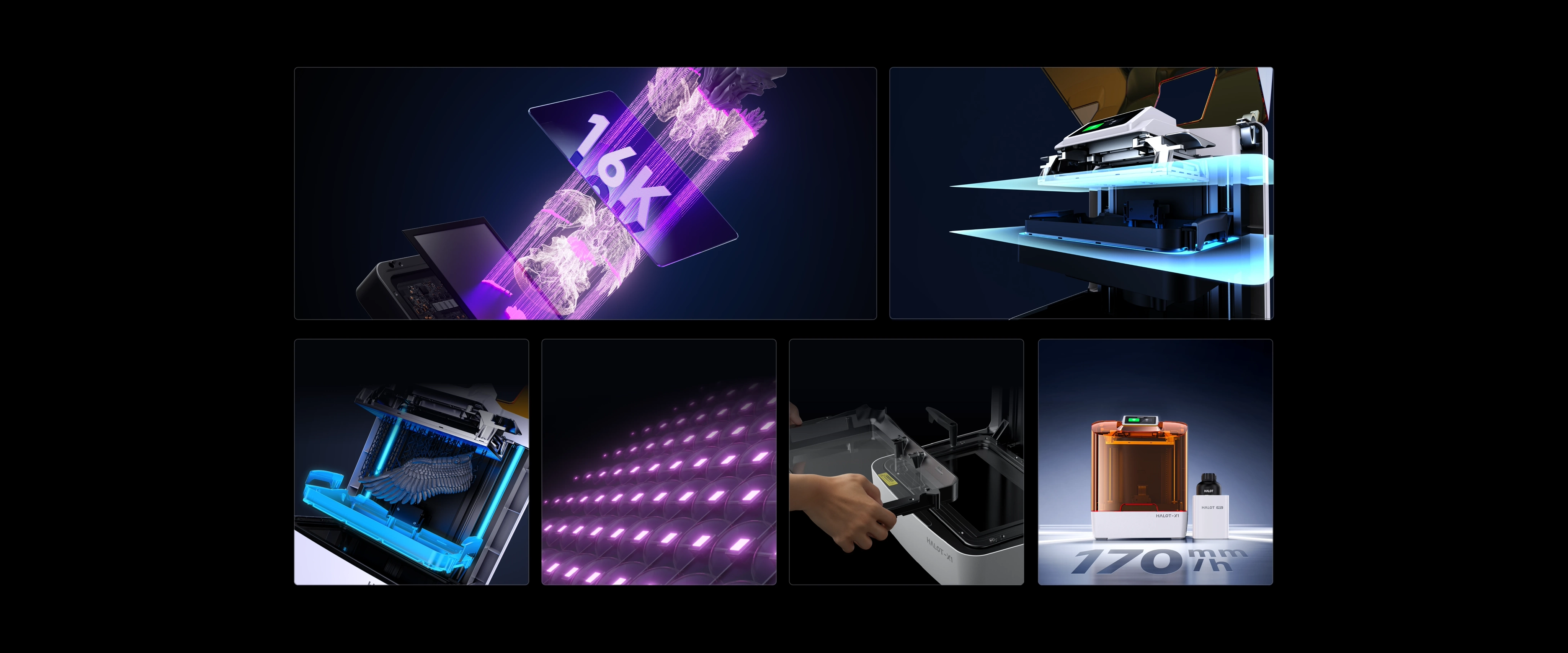

16K Mono LCD
True Leveling-Free
New Motion
Structure
Structure
92 Light Zones
Intelligent
Exposure
Intelligent
Exposure
Quick-Release
Resin Vat
Resin Vat
3X Faster
Printing Speed
Printing Speed

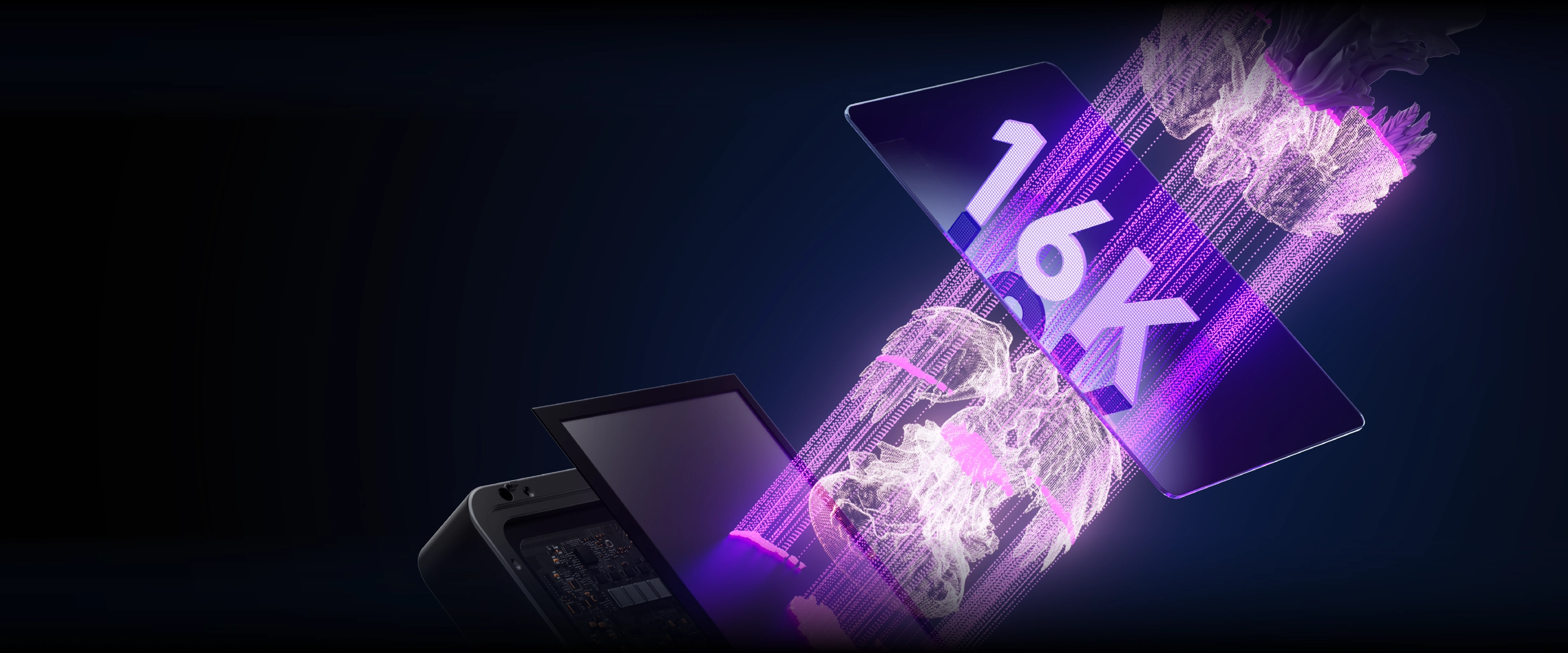

10.1-inch 16K Mono LCDExperience jaw-dropping detail and clarity
with
the 10.1-inch 16K Mono LCD screen,
boasting a resolution
of 15120x6230 and a
pixel size of just 14x19μm.
with
the 10.1-inch 16K Mono LCD screen,
boasting a resolution
of 15120x6230 and a
pixel size of just 14x19μm.

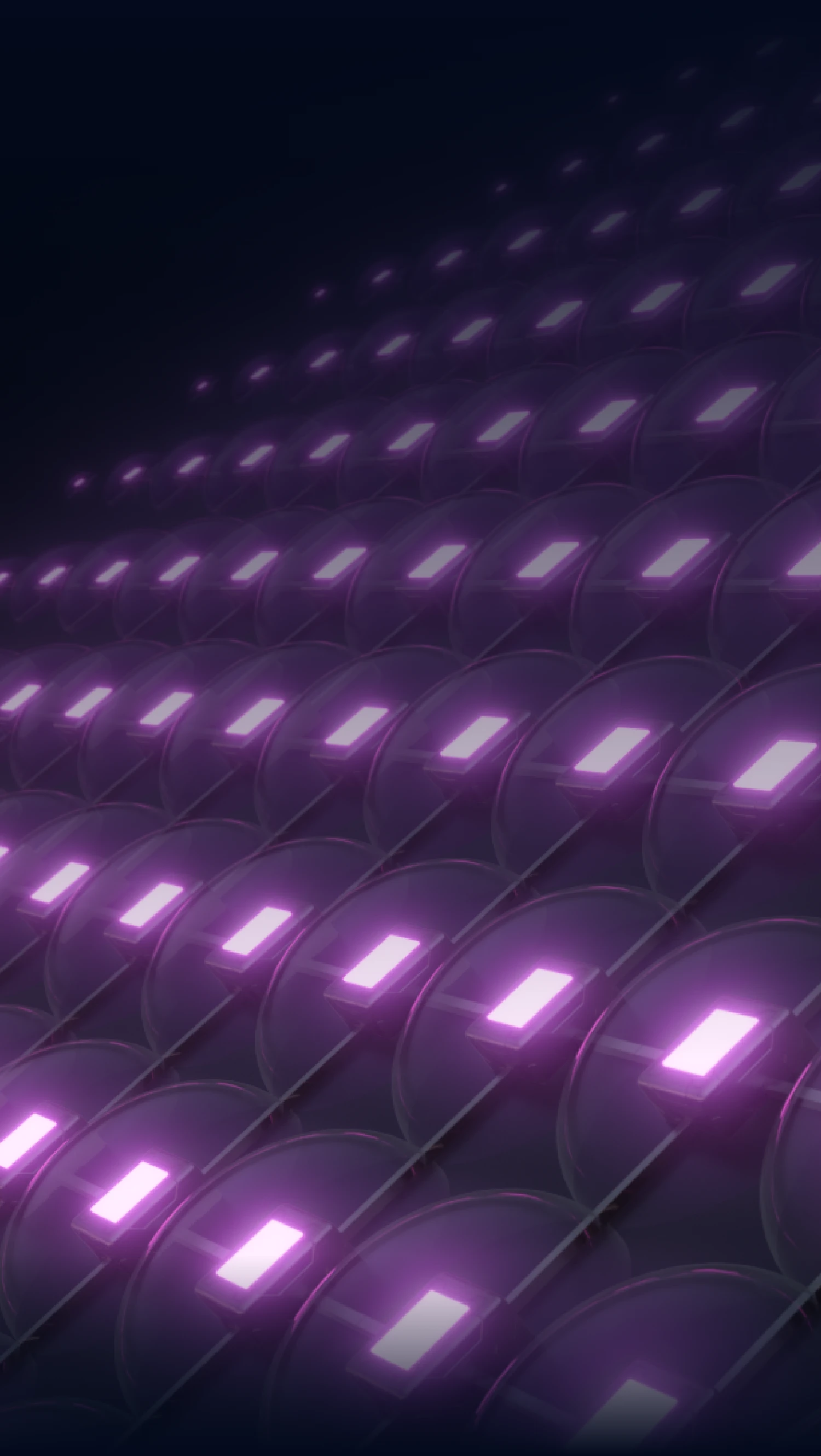

Intelligent ExposureThe HALOT-X1 uses 92-zone Intelligent
Exposure to
activate light only where it's
needed. This saves energy,
boosts accuracy,
and extends your screen's life—
so your
prints stay consistent and your equipment
lasts longer.
Exposure to
activate light only where it's
needed. This saves energy,
boosts accuracy,
and extends your screen's life—
so your
prints stay consistent and your equipment
lasts longer.

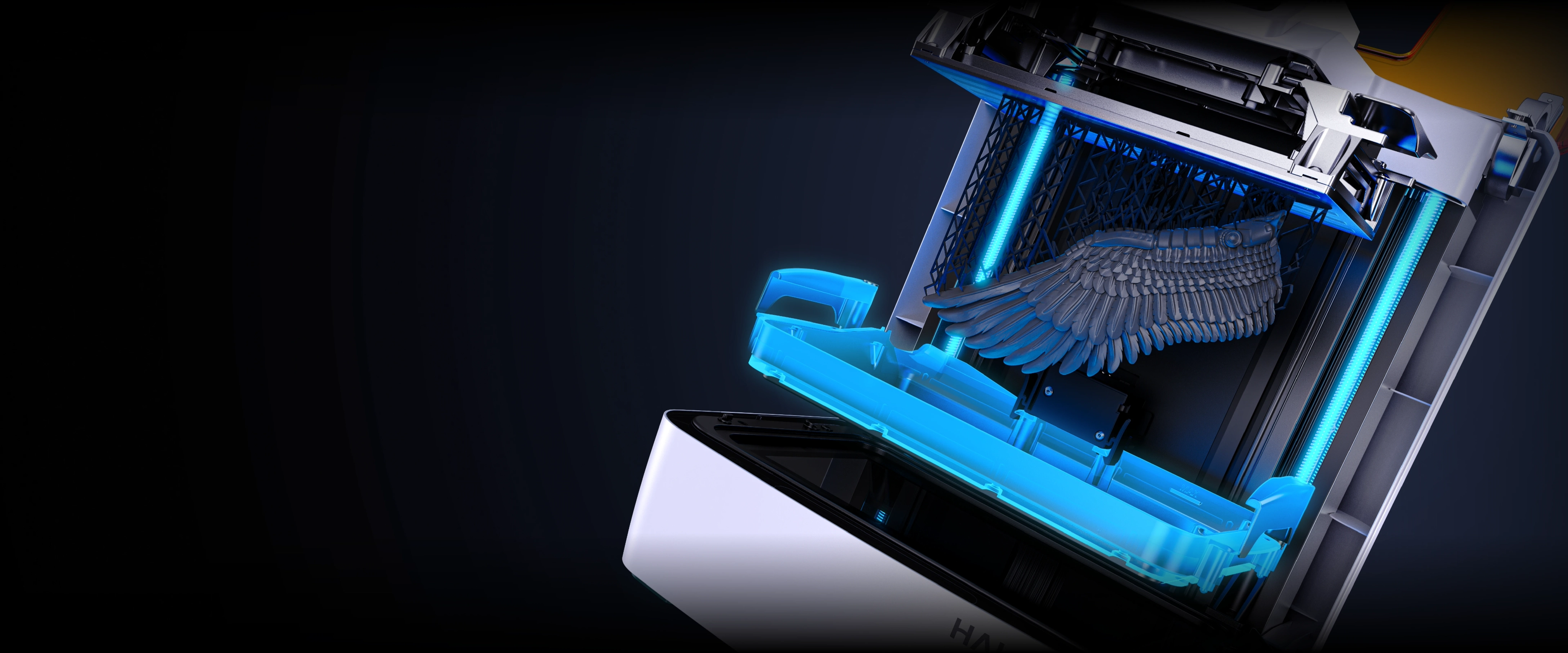

Enhanced

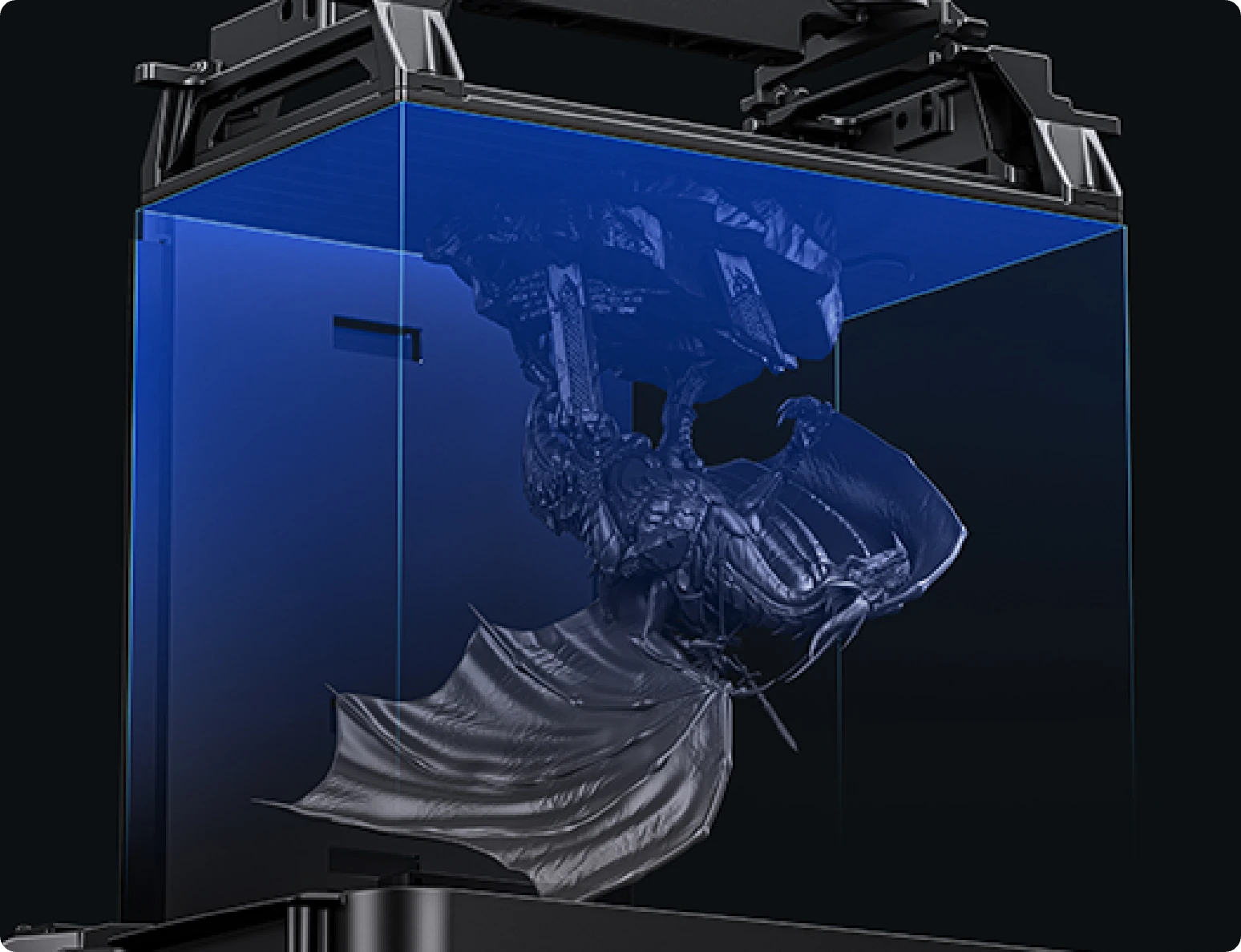

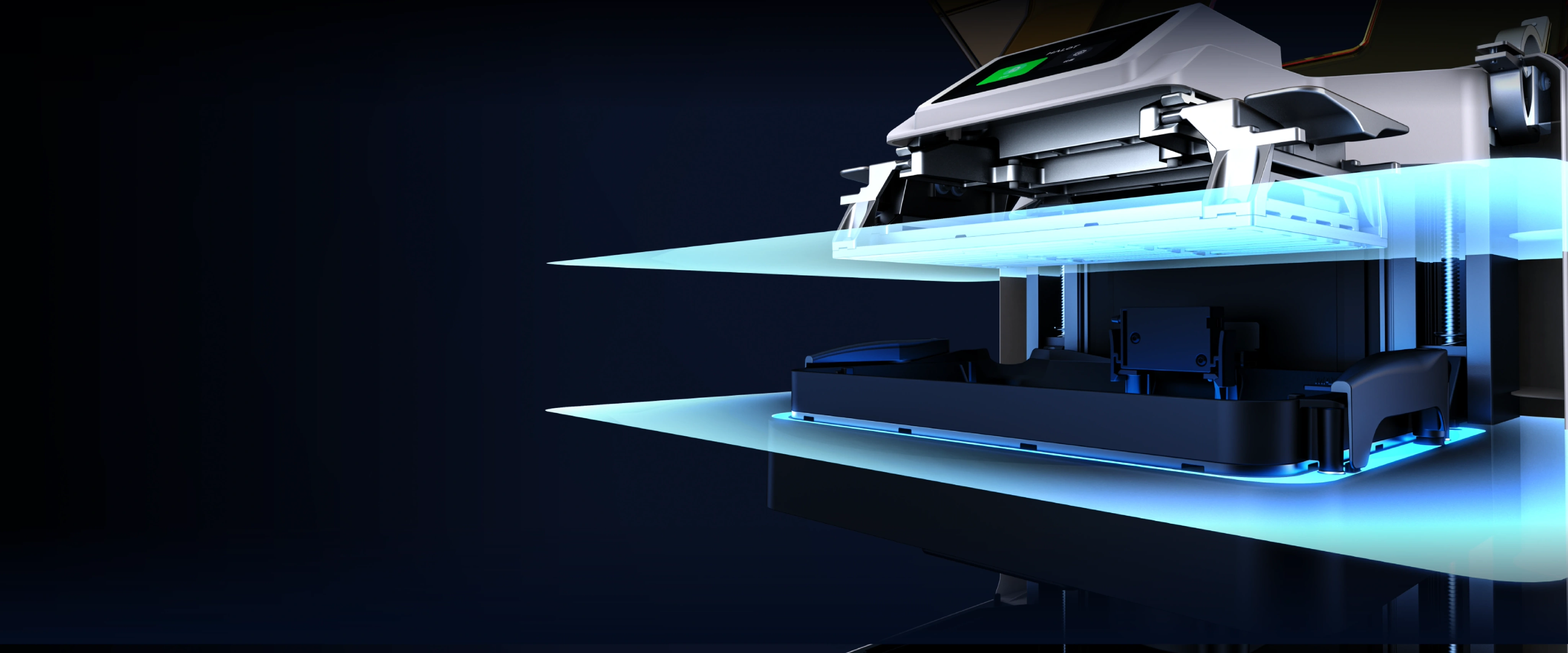

Stability and PrecisionWith HALOT-X1's innovative top-down motion
system, the resin vat
and light source move
while the build plate stays still—unlike
traditional
printers. Dual linear rails and lead
screws stabilize every layer.
That means
smoother prints and fewer surprises.
Stability and PrecisionWith HALOT-X1's innovative top-down motion
system, the resin vat
and light source move
while the build plate stays still—unlike
traditional
printers. Dual linear rails and lead
screws stabilize every layer.
That means
smoother prints and fewer surprises.

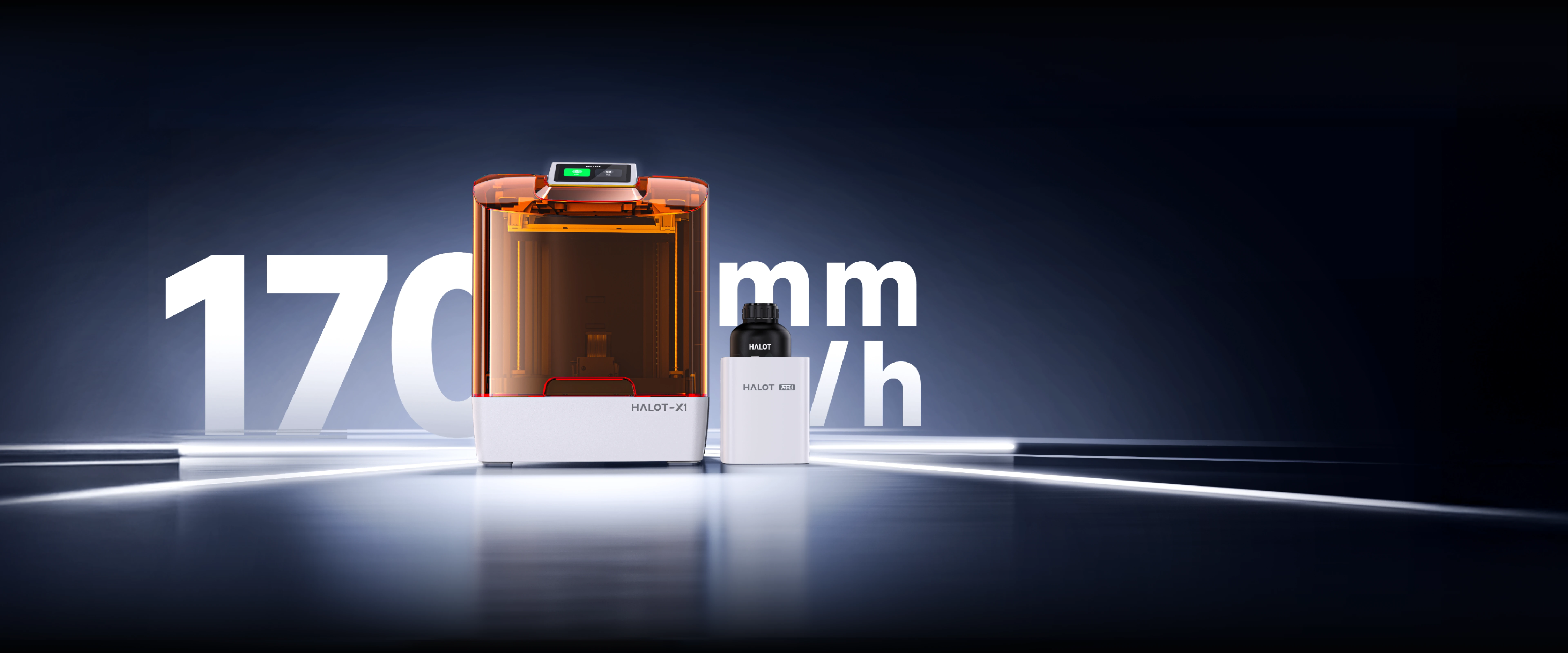

Faster Printing
SpeedHALOT-X1 supports a blazing-fast maximum
print speed of 170mm/h. Whether you're
iterating prototypes or delivering batch
production, you'll print more in less time—
without sacrificing quality.
SpeedHALOT-X1 supports a blazing-fast maximum
print speed of 170mm/h. Whether you're
iterating prototypes or delivering batch
production, you'll print more in less time—
without sacrificing quality.
1 Hour Printing Test

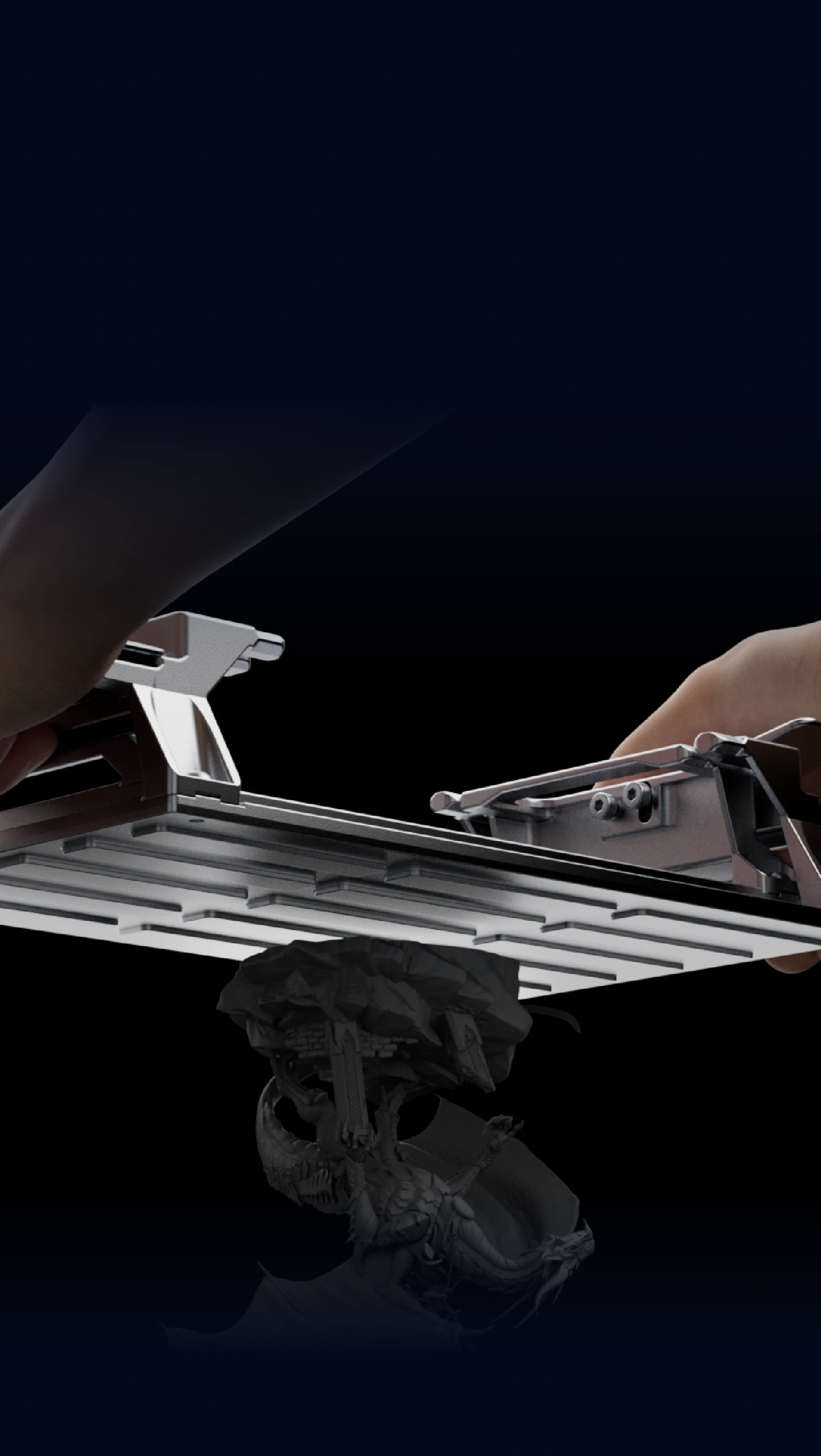

User-Friendly DesignNo more worrying about damaging delicate
prints by manually scraping models.
Simply twist the
handles on either side of
the build plate bracket to
pop out the
quick-release bar, then
easily push the
finished models off.
prints by manually scraping models.
Simply twist the
handles on either side of
the build plate bracket to
pop out the
quick-release bar, then
easily push the
finished models off.
True Leveling-FreeSay goodbye to time-consuming leveling
calibration.
HALOT-X1 arrives pre-leveled with a
innovative build plate—
no calibration
needed. Just unpack, load resin,
and start printing.
calibration.
HALOT-X1 arrives pre-leveled with a
innovative build plate—
no calibration
needed. Just unpack, load resin,
and start printing.

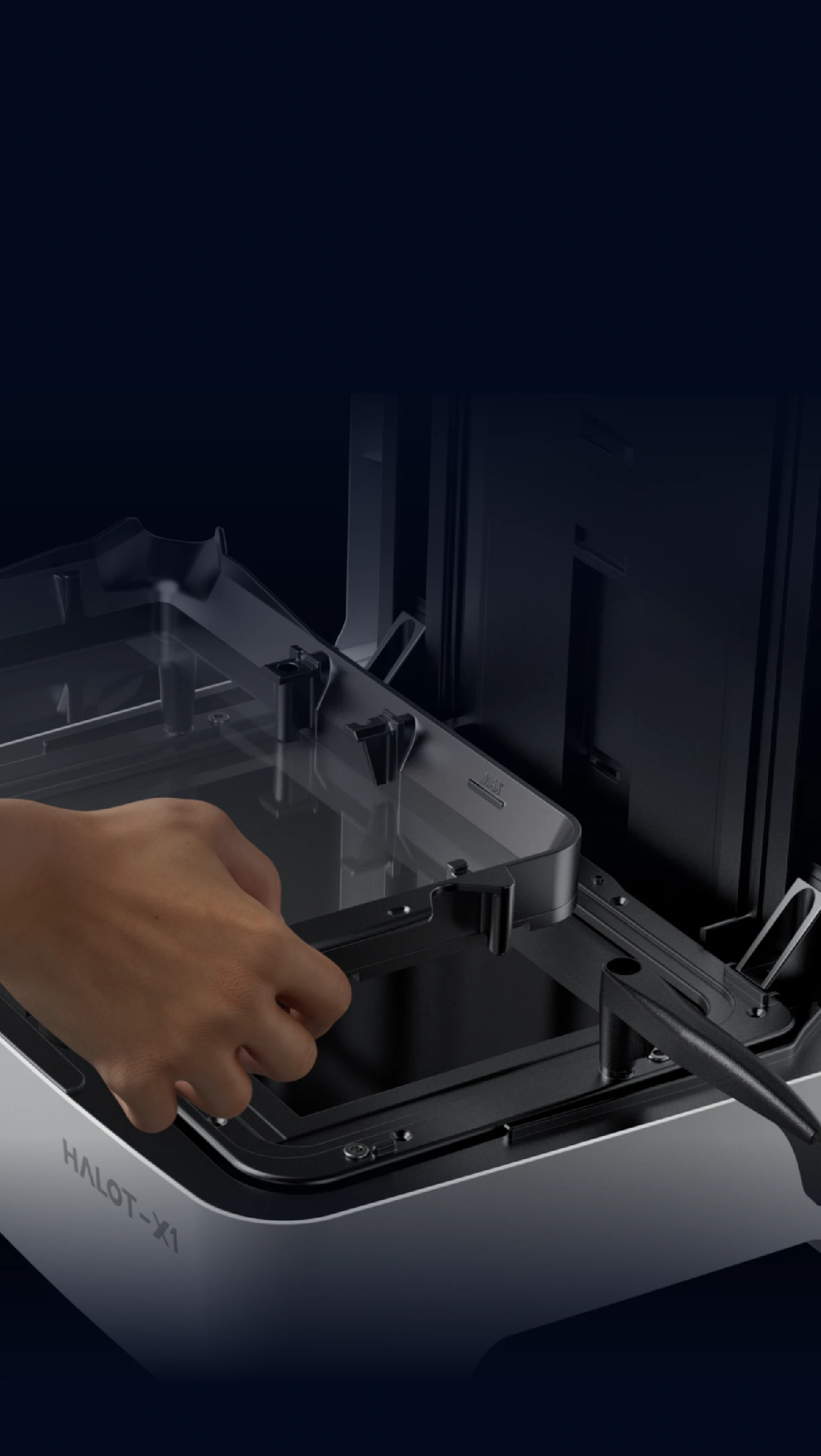

Quick-Release Resin VatRemoving delicate prints without damage
can be stressful.
HALOT-X1's quick-release
build plate makes it simple—just twist
the handles and harvest your prints with ease.
No scraping,
no broken parts—just clean,
safe removal every time.
can be stressful.
HALOT-X1's quick-release
build plate makes it simple—just twist
the handles and harvest your prints with ease.
No scraping,
no broken parts—just clean,
safe removal every time.

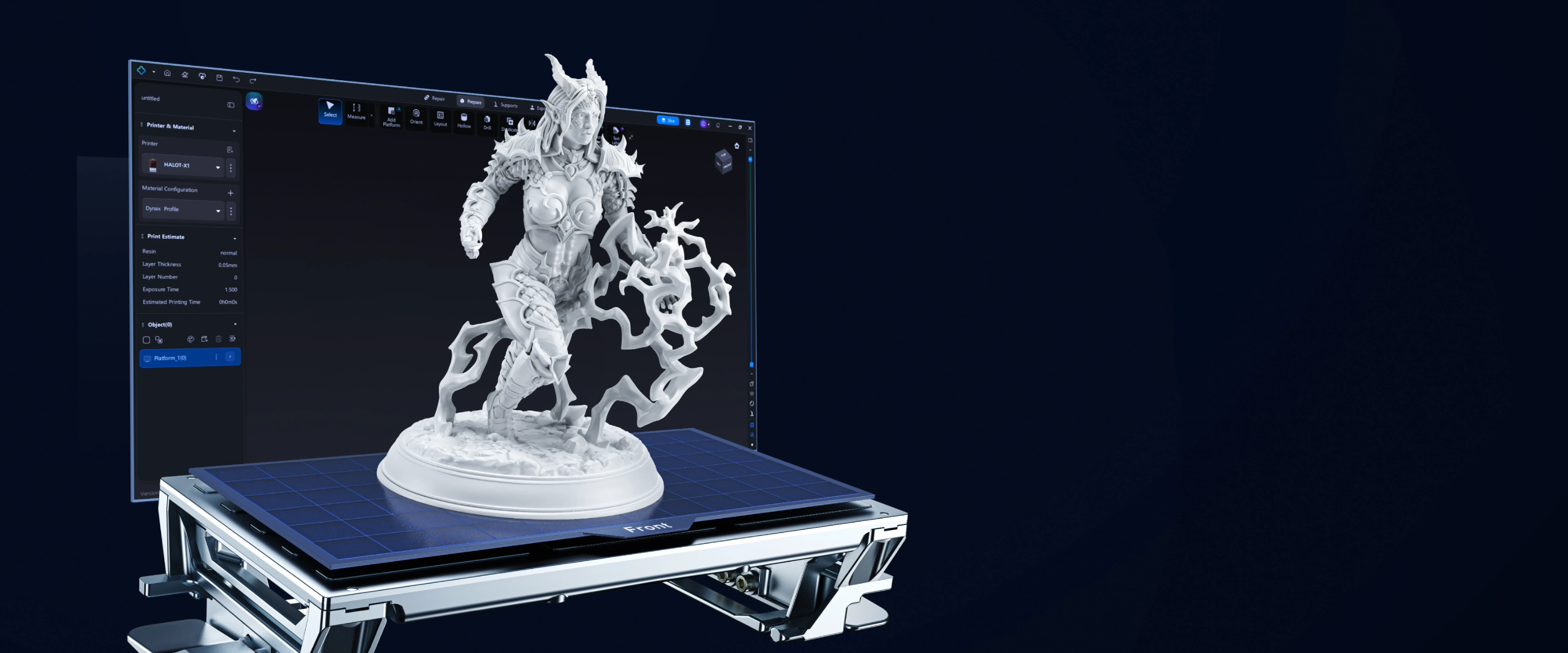

CHITUBOX ProModel preparation shouldn't slow you down.
That's why HALOT-X1 includes a 3-month
CHITUBOX Pro subscription (a $42 value).
Known for its power and ease of use,
CHITUBOX Pro helps you slice faster
and smarter
-whether
you're a beginner or a seasoned maker.
That's why HALOT-X1 includes a 3-month
CHITUBOX Pro subscription (a $42 value).
Known for its power and ease of use,
CHITUBOX Pro helps you slice faster
and smarter
-whether
you're a beginner or a seasoned maker.

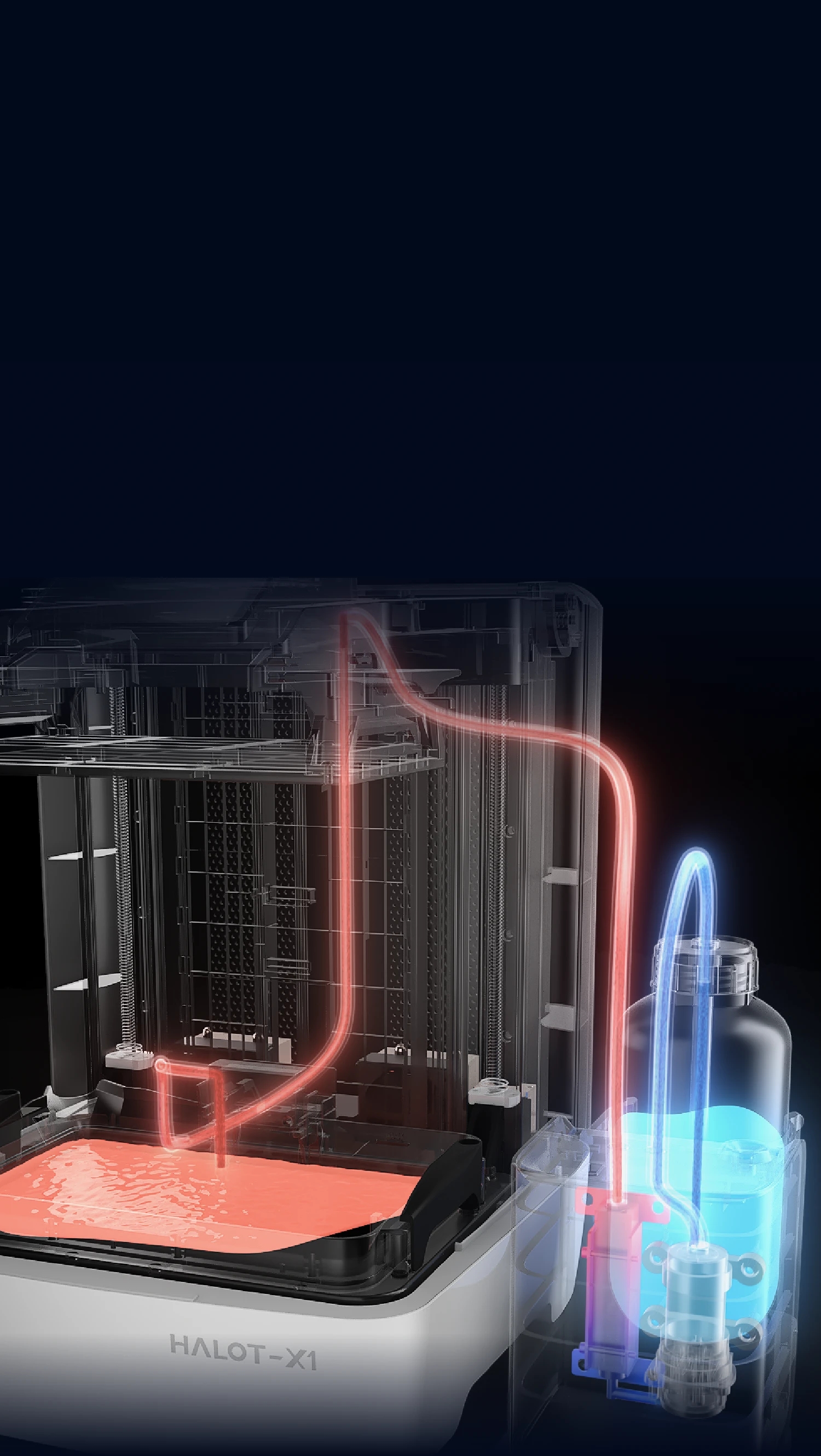

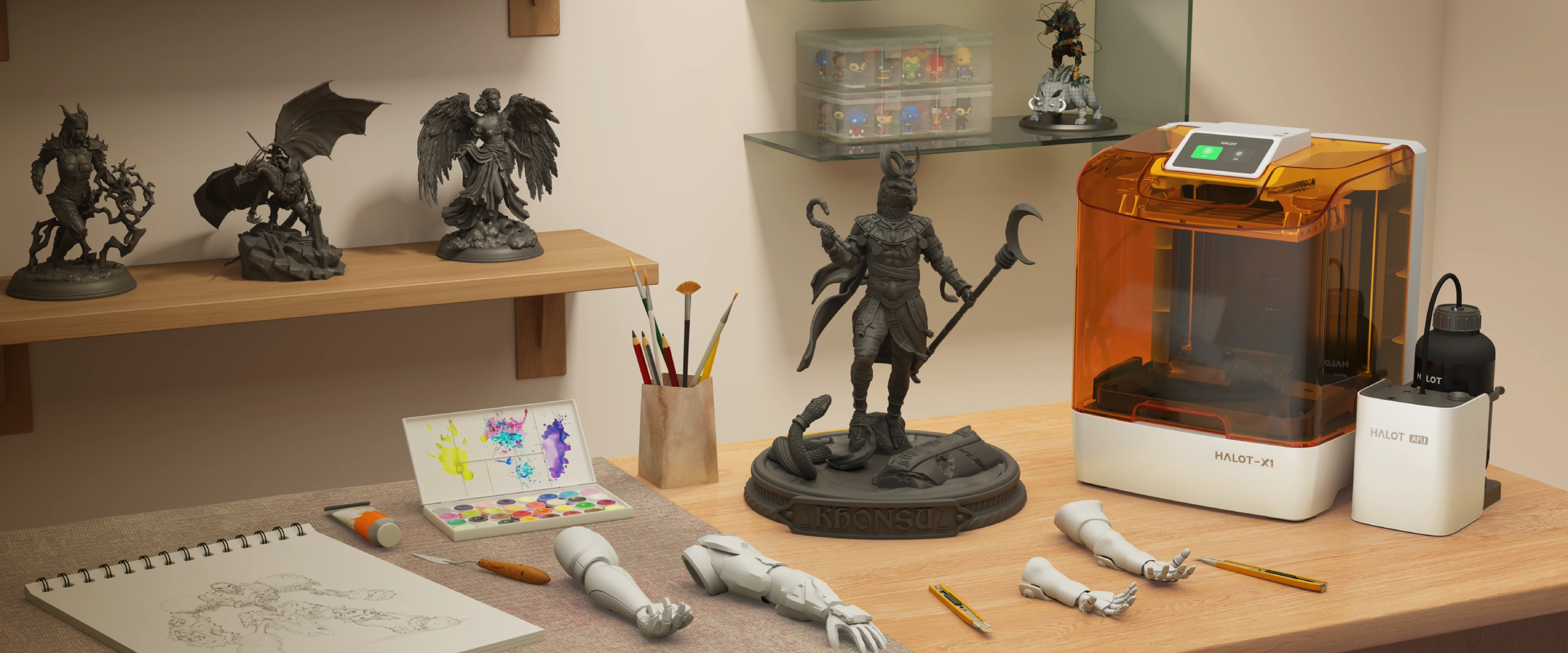

Smart AFU Resin
Management SystemHALOT-X1's all-in-one AFU resin management
system takes
the hassle out of resin 3D
printing. It features automatic resin feeding,
real-time level and weight monitoring,
RFID-based parameter loading, and fast,
even resin heating (30–35℃)—all working
together to ensure efficient use,
consistent quality, and a smoother workflow
from start to finish.
Automatic Material
Feed In & Feed Out

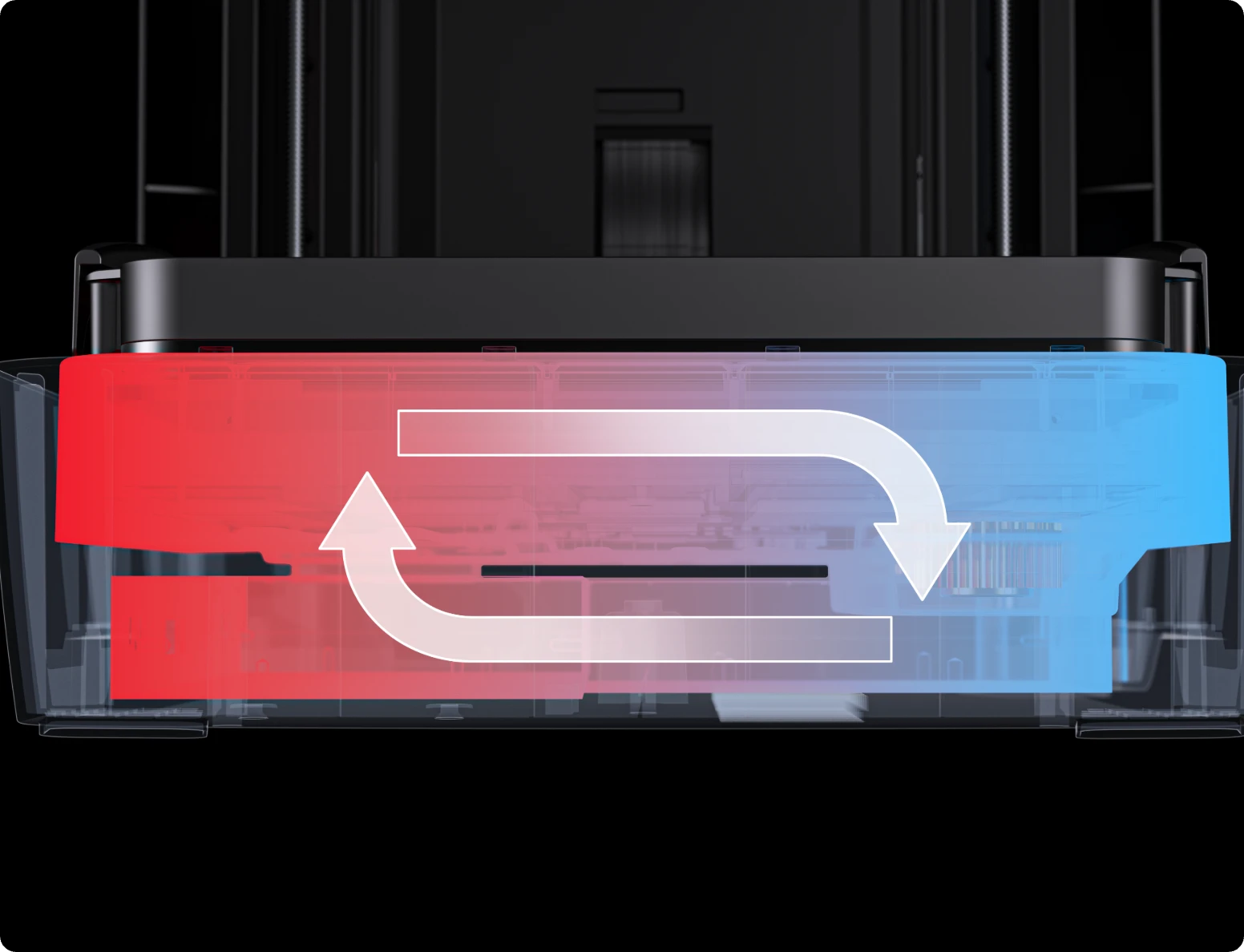

Resin
Heating

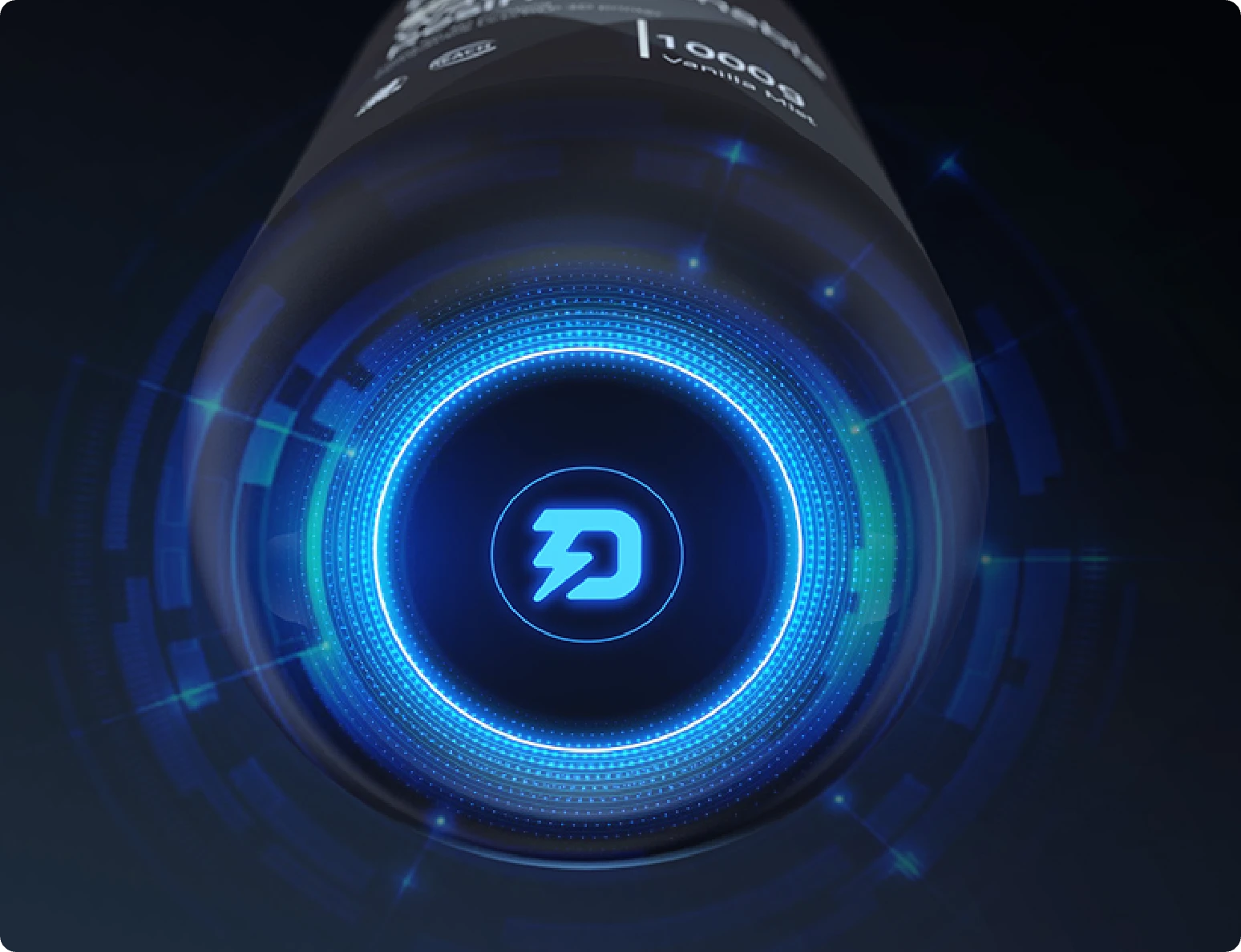

Resin Recognition
via RFID
Material Remaining
Display
Management SystemHALOT-X1's all-in-one AFU resin management
system takes
the hassle out of resin 3D
printing. It features automatic resin feeding,
real-time level and weight monitoring,
RFID-based parameter loading, and fast,
even resin heating (30–35℃)—all working
together to ensure efficient use,
consistent quality, and a smoother workflow
from start to finish.
Automatic MaterialFeed In & Feed Out
ResinHeating
Resin Recognitionvia RFID
Material RemainingDisplay
In the Box
Trayx1
Filters x1
Gloves x1
Power Cable x1
Plastic Scraper x1
Lubricantx1
HexKeys x1
Qualified Certificate x1
USB Drivex1

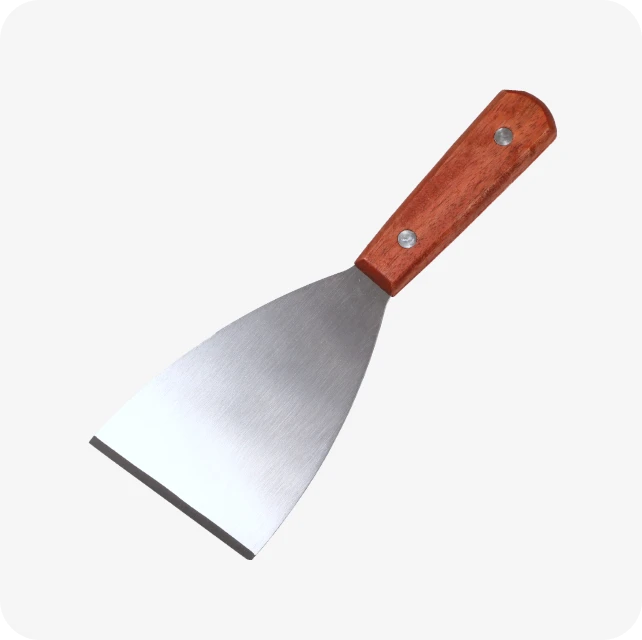

MetalScraper x1

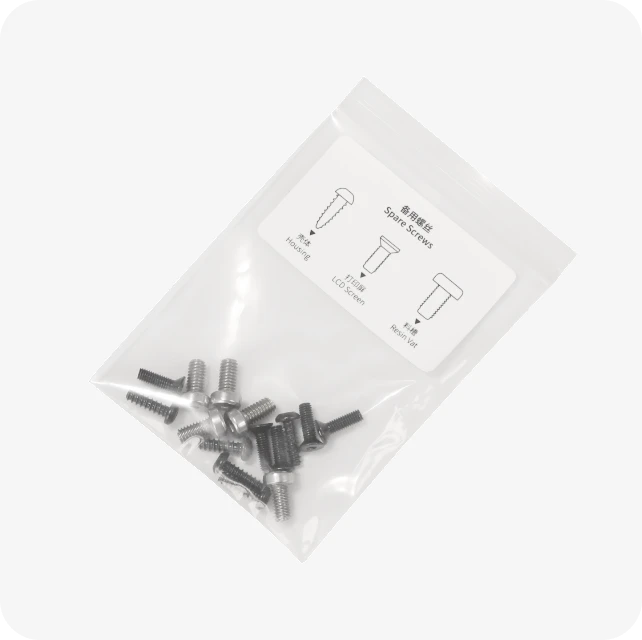

Spare Screws x1

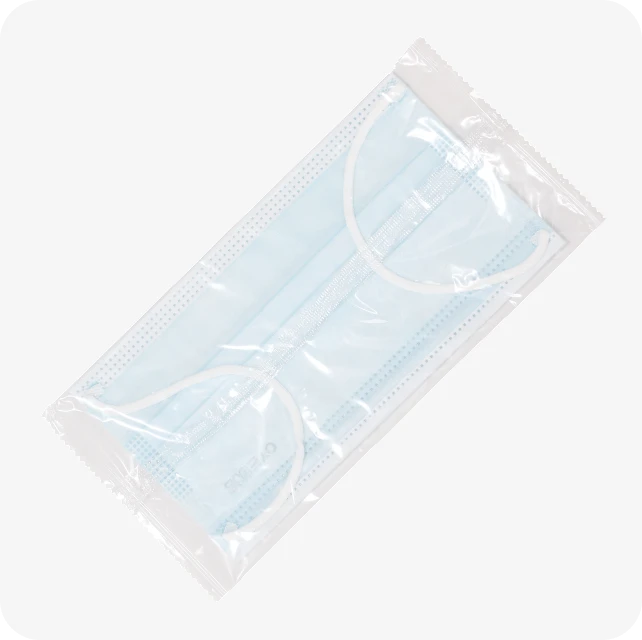

Respirator
After Sales Service Card x1
Quick Start Guide x1
FAQ
I'm new to PioCreat Studio for the HALOT X1 3D printer for beginners. Is there a tutorial
available?
Yes. Please check our official PioCreat Studio Tutorial. It provides detailed guidance on
installation, slicing settings, and workflow for the HALOT X1, helping 3D printer beginners get
started quickly.
The “Door security” reminder pop-up is annoying, and I have to close the lid before the build plate
can move down.
This feature is designed for safety, especially when using a resin 3d printer. We do not recommend
disabling it. The cover needs to be closed to unlock the platform. However, if the sensor is faulty
or you need to disable the function, you can manually turn it off by navigating to [Settings]-[Print
Settings]-[Door Security Reminder].
The resin tank lifting and lowering speed seems too slow.
The motor speed for both lifting and lowering in a resin printer 3d is configured in the system as
an “S-curve” motion profile: slow speed at the “home position” and the “highest point,” with
acceleration in between.
The light intensity is not adjustable. The default intensity of 6500 μW/cm² is too high, which may
cause compatibility issues with third-party resins and reduce print accuracy. While other 16k resin
printer models allow light power adjustment.
We aim to reduce the operational difficulty for beginners, so this parameter is currently not
user-adjustable. We recommend using official resins to avoid compatibility issues during resin 3d
printing.
Which sensors are built into the printer, and where are they located?
The built-in sensors are as follows:Proximity switch — Located at the top for lid opening
detection.Limit switch — For Z-axis motion control.
How do I import a resin parameter pack?
Connect to Creality Cloud. Once the connection is complete, the parameter pack for your 3d resin
printer will be imported automatically. Alternatively, import the parameter pack manually via USB
drive.
Can HALOT-X1 print jewelry resin?
Yes, a resin 3d print for jewelry is possible. But if you use resins not officially recommended for
the HALOT-X1, you will need to fine-tune the parameters yourself. This is common practice in 3d
resin printing.
My USB drive transfers files very slowly. How can I speed it up?
We recommend using a USB 3.2 flash drive for faster transfer to your resin 3D printer.
How can I delete files stored in the printer?
You cannot directly delete historical resin 3d prints stored on the device. However, importing a
new file will overwrite the one stored on the mainboard.
What UV wavelength is the HALOT-X1 compatible with?
It is designed for 405 nm UV resin, which is standard for most resin printers for miniatures and
resin printers for figurines, ensuring high detail and accuracy in your resin 3d prints.
X1 Specifications
Product Title
HALOT-X1
Machine Size
344mm*331mm*434mm
Printing Size
211.68mm*118.37mm*200mm
Package Size
430mm*420mm*535mm
N.W.
12.93KG
G.W.
16.19KG
Printing Technology
LCD
Light Source
Honeycomb Matrix Light Source
Exposure Intensity
6500+10%μW/cm2
Resolution
16K(15120*6230PX)
Pixel Size
14*19μm
Z-axis Accuracy
0.01mm
Layer Thickness
0.01~0.2mm
Printing Speed
Max. 170mm/h
Touch Screen
3.98-Inch Capacitive Touch Screen
Slicing Software
HALOT BOX/Chitu Box
Data Transmission
USB/WIFI
Input Voltage
100-120V~200-240V, 50-60Hz
Power
350W
* To ensure the heat bed quickly reaches the needed temperature, the printer will maintain maximum phower
for no more than 3 minutes
