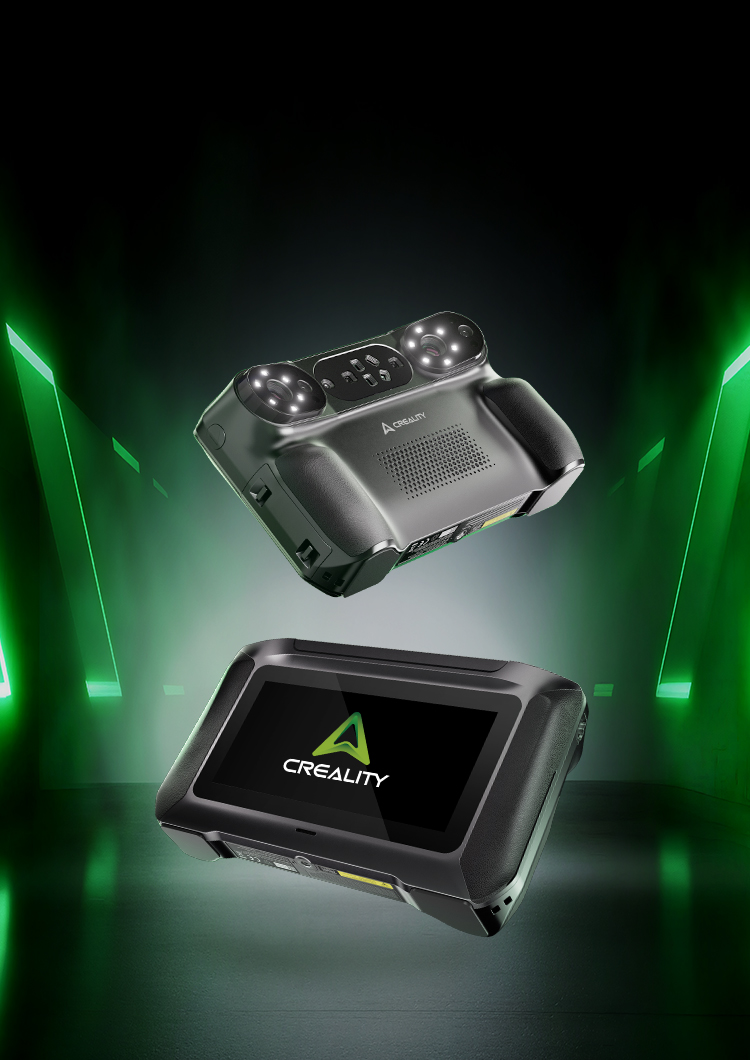

Scan. Process. Export - All in one Device.An all-in-one 3D scanning workflow in a single device. With advanced laser & structured light systems and powerful
onboard computing, Sermoon P1 enables
high-precision scanning and processing—no PC required.
Scan Anywhere. No Limits.Built for tight, hard-to-reach spaces, Sermoon P1 enables
flexible,
cable-free scanning where traditional setups fall short. Capture high-quality data on-site—fast, efficient, and
without constraints.

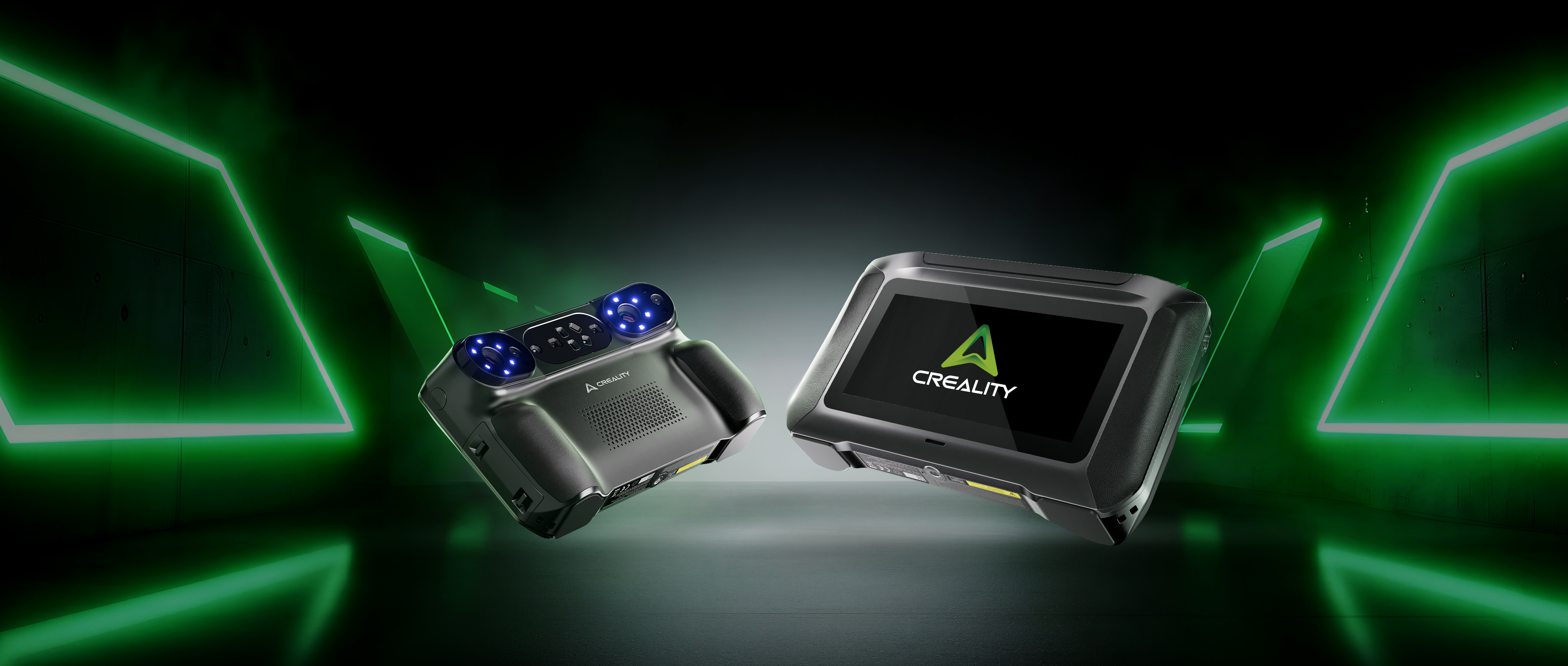

Triple Work Modes, Flexible Operation
Switch seamlessly between Standalone, Wired PC,
and Wireless PC modes —— adapt easily to any
scanning environment or workflow.
Standalone Mode
Wired PC Mode
Wireless PC Mode
0.02 mm + 0.06 mm/m,
Reliable Consistent AccuracyDesigned for repeatable, reliable results in
professional workflows such as reverse
engineering
and automotive customization.
Hybrid Light Source SystemFeaturing 22 + 7 + 1 blue laser lines + NIR structured
light*Sermoon P1 adapts to different surfaces and materials, Markerless Scanning — Coming in May.
SINGLE-LINE
DEEP HOLE SCANNING

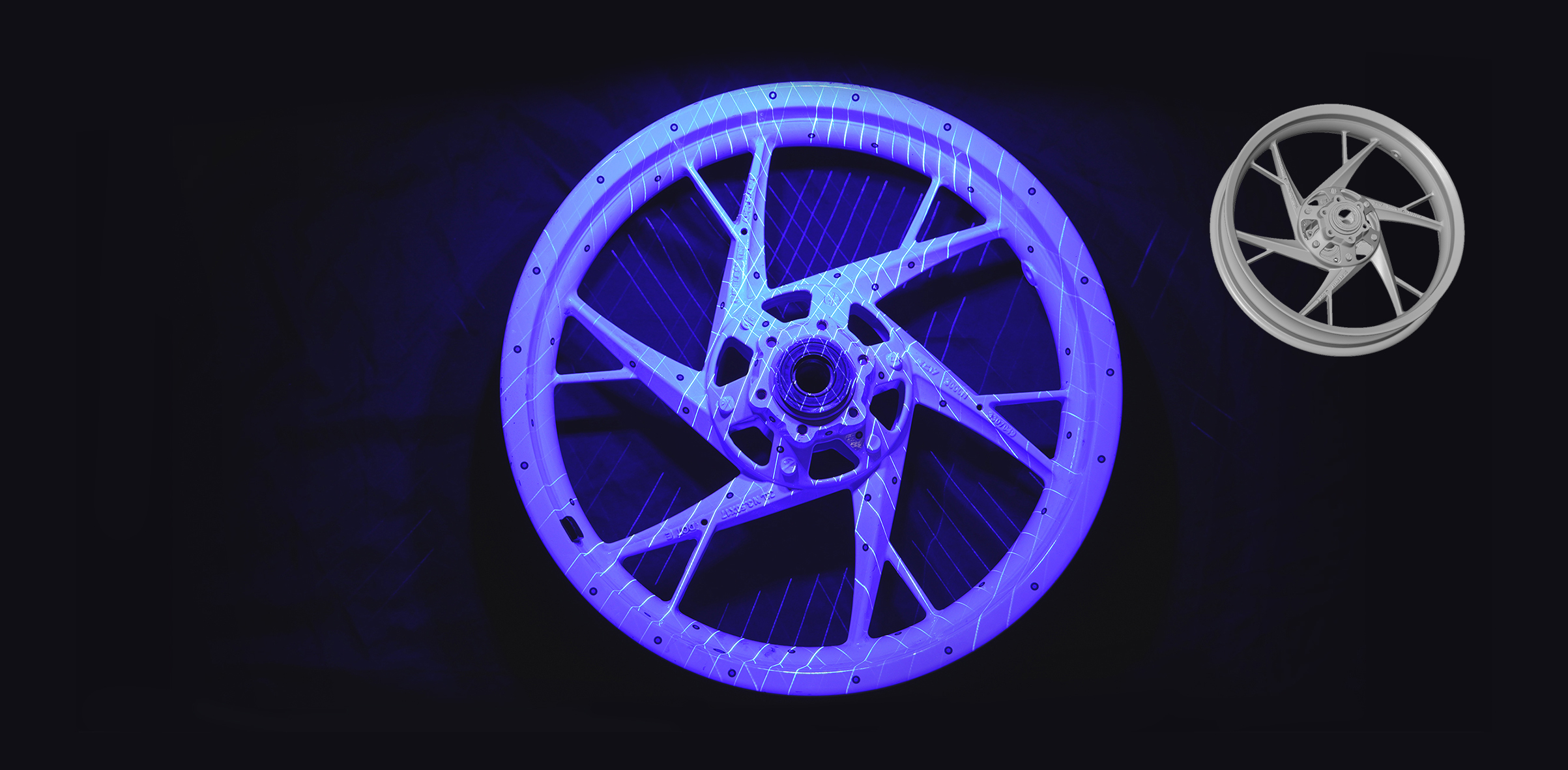

7 PARALLEL-LINE
FINE SCANNING
22 CROSS-LINE
FAST SCANNING
NIR MARKERLESS
SCANNING
For measuring deep holes
and hard-to-reach areas.
SINGLE-LINE
DEEP HOLE SCANNING
For measuring deep holes
and hard-to-reach areas.
7 PARALLEL-LINE
FINE SCANNING
For swift detail capture of intricate features
and complex structures.
22 CROSS-LINE
FAST SCANNING
For efficient scanning to quickly capture the
geometry and dimensions of large parts.
NIR MARKERLESS
SCANNING
Fast, marker-free scanning for large objects
and the human body.
Single-Line Laser, Mastering Deep Holes (Up to
depth-to-diameter ratio 6:1)The P1 single-line laser deep-hole scanning mode captures
accurate 3D data from
hard-to-reach areas such as deep
holes, narrow gaps, and recesses. It supports
scanning narrow holes with a depth-to-diameter ratio of up to
6:1, delivering more
complete 3D data for design, inspection, analysis, and
beyond.*Test based on a 28.68 mm diameter pipe, with a measured
depth of 172.2 mm
Deep Holes
Narrow Gaps
Recessed Areas
Innovative 4-Lens
High Definition Lenses:share the same lenses with blue laser
High Definition Lenses:Provide high accuracy scanning
Wide FOV LensesOffer an ultra-wide field of view for fast,
marker-free
scanning of large objects and human bodies.
Wide FOV LensesOffer an ultra-wide field of view for fast,
marker-free
scanning of large objects and human bodies.
Innovative 4-Lens
High Definition Lenses:share the same lenses with blue laser
Wide FOV LensesOffer an ultra-wide field of view for fast, marker-free
scanning of large objects and human bodies.
Fast Scanning,
Smooth CaptureHigh-speed data acquisition ensures smooth,accurate
real-time reconstruction — even during complex
scans.
Blue Laser Mode:up to60 FPS (Standalone)
/ 100 FPS (PC)
High-performance Qualcomm ProcessorPowered by a Qualcomm high-performance processor with
CPU/GPU/FPGA
acceleration for fast, real-time scanning and data
processing.
CPU | 8-Core 3.36 GHzCreality 100%Others 50%
GPU | Adreno 740Creality 100%Others 30%

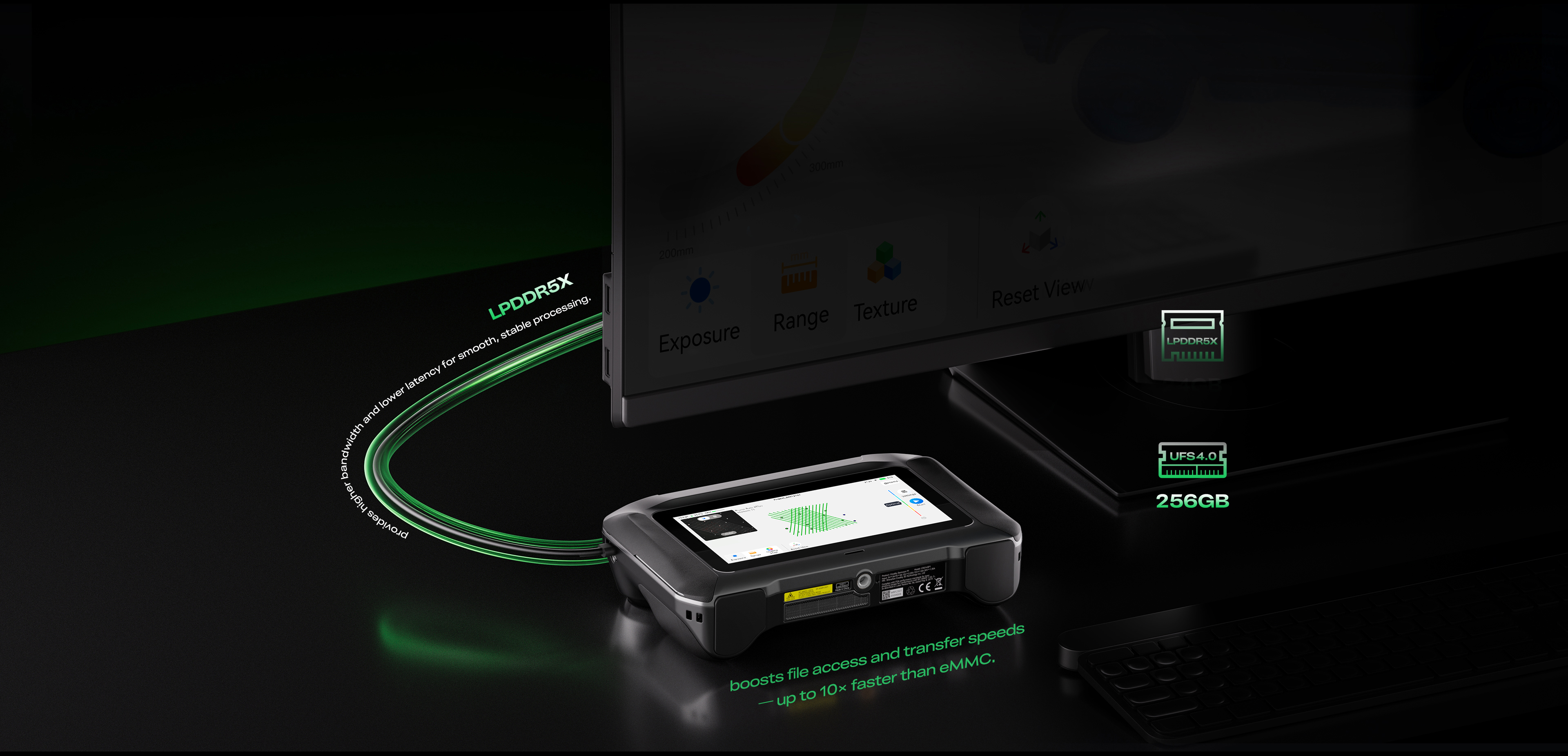

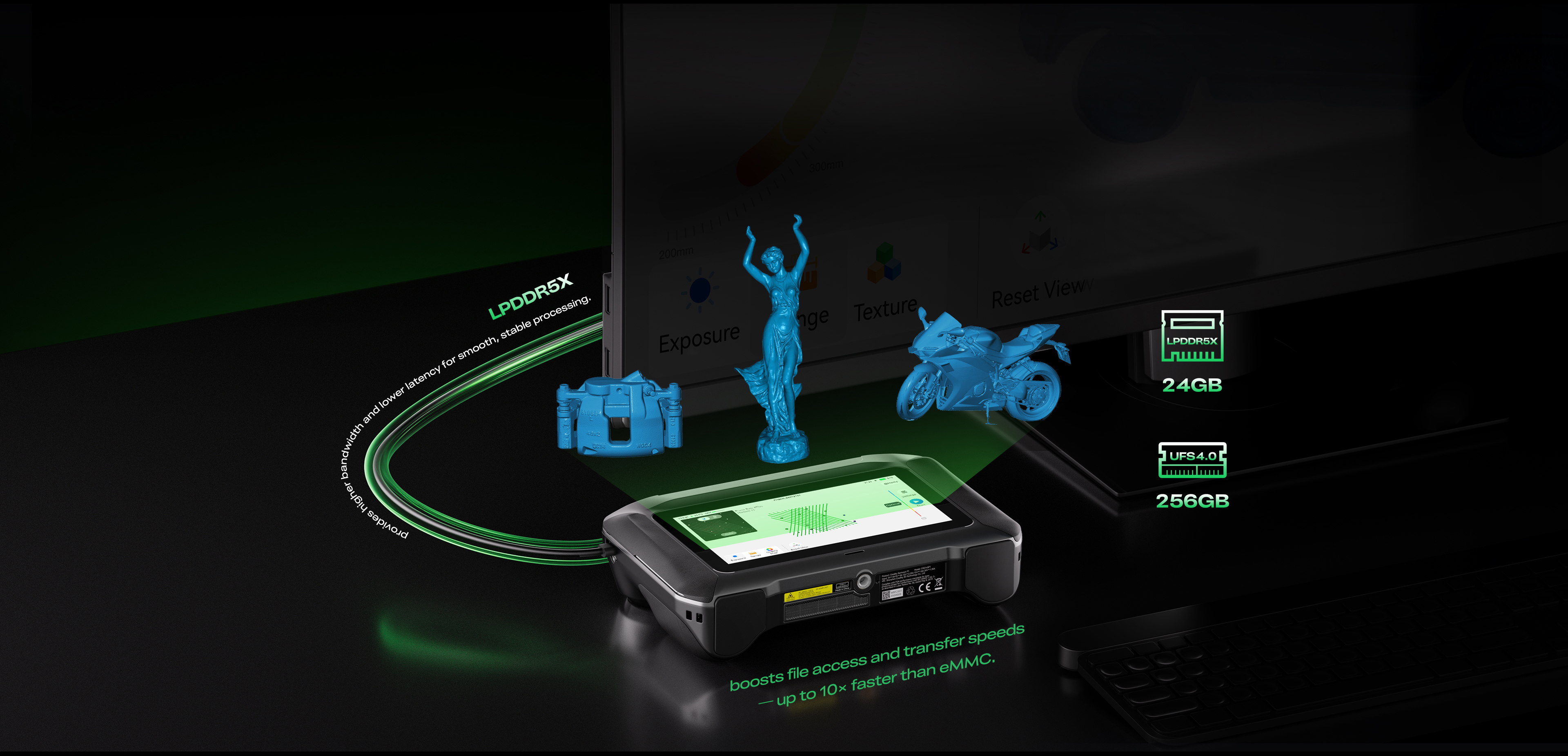

Ultra-Fast Memory & Storage24GB LPDDR5X RAM and 256GB UFS 4.0 ROM
Ultra-Fast Memory & Storage 24GB LPDDR5X RAM and 256GB UFS 4.0 ROM
Wi-Fi 7, Fast & Stable Connectivity Built-in Wi-Fi 7 and advanced lossless compression algorithms
ensure faster,
safer, and more reliable data transfer.
Modulation scheme
WIFI-7802.11be
WIFI-6802.11ax
4096 QAM
1024 QAM
#High Data Density
Up to 4.8X faster than Wi-Fi 6
Wifi 7 tri-band connection
46Gbps
Wifi 6 dual-band connection
9.6Gbps
6-Inch HD Touchscreen — Clear &
Intuitive
A 6-inch Full HD display with crisp visuals and
an 160° wide viewing angle,
ensuring clear visibility even outdoors.
Scan, process, and preview—all on a single device.
Swappable Dual- Battery Design
Equipped with two swappable batteries (1 installed,
1 included
separately). And comes with an extra
battery
pack enables seamless, uninterrupted
operation.
Power That
Keeps You GoingA smart power-saving system automatically enters
sleep mode to extend battery life.
Fast Charging
Charges to 80% in just 50 minutes, making
outdoor
scanning more convenient and
worry-free. Each
battery features a Type-C charging
port for
independent charging.

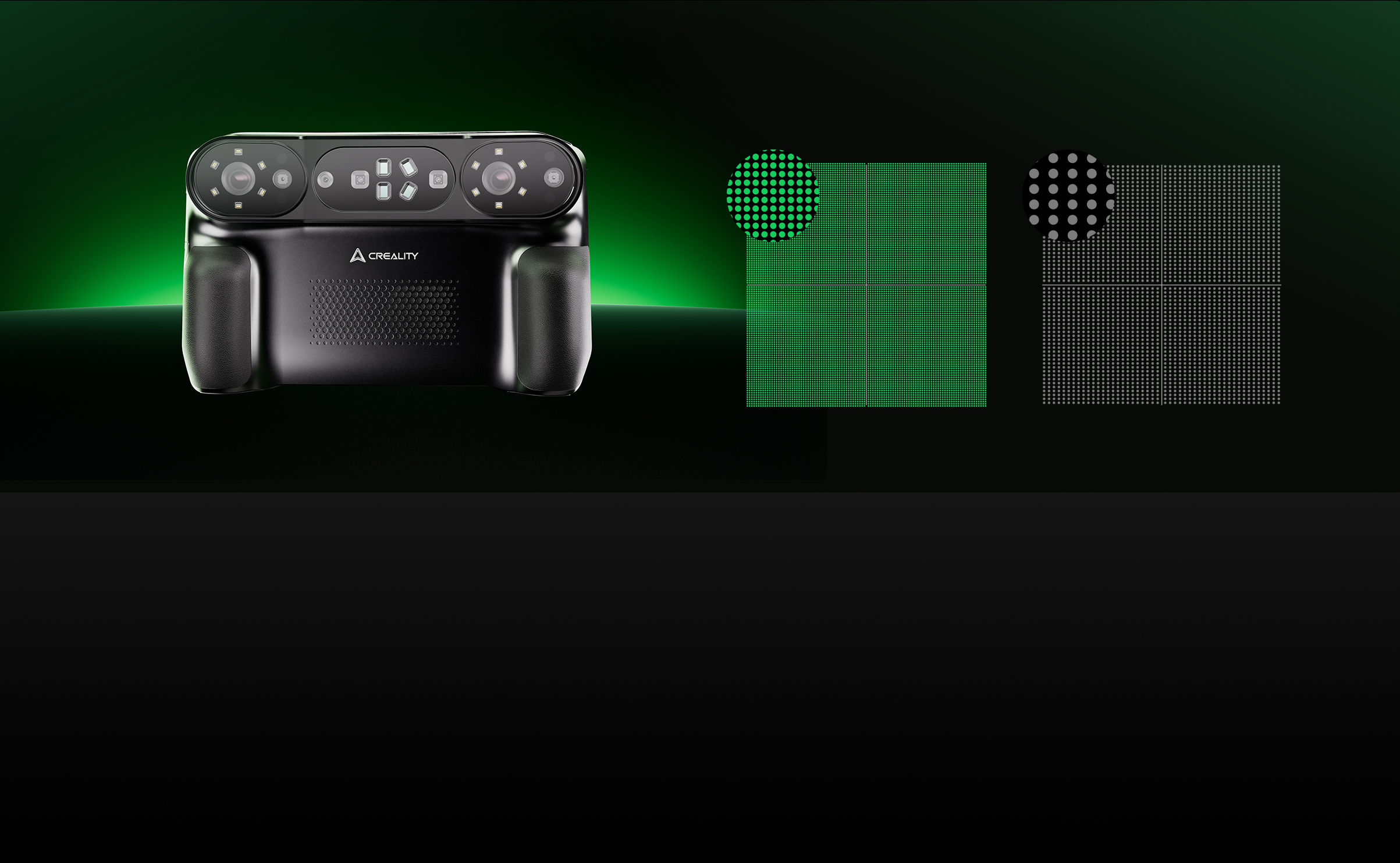

Efficient Scanning at Large FOVA larger single-frame FOV reduces marker requirements
while improving tracking stability and scanning
efficiency.
Blue Laser Max: 380 × 365 mm @ 550 mm
Infrared Max:
1245 × 754 mm @ 1000 mm (1-minute full-body scan)
Wide Scanning Range,
All-in-One Efficiency
By combining blue laser lines and NIR structured light,
the
Sermoon P1 supports a wide scanning range —
from 5*5*5 mm³ up to
4000*4000*4000 mm³.
Blue Laser ScanningMinimum Scan Size: 5*5*5 mm³
Maximum Scan Size: 4000*4000*4000 mm³
NIR Structured Light ScanningIdeal for medium to large objects,Scanning objects
ranging from 150*150*150mm³ to 2000*200*2000mm³
Superior Material &
Environmental Adaptability
Both blue laser and NIR structured light
offers strong environmental resistance
and
multi-material adaptability,
delivering reli-
able performance

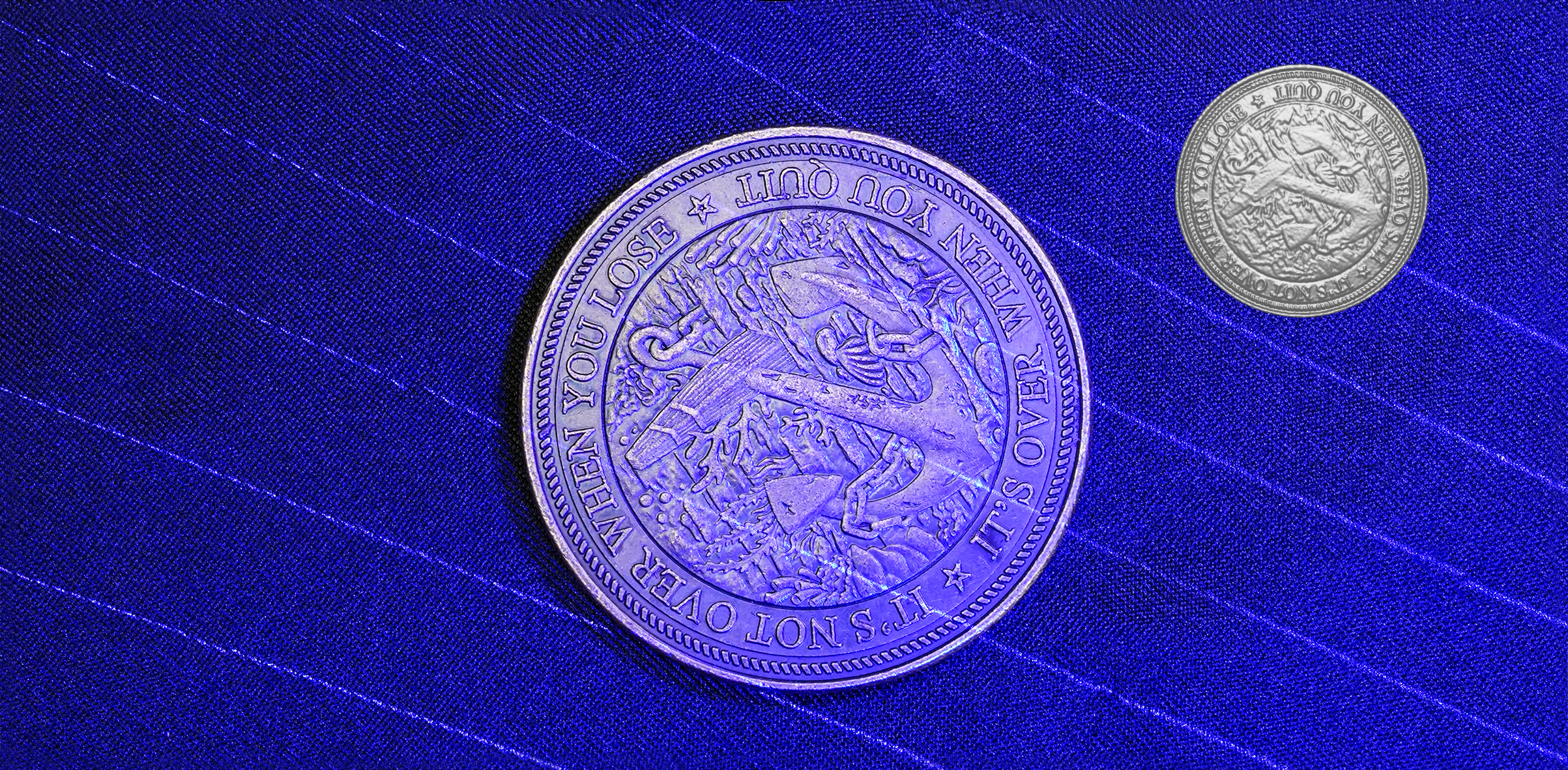

even outdoors.Efficient Operation in SunlightSingle/22 Cross Lines: ≤100k lux
7 Parallel Lines: ≤50k lux
Scan Black/Metal Objects Without Sprays
Captures black, metal objects
without scanning sprays.
Superior Material &
Environmental AdaptabilityBoth blue laser and NIR structured light
offers strong environmental resistance
and
multi-material adaptability,
delivering reli-
able performance
even outdoors.Efficient Operation in SunlightSingle/22 Cross Lines: ≤100k lux
7 Parallel Lines: ≤50k lux
Scan Black/Metal Objects Without SpraysCaptures black, metal objects
without scanning sprays.
Full Color Texture ScanningEquipped with a high-performance Qualcomm ISP chip and a
full-color RGB camera with global shutter,
enhanced by auxiliary lighting, the P1
delivers richer, more realistic textures.
12 Dual-color LED Fill LightsBlue light is used for blue laser scanning.
White light enhances color texture brightness.
Qualcomm ISP Color MappingAdvanced color mapping algorithms ensure accurate and
vivid
color reproduction.
AI Temperature Compensation
– Driven StabilizationAn AI-based temperature compensation algorithm works with
efficient thermal design to ensure stable
output and consistent
scanning during extended use.
Powerful and User-Friendly
Onboard Software
An all-in-one onboard software integrates Calibration,
Scanning, Point -cloud Fusion, Mesh
Editing, Mulit-scan Merging, enbling complete model
processing directly on the device.
Intuitive Interaction
A clean, visual interface guides users from scanning to
model creation with ease.
Modular & Flexible Design
Customizable workflow adapts to different scanning
needs
and user preferences.
One-Click OTA
Updates
Regular over-the-air updates
ensure your device stays
current with the latest features.
macOS
Windows
Seamless Compatibility with Inspection,
Design, and 3D Printing SoftwareScan data can be easily imported into mainstream reverse
engi -neering, inspection, and design
software such as QuickSurface
and Geomagic Design X, streamlining workflows.
QuickSurface
Geomagic Design X

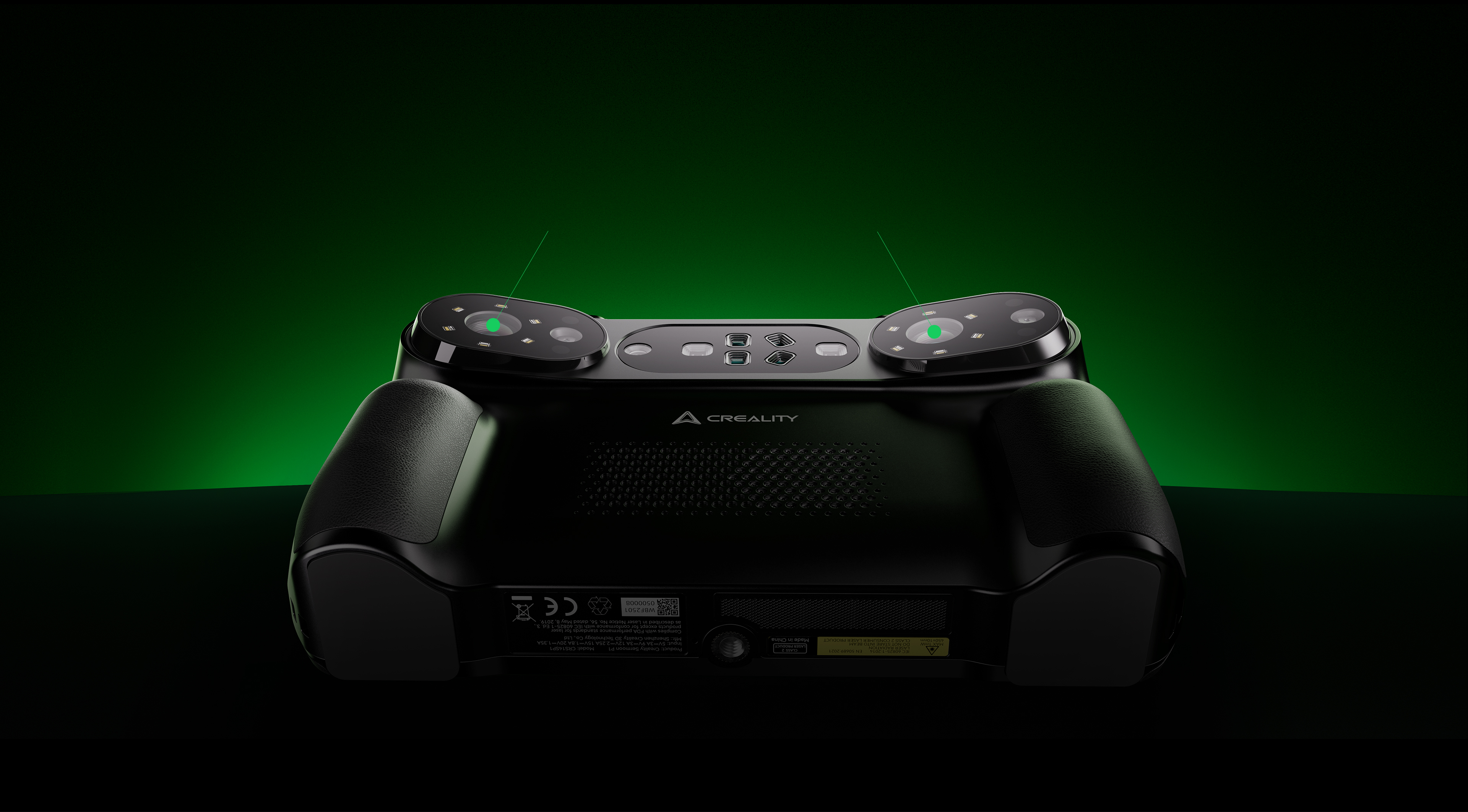

Industrial Design Driven by Performance
Quick-swap battery
for field efficiency
Optimized thermal structure
for stable output
Comfortable grip for extended
scanning sessions
Quick-swap battery for field efficiency
Optimized thermal structure for stable output
Comfortable grip for extended scanning sessions
Compact & Ready to GoCompact, carry-on-sized protective case for easy
transport.
Versatile case for storing 3D scanner, scale, and accessories
securely.
Packing List
Creality Sermoon P1 3D Scanner * 1High-Precision
Glass
Calibration
Board * 12m USB 3.0
Type-C
Data Cable * 1Power Adapter
+ Connectors* 1Reflective Markers
(D6mm * 10, D3mm * 10)
