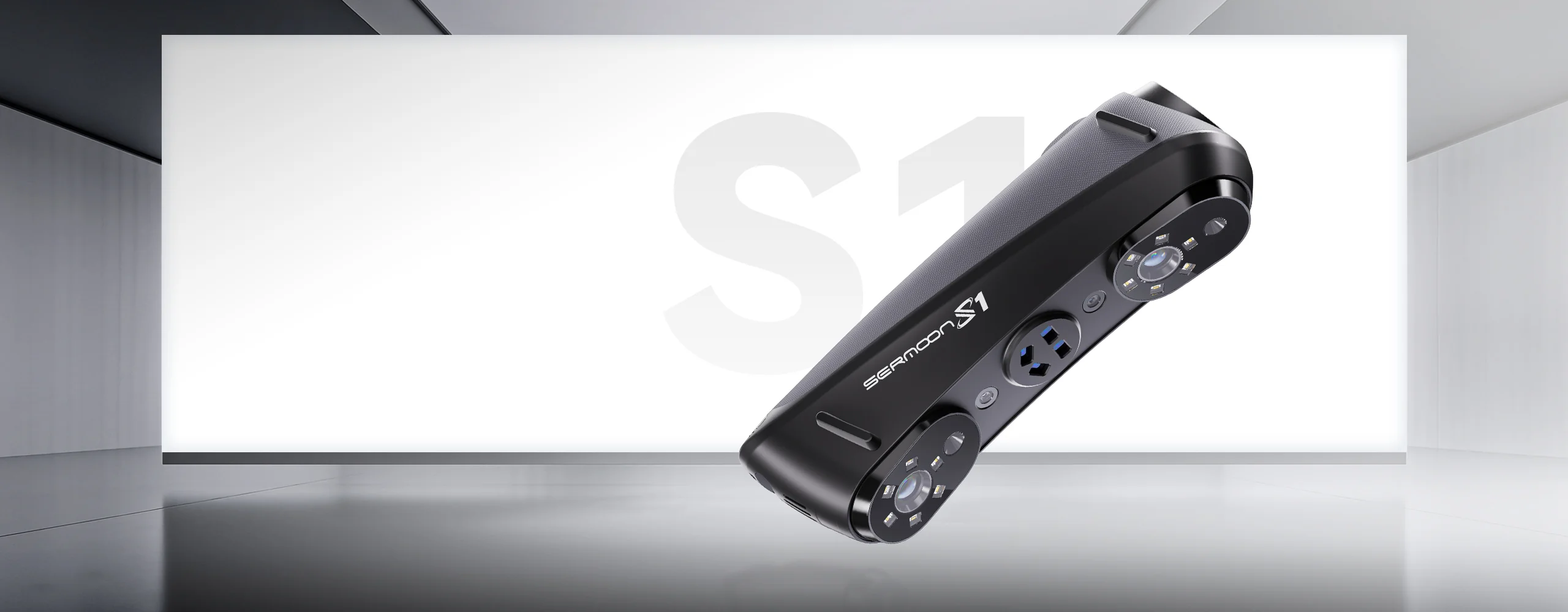

Creality Sermoon S1
Versatile to the core, accurate evermore
Creality Sermoon S1
Versatile to the core, accurate evermore
A Truly Versatile Professional Scanner
Multi-Light Versatility
·
1 + 7 + 34 Blue Lasers+ NIR
High Accuracy
·
Volumetric Accuracy: 0.02mm + 0.08mm/m
High Efficiency
·
Scanning Speed up to 90 FPS
·
Larger FOV for Fasten Scanning of Large
Objects
·
Innovative 4-Lens NIR Structured Light Enables
Efficient, Marker-Free Scanning of Medium to
Large Objects.
Versatile Size Scanning
·
Scan objects ranging from 5 mm to 4000 mm
(from Coins to Entire Vehicles)
User-Friendly
·
Spray-free for Black or Metal Surfaces
·
Excellent Outdoor Performance
·
Marker-Free Scanning for Faces & Large
Objectts
·

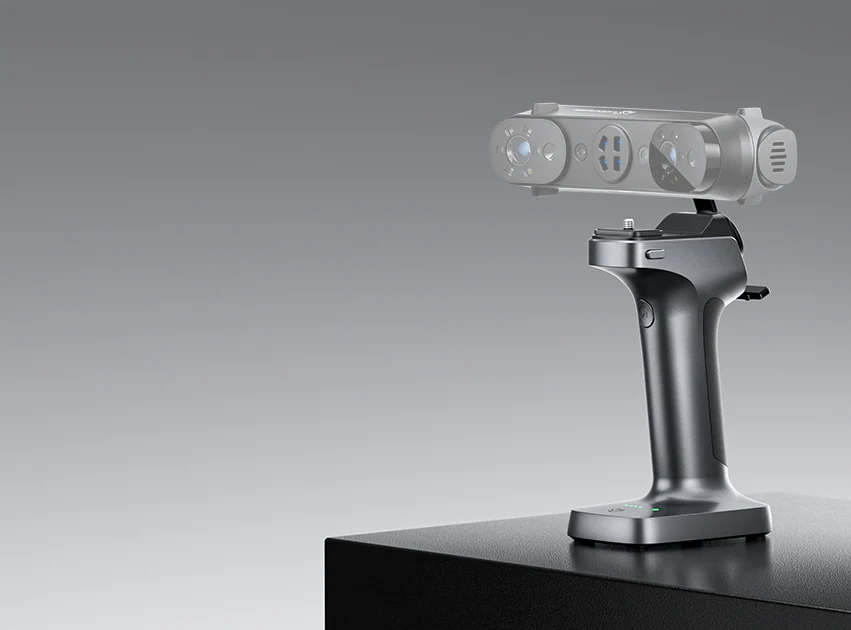

Support Wireless Operation(with Optional
Accessory)
Intelligent
·
Temperature Compensation Algorithm for Stable
Long-Term Use
·
AI-Powered Scanning Software Simplifies
Complex Workflows
·
Seamlessly Integrates with Professional
Software,Supporting Standard Formats for Easy
Post-Processing.
·
High-Definition Color Reproduction
A Truly Versatile
Professional Scanner
Multi-Light Versatility
1 + 7 + 34 Blue Lasers+ NIR
High Efficiency
Scanning Speed up to 90 FPS
Larger FOV for Fasten Scanning of Large
Objects
Innovative 4-Lens NIR Structured Light Enables
Efficient, Marker-Free Scanning of Medium to
Large Objects.
User-Friendly
Spray-free for Black or Metal Surfaces
Excellent Outdoor Performance
Marker-Free Scanning for Faces & Large
Objectts
Support Wireless Operation(with Optional
Accessory)
High Precision
Volumetric Accuracy: 0.02mm + 0.08mm/m
Versatile Size Scanning
Scan objects ranging from 5 mm to 4000 mm
(from Coins to Entire Vehicles)
Intelligent
Temperature Compensation Algorithm for Stable
Long-Term Use
AI-Powered Scanning Software Simplifies
Complex Workflows
Seamlessly Integrates with Professional
Software,Supporting Standard Formats for Easy
Post-Processing.
High-Definition Color Reproduction

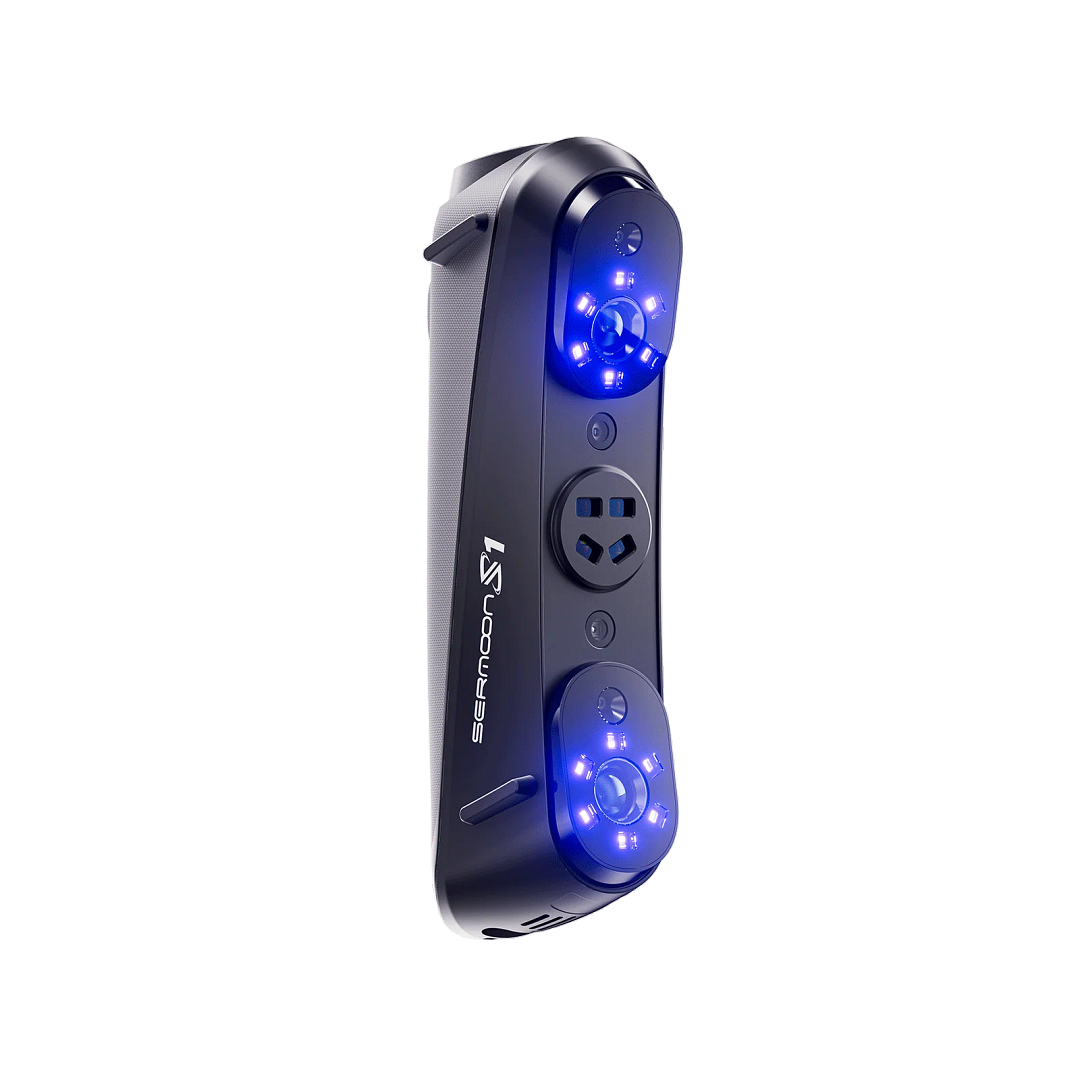

Full hardware upgrade
Single-Line Laser
+ 7 Parallel Lasers
+ 34 Cross Lasers
High Accuracy camera
High Accuracy camera
Wide-angle Camera
Wide-angle Camera
NIR
Color Camera
01
Multi-Light Versatility
Why Choose the Sermoon S1
1+7+34 Laser Line+ NIR
1 Single Laser Line
7 Parallel Blue Laser Lines
34 Cross Laser Lines
Innovative 4-Lens NIR Structured Light
Accurately capture 3D data of deep holes and hard-to-reach
area
Accurately captures fine surface details of complex
objects with single-line precision and up to 0.1 mm
resolution
Quickly covers medium to large objects, greatly improving
work efficiency.

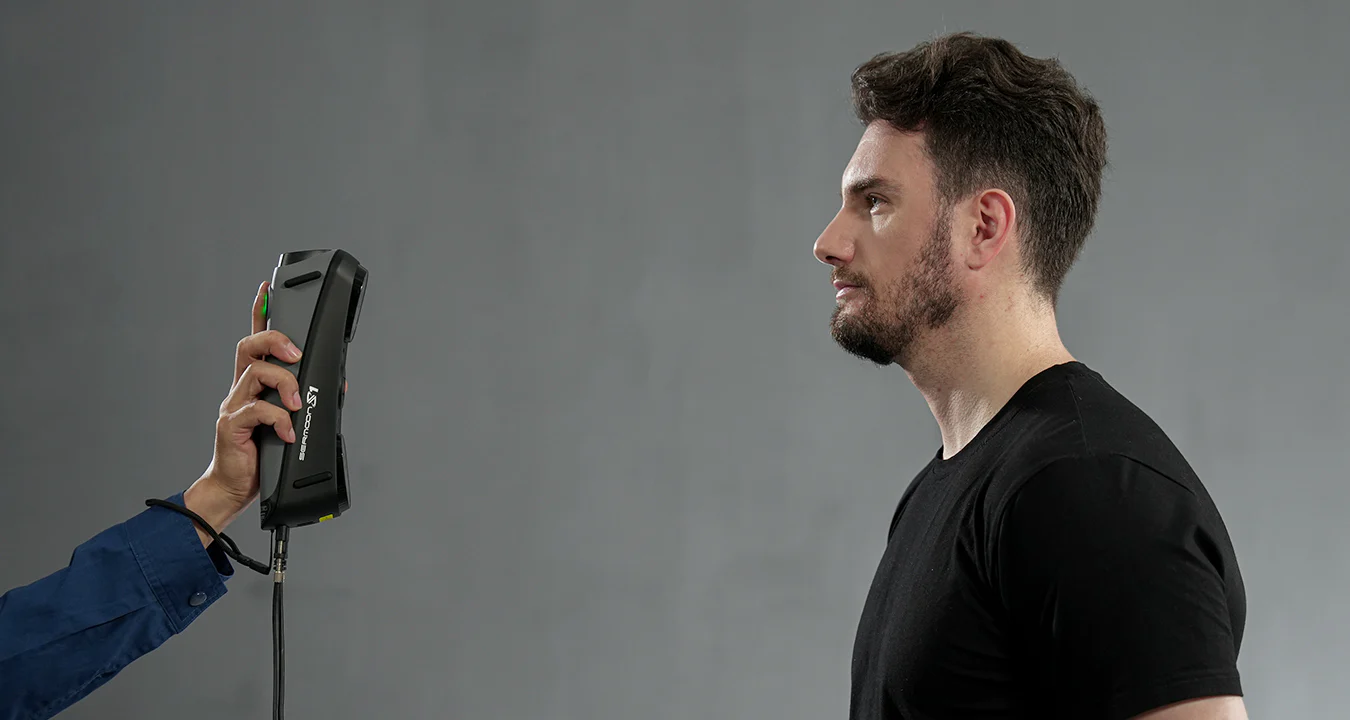

Fast marker-free scanning for large objects and the human
body

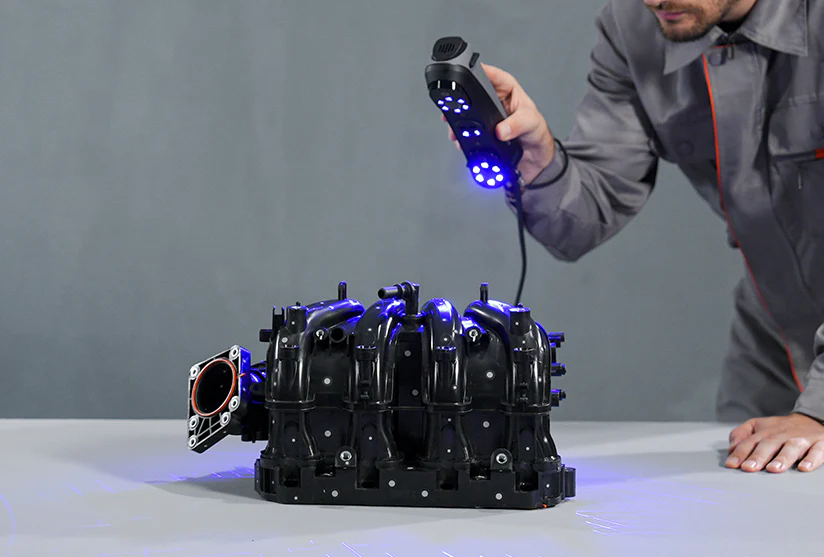

Reveal deep holes, narrow gaps,
and recessed areas
Equipped with a precise single-line blue laser and an
optimized optical path, the Sermoon S1 excels at scanning
deep holes, narrow gaps, and recessed areas-capturing
intricate details in hard-to-reach spaces with
uncompromising accuraccy.
Deep Holes
Narrow Gaps
Recessed Areas
02
High Accuracy
Why Choose the Sermoon S1
Sermoon S1 delivers metrology-grade precision,
making it ideal for high-accuracy,
non-destructive inspection across industries.
Scanning Accuracy
0.02mm
Volumetric Accuracy
0.02 mm + 0.08mm/m
03
High Efficiency
Why Choose the Sermoon S1
90FPS High-Speed Scanning
Achieve data acquisition speeds of up to
1,428,000 points
per second and a maximum scanning frame rate of
90 frames per
second.
Parallel lines/single line, up to 90fps
Cross lines up to 70fps

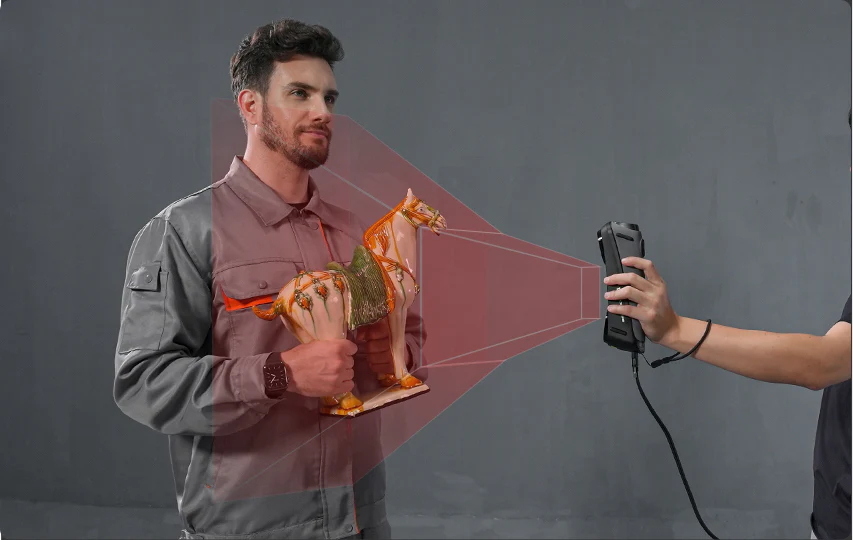

Innovative 4-Lens NIR Structured Light
Standard Stereo Lenses:
provide high-accuracy scanning
Wide FOV:
offer an ultra-wide field of view for fast, marker-free
scanning of large objects and human bodies.

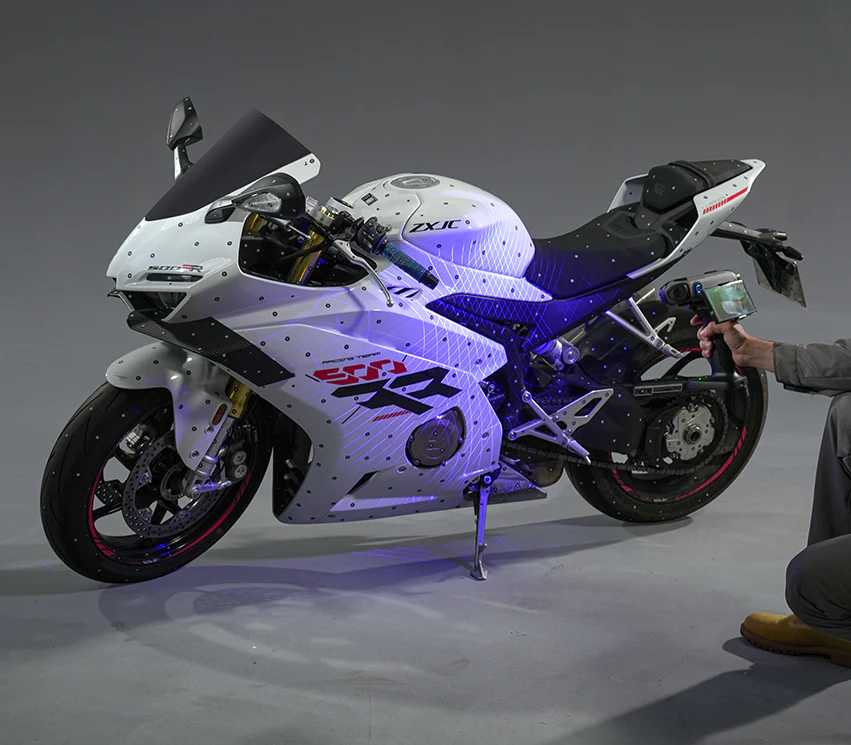

Efficient Scanning at Large Scale
A larger single-frame FOV reduces the number of required
markers, improves tracking stability,
and significantly enhances scanning efficiency.
Line laser maximum:
506mmx433mm at600mm
Infrared maximum:
(scans a human body in as little as 1 minute)
04

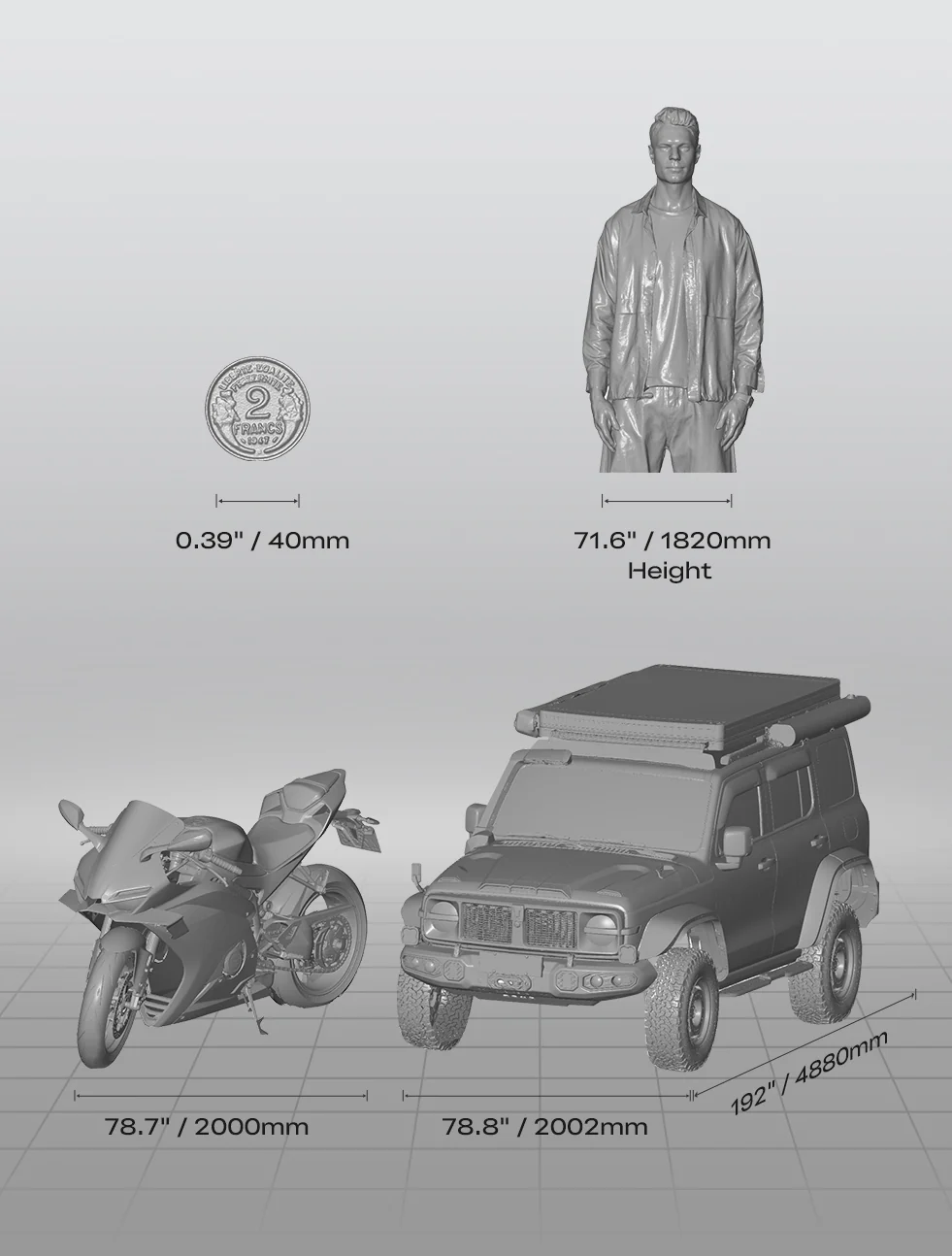

Versatile Size Scanning
Why Choose the Sermoon S1
Scanning Range 5 mm³ - 4000 mm³
With a hybrid system combining blue laser lines and
infrared structured light, the Sermoon S1 supports a wide
scanning range-from as small as 5 × 5 × 5 mm³ to as large

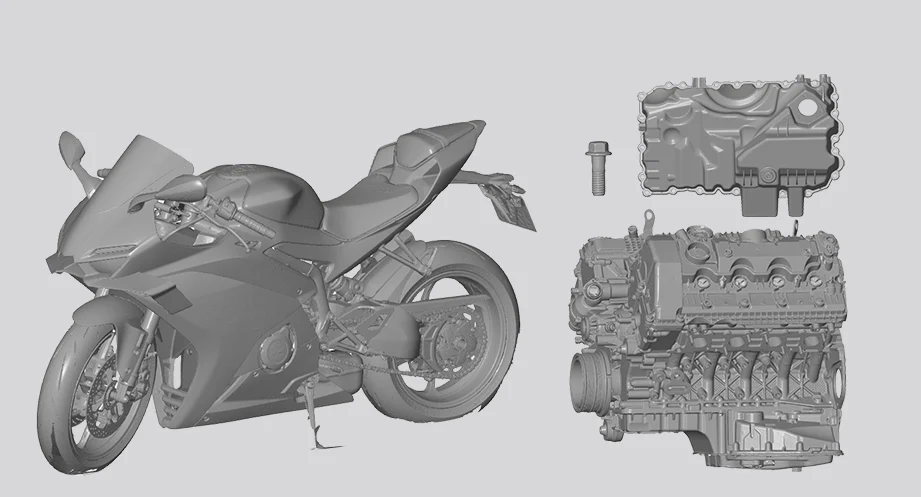

as 4000 × 4000 × 4000 mm³. Ideal for automotive
components, coins, bolts, figurines, or even the human
body.
05
User-Friendly Design
Why Choose the Sermoon S1
Flawless Performance Indoors & Outdoors
Whether under bright outdoor light or in complete indoor
darkness, the Sermoon S1 delivers consistent
performance.
· Single/cross-line laser: ≤100k lux
· 7-line laser: ≤50k lux
Scan Black/Metal Objects Without Sprays
05
Intelligent
Why Choose the Sermoon S1
Smart Stabilization for a Smoother Scan
Powered by an AI-driven temperature compensation algorithm
and an efficient thermal management system, the Sermoon S1
maintains stable output even during prolonged sessions. Its
One-Shot 3D imaging technology ensures higher tracking
stability, effectively minimizing frame drops and
misalignment caused by hand movement, significantly
improving overall scanning accuracy and efficiency.
Powered by an AI-driven temperature compensation algorithm
and an efficient thermal management system, the Sermoon S1
maintains stable output even during prolonged sessions.
Combined with One-Shot 3D imaging technology, it enhances
tracking stability, reduces frame drops and stitching
errors caused by shaking;

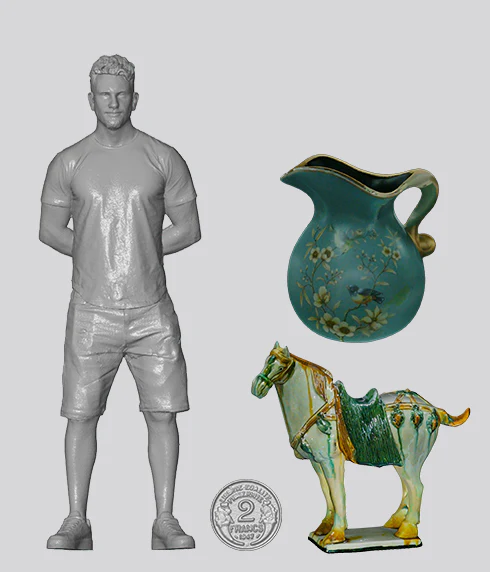

2MP high-resolution RGB camera and dual-color LED texture
lights delivers high-definition color reproduction
significantly improving overall scanning efficiency.
CrealityScan 4.0
AI-Powered Productivity, Made Simple
CrealityScan 4.0 is an upgraded professional 3D scanning
software that combines user-friendly design with powerful
image and point cloud processing. With step-by-step
tutorials, one-click model processing, and intuitive editing
tools, it makes scanning easier than ever.
Windows
macOS
Android
iPhone iOS
Faster
GPU acceleration enables real-time scanning up to 90 fps;
laser line fusion is 2× more efficient
Easier
Stronger
Smarter
Faster
Easier
Stronger
Smarter
GPU acceleration enables real-time scanning up to 90 fps;
laser line fusion is 2× more efficient
Seamless Integration to Inspection, Design, 3D Printing
Softwares
The scan data can be imported into mainstream reverse
engineering software, 3D inspection and design software
programs, such as QuickSurface, Geomagic Design X, improving the
workflow efficiency.
QuickSurface
Geomagic Design X
SiemensNX
PolyWorks
Catia
Creo
SoldWorks
Maya
3DMax
Rhino
Cinema4D
ZBrush
Meshmixer
Mudbox
Meshlab
Meshlab
UnrealEngine
fusion 360
Quicksurface
blender
Geomagic Wrap
Design X
SiemensNX
PolyWorks
Catia
Creo
SoldWorks
Maya
3DMax
Rhino
Cinema4D
ZBrush
Meshmixer
Mudbox
Meshlab
Meshlab
UnrealEngine
fusion 360
Quicksurface
blender
Geomagic Wrap
Packing List
Sermoon S1
USB 3.0 data cable (Type-C/Type-A)
Power plug
Reflective markers (D6mm*10 sheets,D3mm*10 sheets)
High-precision glass calibration plate
Type -C adapter
Lanyard
Cleaning cloth
Quick start guide, certificate of conformity &
warranty card
Waterproof box
High-precision glass calibration plate
Waterproof box
Applications

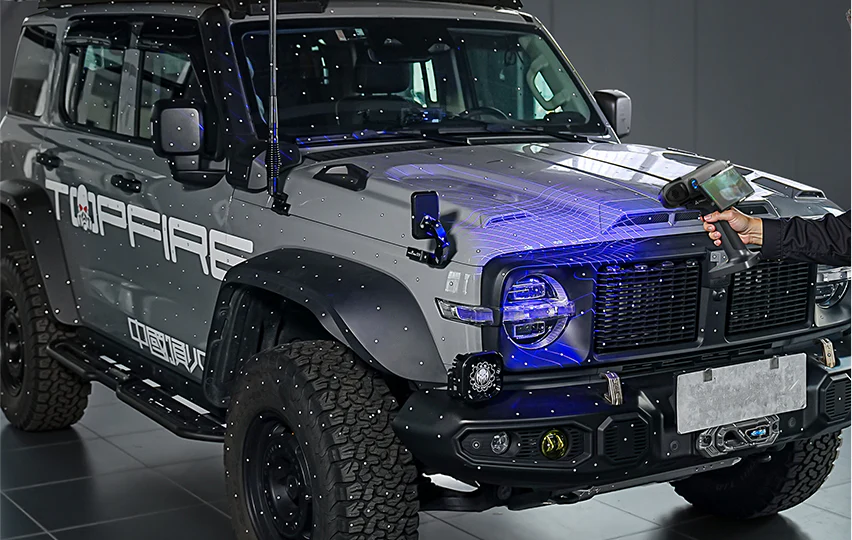

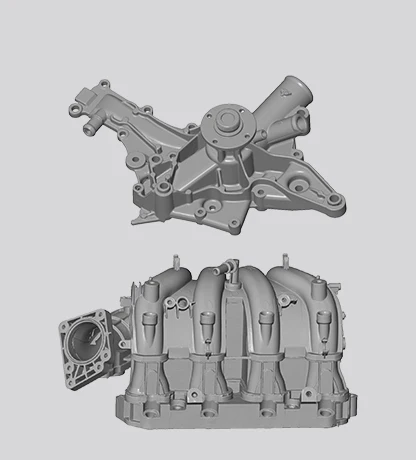

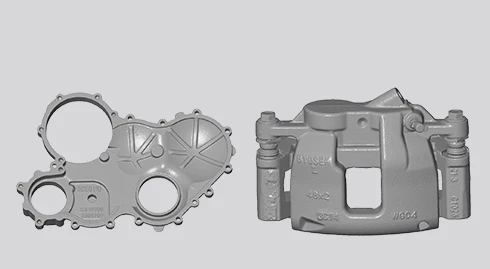

Automotive
Reverse Engineering
Inspection
Manufacturing
Art & Antique
Product Parameter
| Scanning Mode | Single Blue Laser Line | 7 Parallel Blue Laser Lines | 34 Cross Blue Laser Lines | Close-Range Infrared Structured Light | Long-Range Infrared Structured Light |
|---|---|---|---|---|---|
| Accuracy | Up to 0.02mm[1] | Up to 0.075mm | |||
| Volumetric Accuracy | 0.02mm+0.08mm/m | 0.075mm+0.1mm/m | |||
| Scanning rate |
108,000 measurements/s
|
756,000 measurements/s
|
1,428,000 measurements/s
|
4,600,000 measurements/s | |
| 3D Resolution | 0.05-2mm | 0.1-2mm | |||
| Scanning Speed | Up to 90fps | Up to 30fps | |||
| Min. scan volume | 5mm x 5mm x 5mm | 150mm x 150mm x 150mm | |||
| Single Capture Range |
205mm x 147mm@200mm
293mm x 217mm@300mm
355mm x 289mm@400mm
417mm x 361mm@500mm
506mm x 433mm@600mm
|
293mm x 217mm @300mm
417mm x 361mm @500mm
|
689mm x 375mm @500mm
1245mm x 754mm @1000mm
|
||
| Working distance | 200mm-600mm | 150mm-400mm | 200-600mm | 170mm-500mm | 200mm-1200mm |
| Color Mapping | Yes | ||||
| Alignment mode | Marker / Global Marker | Marker / Global / Geometry / Texture | |||
| Color Supplemental Light | 12 White LEDs | ||||
| Outdoor Scanning | Below 100,000 lux | Below 50,000 lux | Below 100,000 lux | Below 30,000 lux | |
| Marker Recognition Enhancement | 12 Blue LEDs / 12 White LEDs | ||||
| Laser Safety | Class II (eye safe) | Class I (eye safe) | Class II (eye safe) | Class I (eye safe) | |
| Device Weight | 508g | ||||
| Size | 225mm×53mm×76mm | ||||
| Calibration board | High-precision glass calibration board | ||||
| Wireless Scanning | Supported in Conjunction with Wireless Scanning Accessories | ||||
| System Support |
Windows/macOS
Android/iOS (Requires Wireless Scanning Accessories)
|
||||
| Computer Configuration Requirements |
Windows:
The following or higher configurations are
recommended: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB
RAM, Windows 10/11 (64-bit) Minimum configuraiton:
i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows
10/11 (64-bit)
macOS:
M1/M2/M3/M4 series, 16GB RAM
|
||||
| Operating temperature | -10°C to 40°C | ||||
| Operating humidity | 10-90%RH | ||||
[1] Accuracy is evaluated in laboratory conditions and actual
results may be affected by operating environments such as
vibration, temperature, and other factors.
