Dry 4 Spools at Once

Dry and print at once for maximum efficiency
Effortless
multi-color printing, seamless multi-filament drying.

*The product does not contain PTFE tube.

200W + 200W PTC Heats
Up to 85°C

Ideal for Engineering Filaments

The dual 200W PTC heaters, paired with insulated chambers, significantly improve heating
efficiency, allowing temperatures to reach up to 85°C. This ensures continuous and effective
drying of engineering filaments such as PA, PAHT, PC.

*High-temperature drying should consider the heat resistance of the spools.

Why Do You Need a SpacePi X4?

Moisture ruins filaments, may causing defects like stringing, clogging, layer shifting and poor adhesion. SpacePi removes humidity, restoring filaments to their optimal state for smooth, high-quality prints. The temperature inside the X4 can reach up to 85°C, which can save you nearly 50% of the time when drying engineering filaments such as PA-CF, PAHT, PPA.

before.jpg 70.jpg
70.jpg 80.jpg

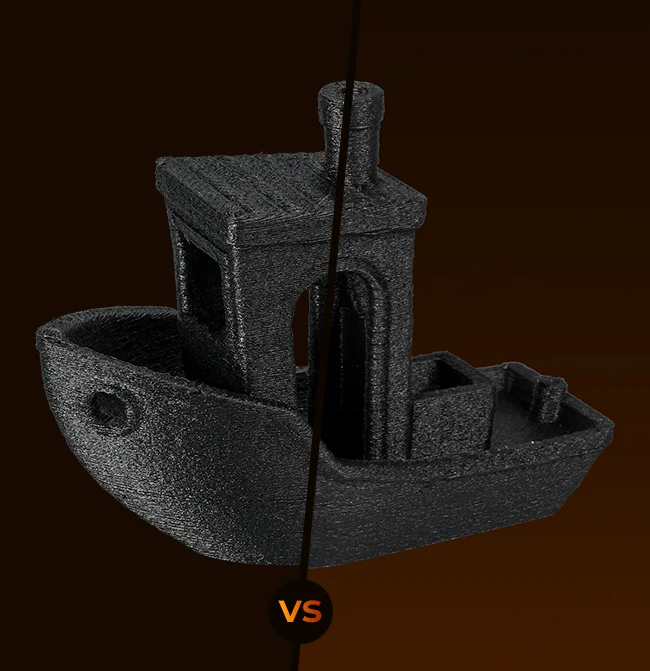

PA-CF
PA-CF

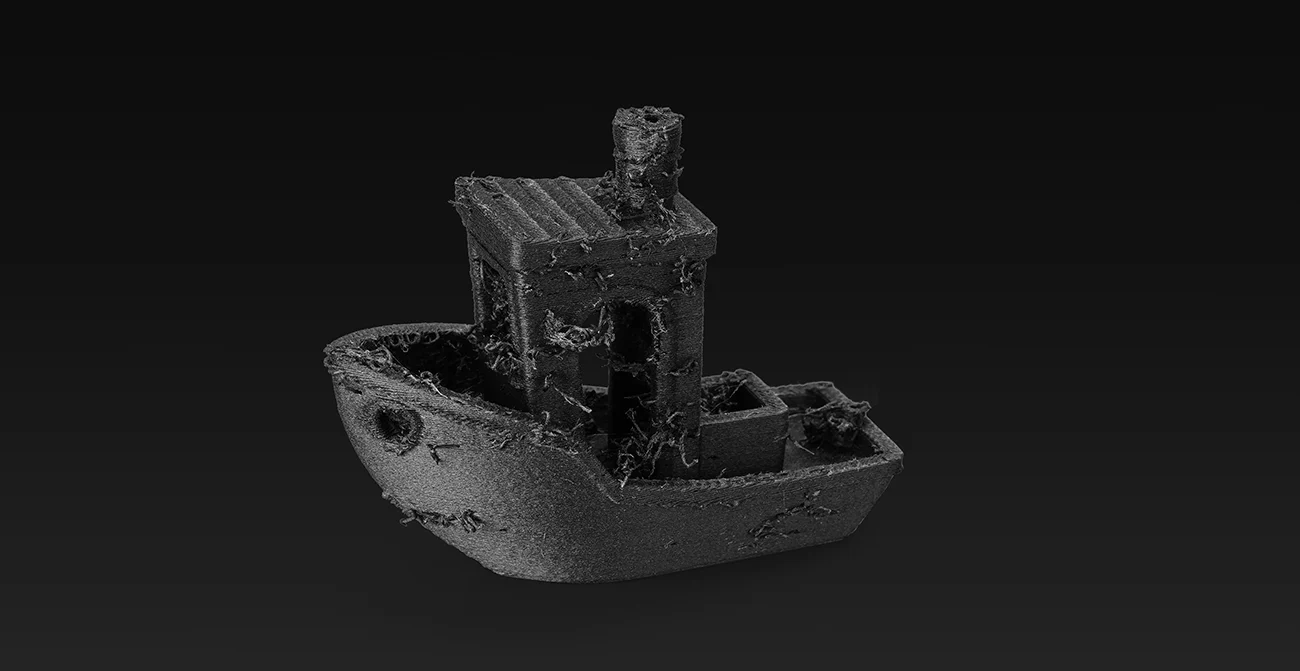

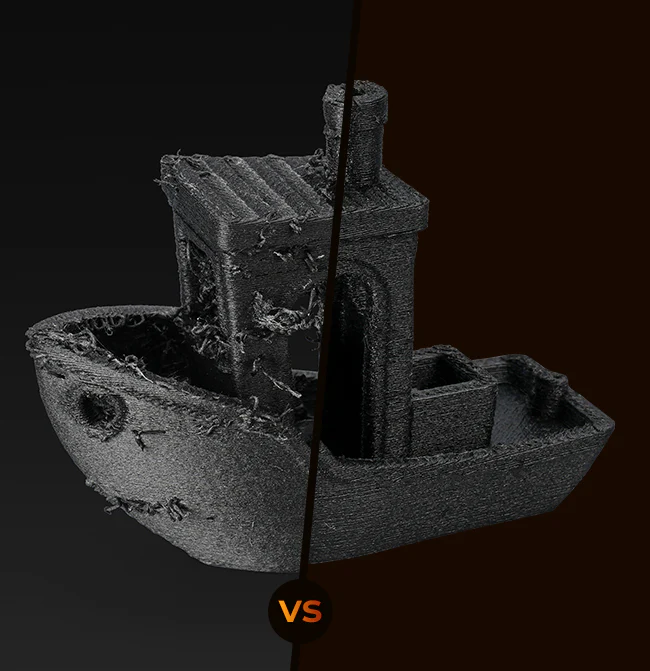

Before Drying

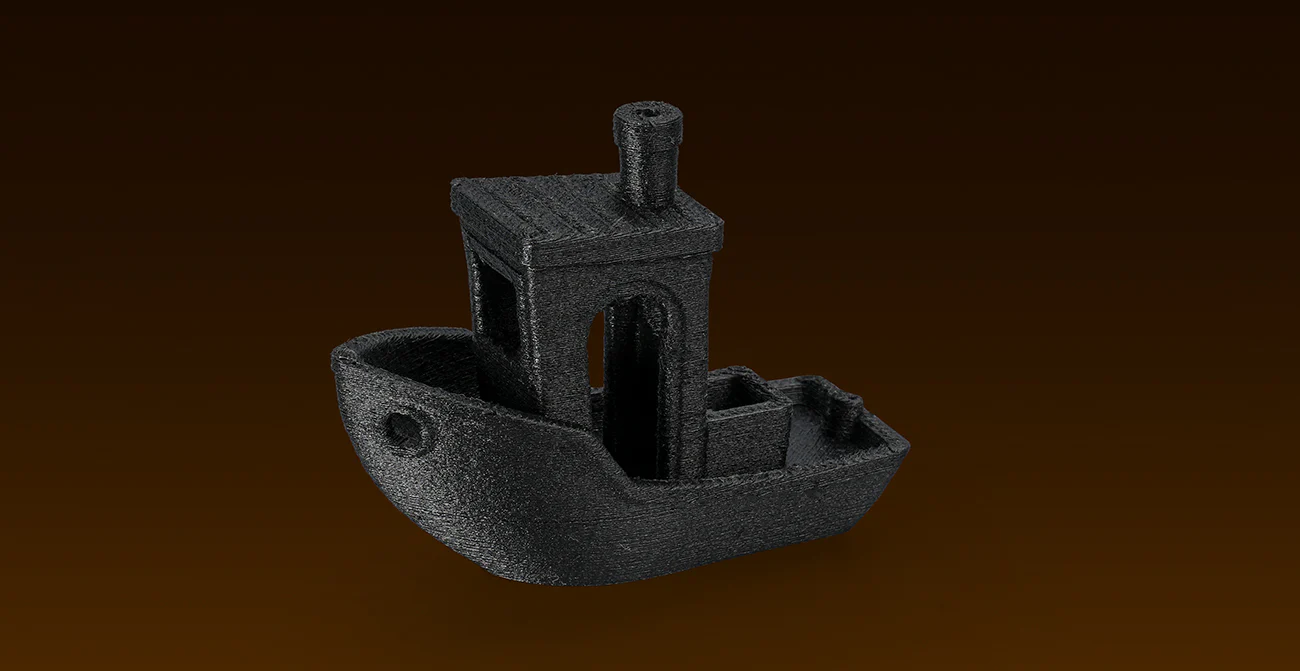

After Drying (70℃-8h)

PA-CF

After Drying (70℃-8h)

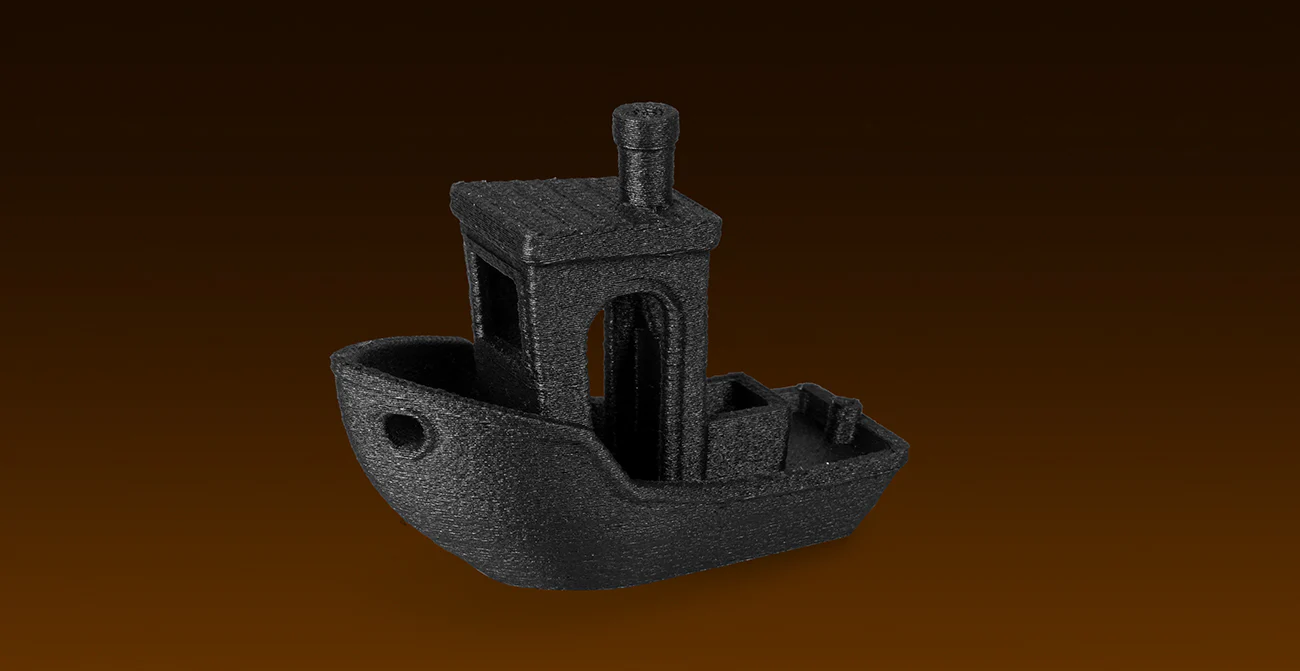

After Drying (85℃-4h)

Recommended Drying Temperatures

*Please refer to the filament manufacturer's recommended drying temperatures for best results.

Filaments
PLA
PETG
TPU
ABS / PET / PC / ASA / PA / PAHT
Temperatures
50℃
60℃
60℃
80℃ ~ 85℃
PLA
PA
TPU
PETG
ABS

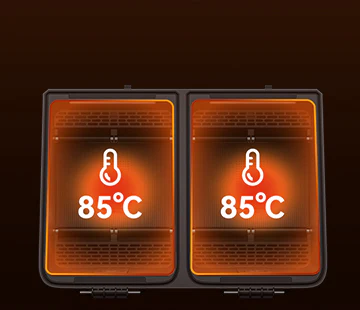

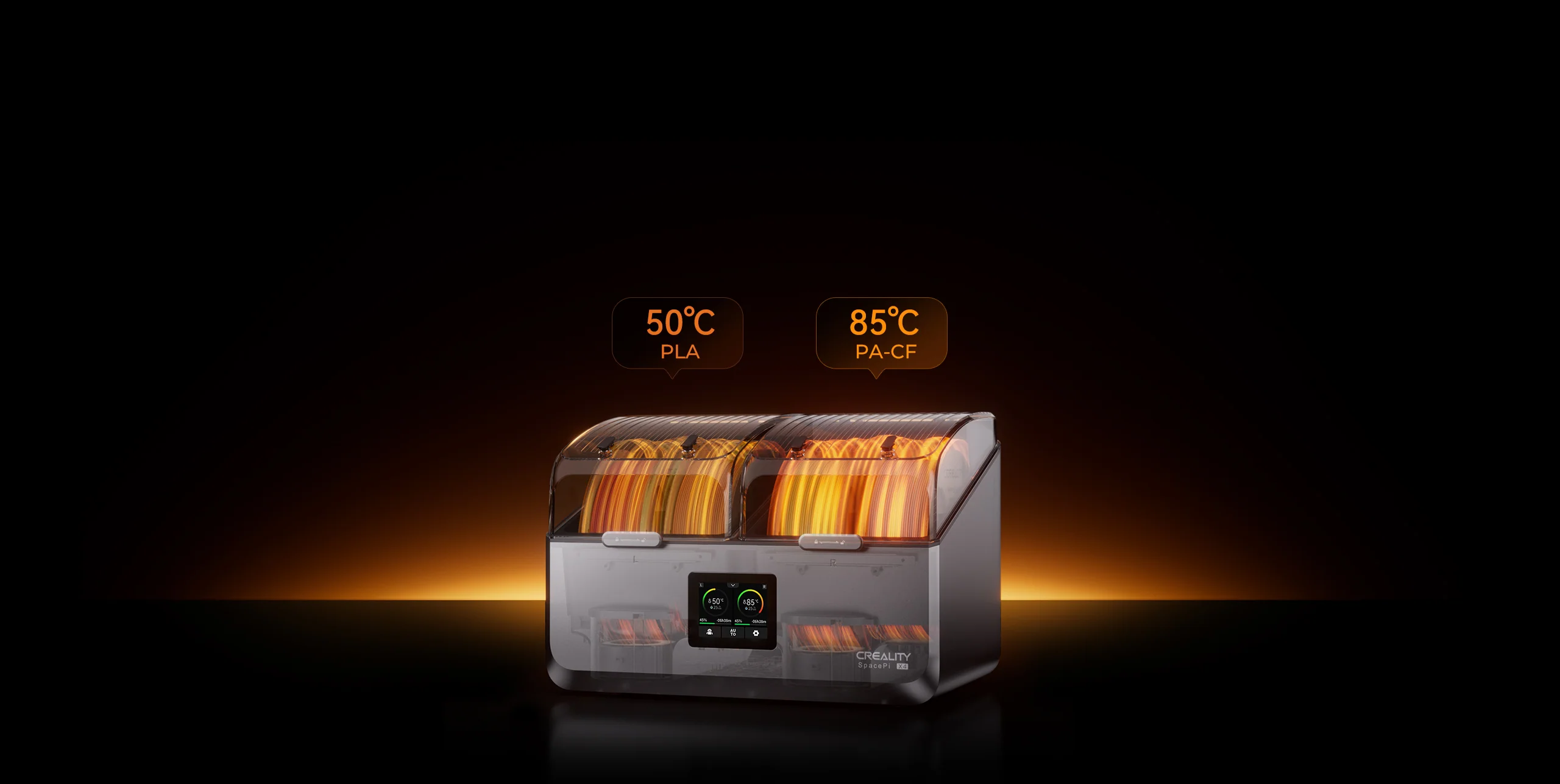

Dual Chambers
Independent Temperature Control

Each chamber is equipped with an independent PTC heater, allowing simultaneous
drying of two filament types at different temperatures in one machine.

*At the same target temperature, the two chambers may have a real-time temperature
difference of 1~5℃ during the heating process, which is normal.

Flexible and Energy-Efficient Drying

You can choose between single or dual chamber modes for energy-efficient
drying. Single-chamber operation saves up to 40% energy, it's eco-friendly and
cost-effective.

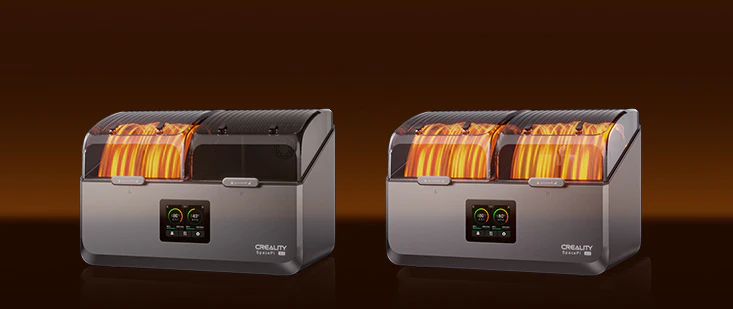

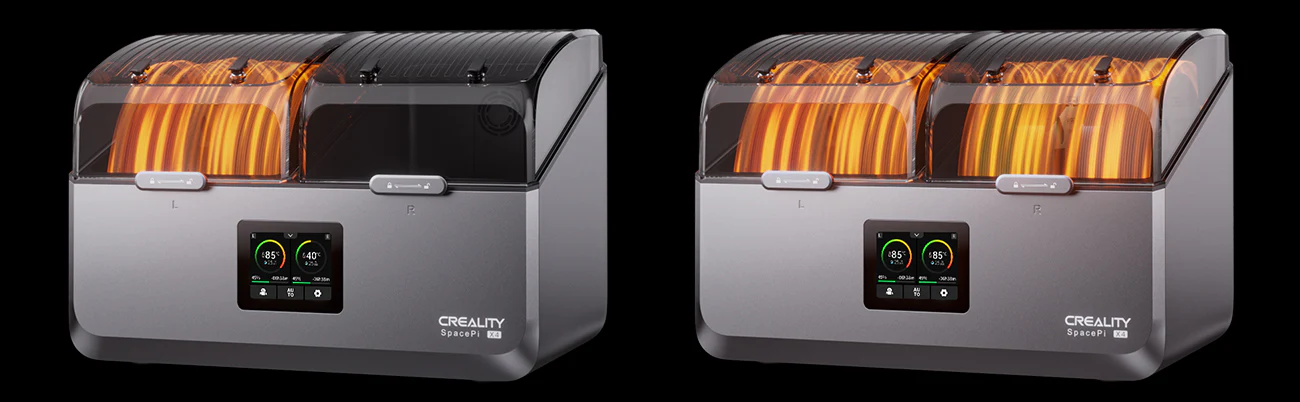

Single Chamber Mode Dual Chamber Mode
Single Chamber Mode:
0.124kWh
Dual Chamber Mode:
0.208kWh
*Target Temperature: 85°C Drying time: 1h

SpaceDry 4.0™

One-stop Drying Solution

The SpaceDry 4.0™ achieves the perfect balance
between efficient dehumidification and energy-saving
drying. Its dual-chamber design significantly reduces
energy consumption while integrating efficient heating,
desiccant regeneration, and active dehumidification to
improve drying/storage capabilities.

Offering a one-stop intelligent drying experience,
SpaceDry 4.0™ sets a new benchmark in drying technology.
10 10

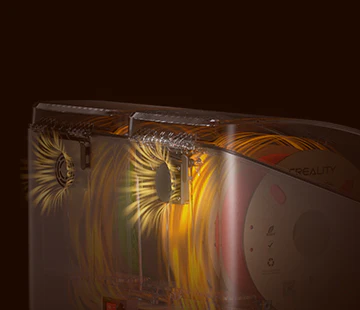

360° Hot Air Circulation

The 360° surrounding hot air circulation ensures
efficient heating and consistent temperature,
allowing for uniform drying of filaments inside the
chamber.

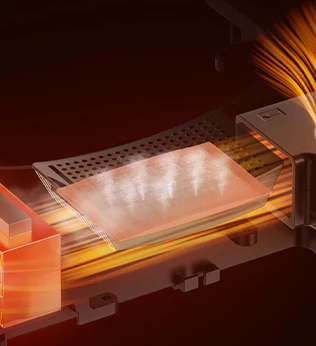

Desiccant Regeneration

The desiccant chamber connects to the heating airflow,
regenerating the desiccant automatically with each use.
No replacement needed, providing a hassle-free and
efficient drying process.

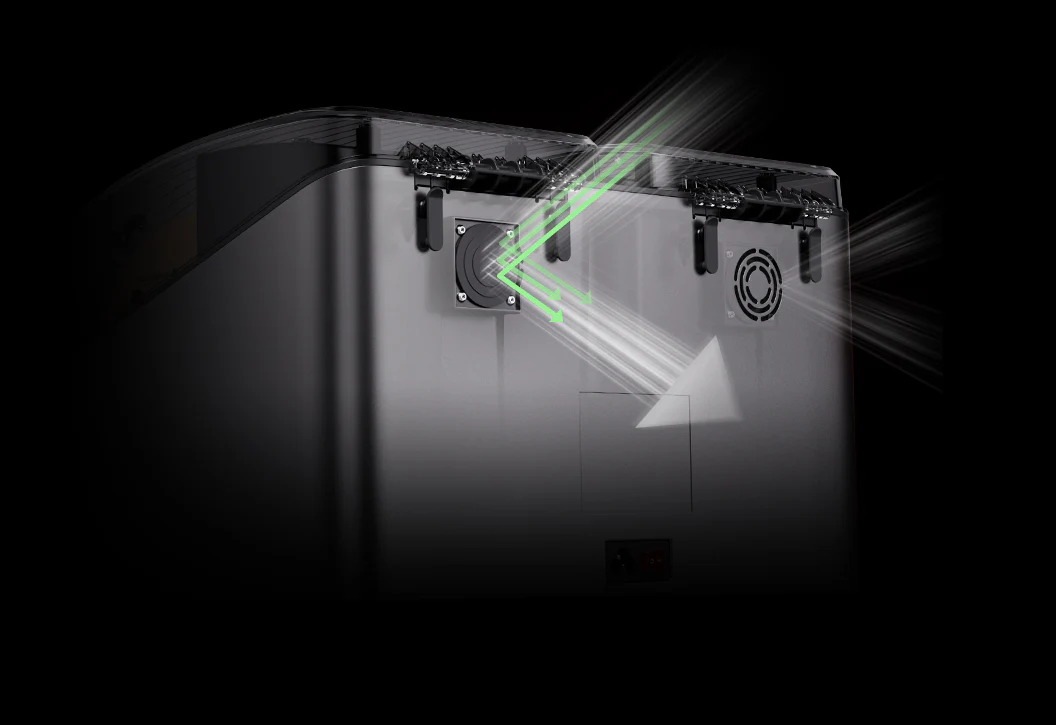

Active Dehumidification

Dual dehumidifying fans actively expel moisture
during drying, no manual dehumidification.


One-Way Valve Design

Ensure air tightness after drying to avoid moisture.

Keep Creativity Dry,
Keep Inspiration Alive!

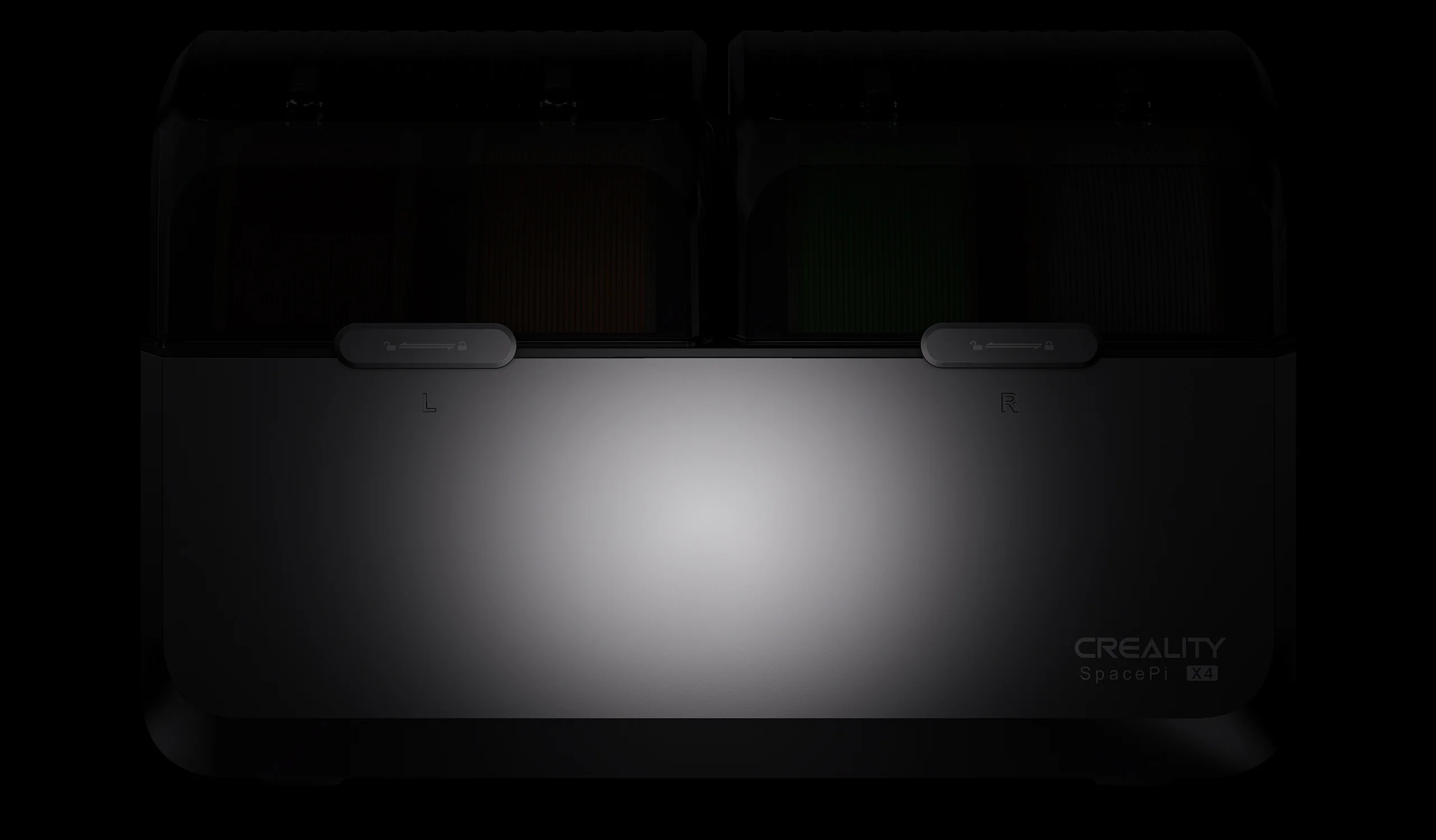

bg3.jpg bg3.jpg

Smarter Drying,
Elevated Printing Experience

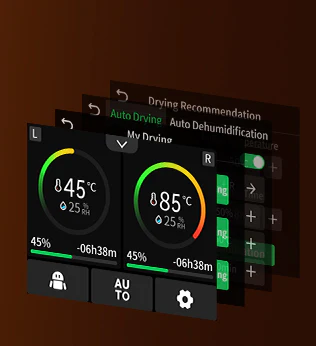

First drying scene touch UI

With an 3.2" touch screen offers a smoother,
more intuitive interaction.

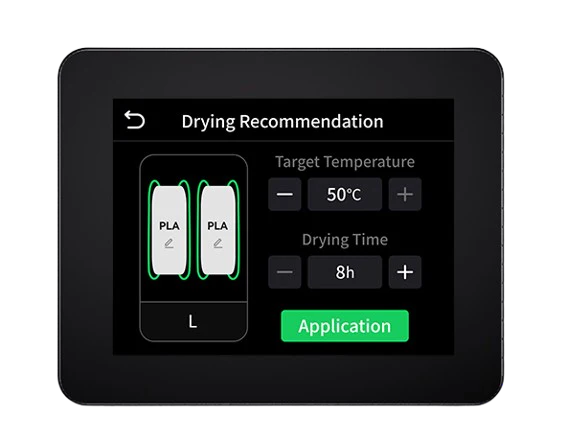

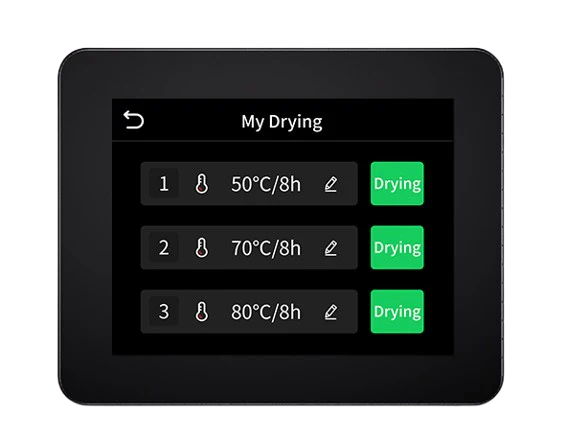

ui1-1.png ui1-2.png ui1-3.png
Drying Recommendations
My Drying

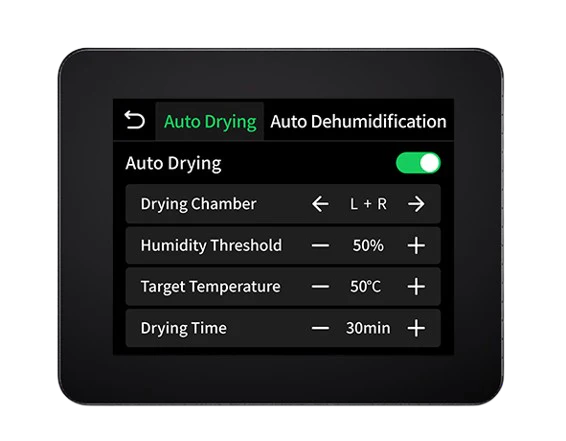

Auto Drying

Recommend appropriate drying temperatures
and times for filament types

Humanized Intelligent Functions

*All features can be toggled on/off according to personal preference

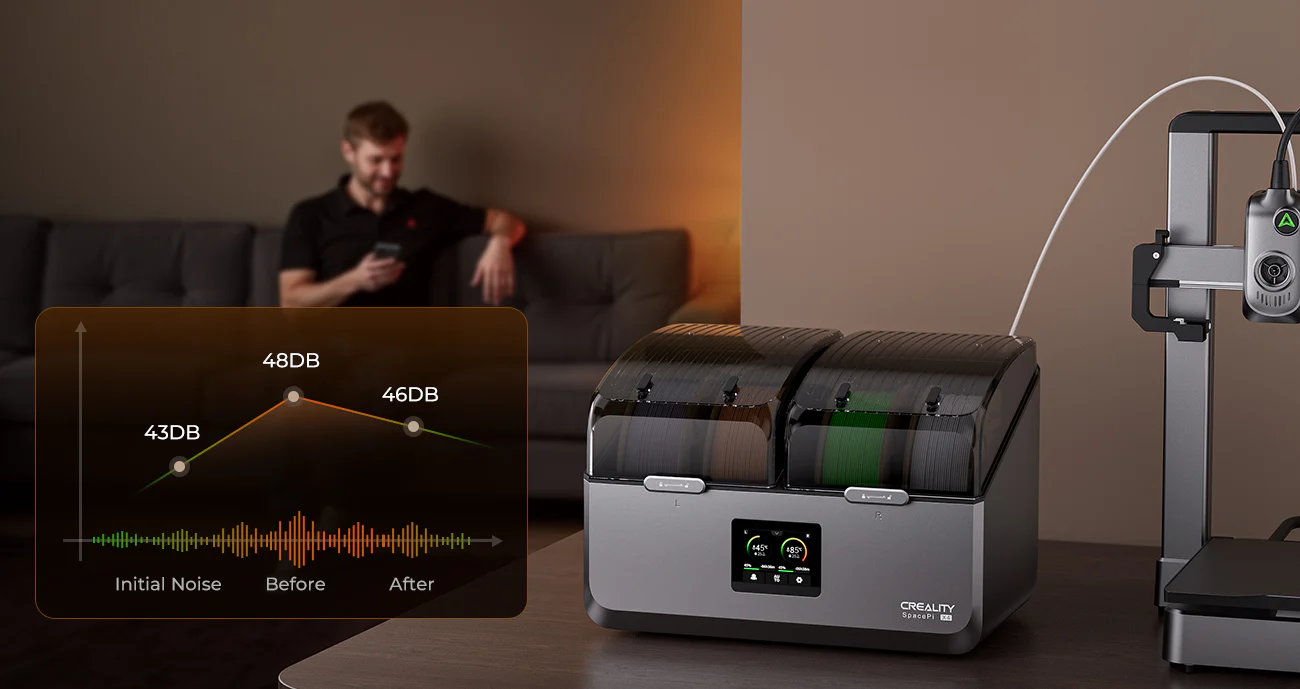

Active Silent.jpg

Once the target temperature is reached, the drying fan speed automatically reduces,
operating quietly without disturbing your peace.

Triple Safety Protection

Intelligent self-checking for early detection of issues, ensuring safe
and worry-free drying.

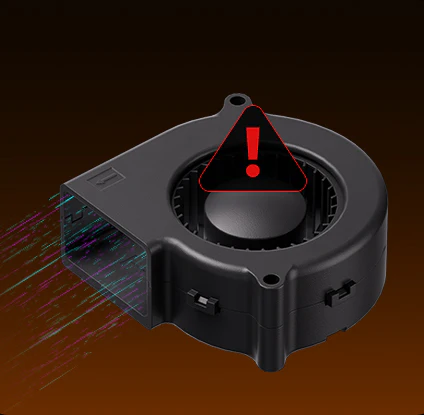

Automatic drying pause if fan
speed is abnormal or interrupted.

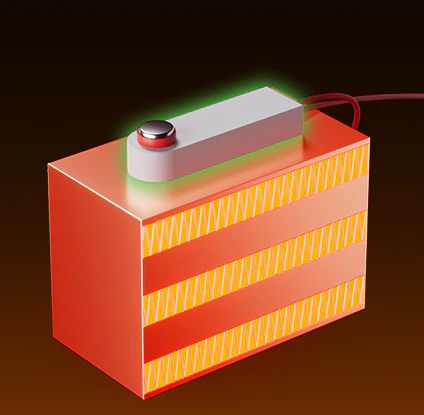

PTC fuse with self-reset: disconnects
at high temperature, reconnects
when normal.

induction.jpg induction.jpg

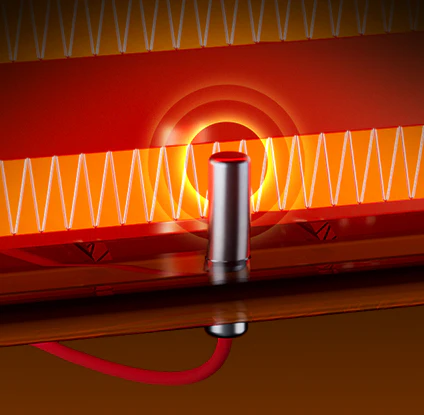

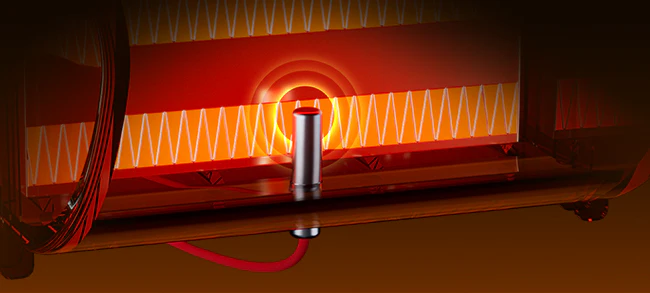

NTC sensor at the air outlet, drying automatically pauses if temperature is abnormal.

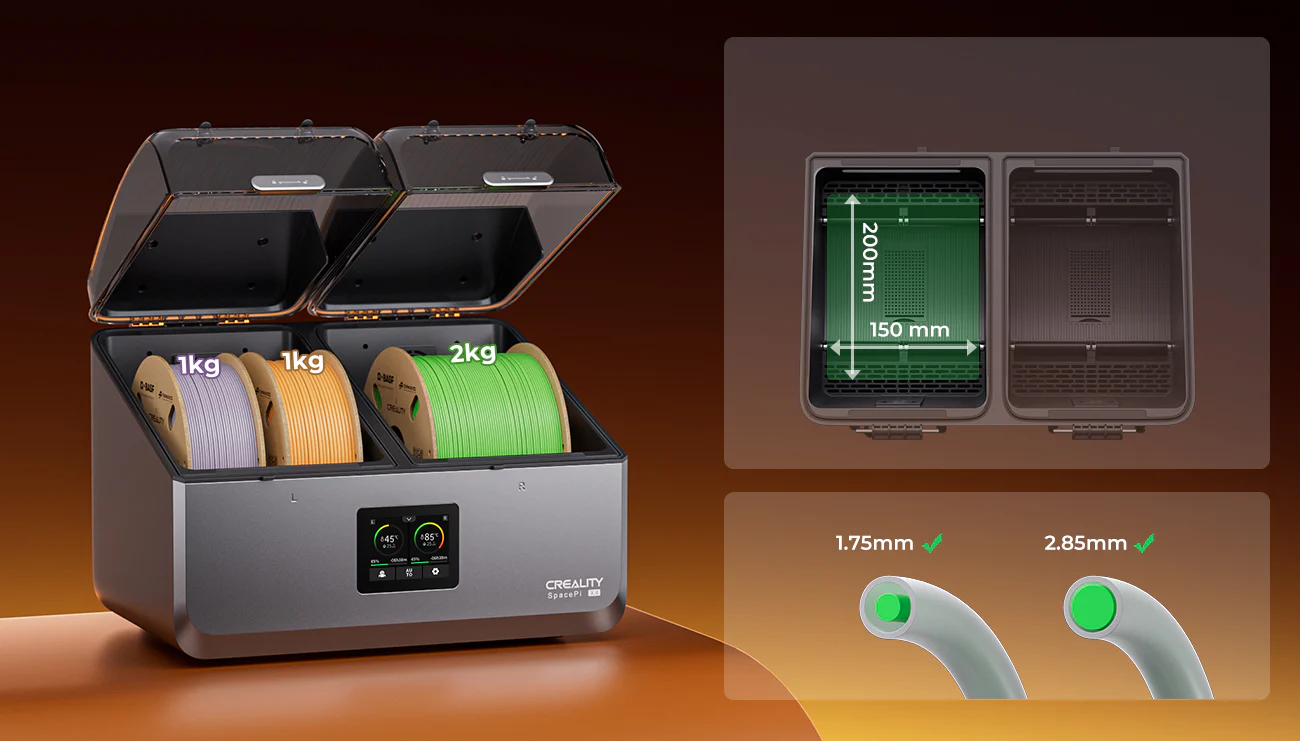

Wide Compatibility

Large size for 1kg/2kg spools.
Works perfectly with all standard filament
diameters 1.75/2.85mm.

Max Spool Size
Diameter ≤ 200mm, Width ≤150mm
17

Quality Details

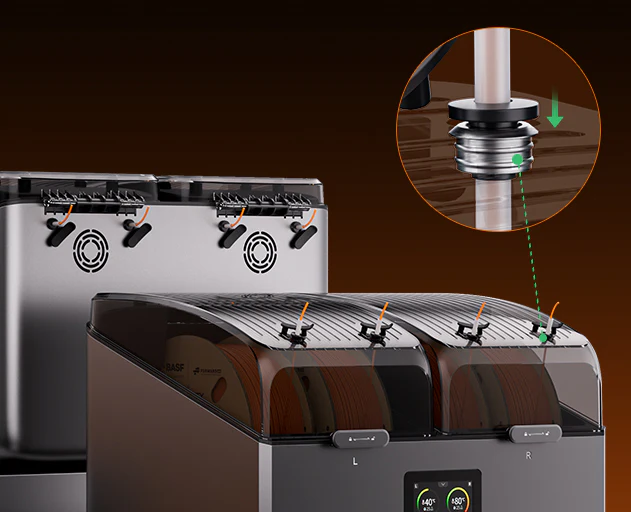

Top_Rear Outlet Design.jpg
PTFE Tube Connector

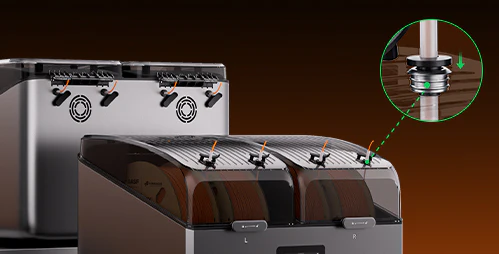

Top/Rear Outlet Design

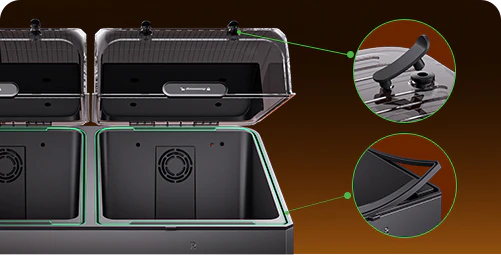

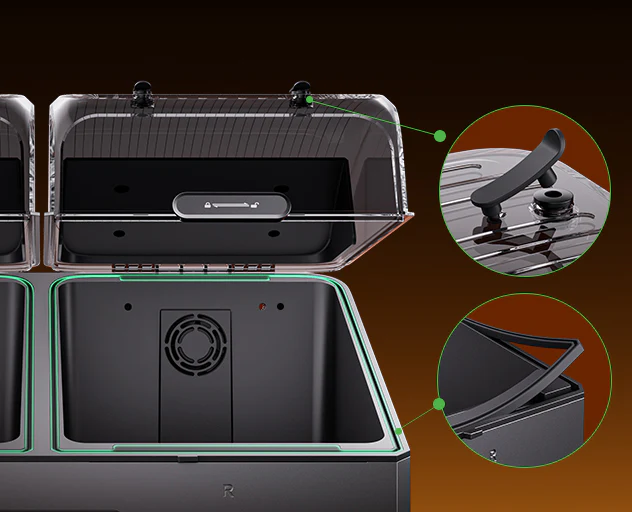

Moisture-proof Sealing Design

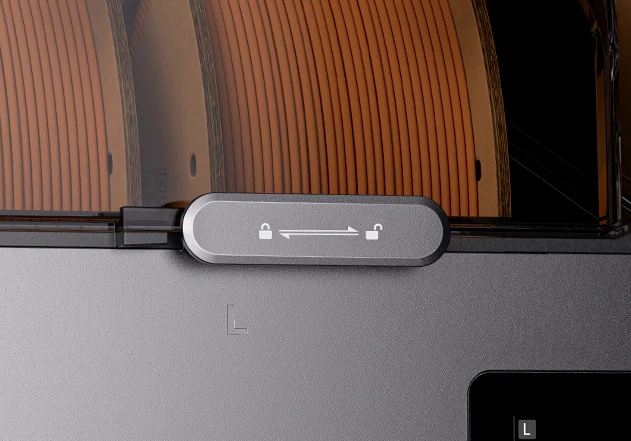

Sliding Lock.jpg

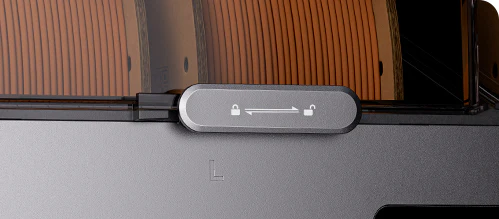

Sliding Lock

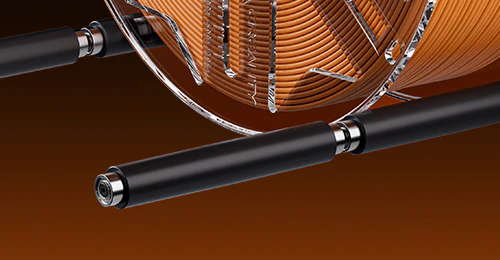

Anti-scalding Roller.jpg

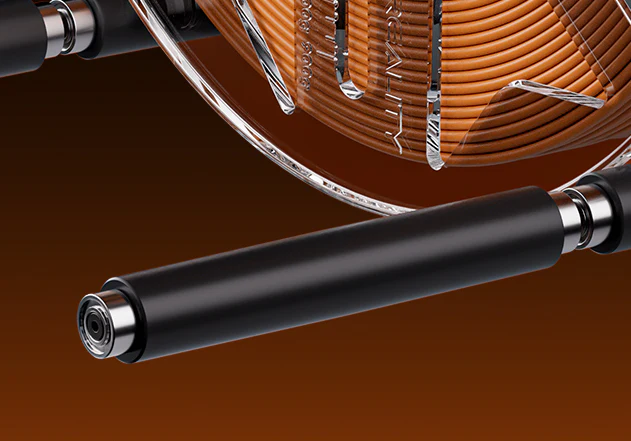

Anti-scalding Roller

Quality Details


Top/Rear Outlet Design


Moisture-proof Sealing Design


Sliding Lock


Anti-scalding Roller

Product parameters

Product name:

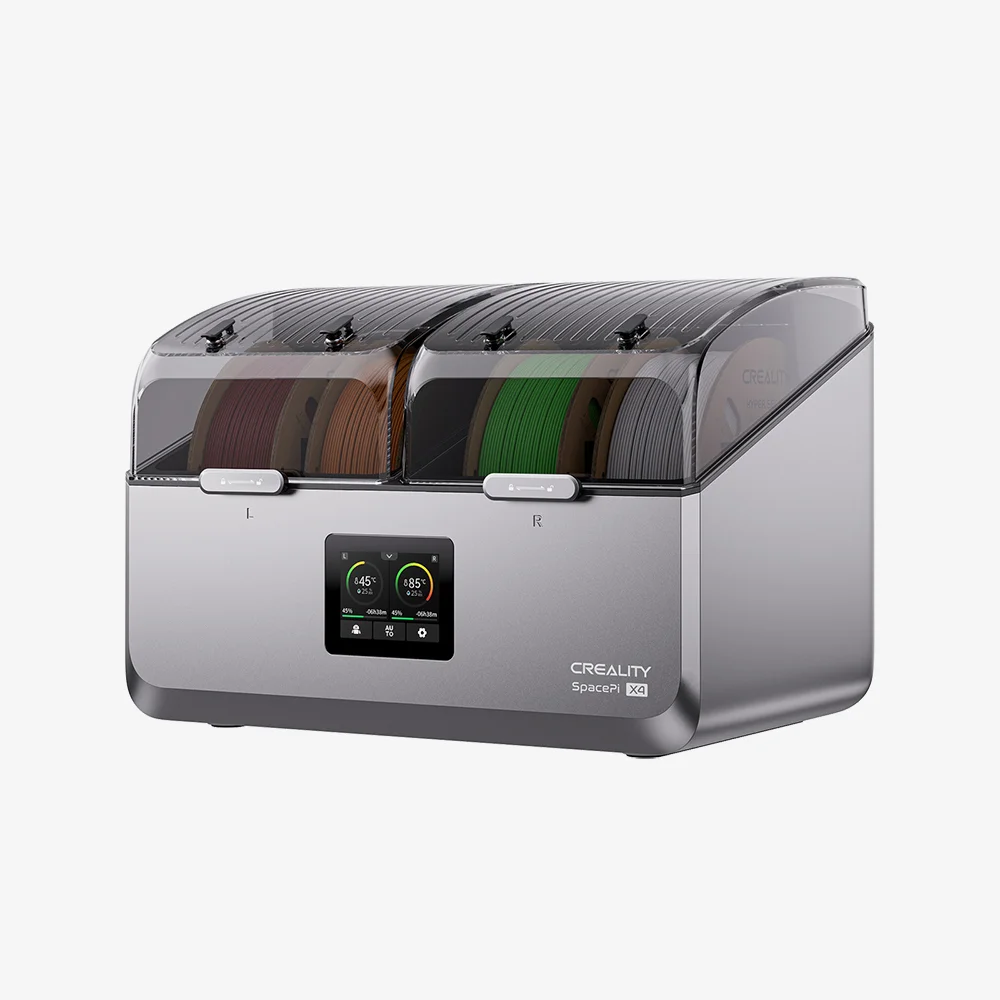

Creality SpacePi X4
Housing Material:
ABS/PA/PC
Product size:
382*290*270mm
Flame Retardant Grade:
UL 94 V-0
Packaging size:
453X350X330mm
Temperature Range:
45-85℃
Product net weight:
5kg
Drying Time:
1-48h
Rated power:
360W
Input Voltage:
UK/GB/EUR/AUS/BRA/CHL/ARG 220-240V~50/60Hz US/JPN 100-120V~50/60Hz
Applicable Filament:
Spool Diameter ≤ 200mm, width ≤ 150mm, wire diameter:1.75/2.85mm

Explore more about SpacePi X4

1. What types of filaments can SpacePi X4 dry?
SpacePi X4 supports drying common filaments like PLA, PETG, ABS, ASA, PET, PA, PAHT, PC, PVA, PP, TPU, and their variations. For best results, follow the drying temperature recommended by the filament manufacturer. Filaments requiring drying temperatures up to 85°C can be dried efficiently. Those needing higher temperatures can still be dried, but with longer drying times.
2. Can I use 3kg or 5kg spools?
As long as the spool diameter is ≤200mm, width ≤150mm, and filament diameter is 1.75mm or 2.85mm.
3. Can I dry filament while printing?
We recommend drying the filament thoroughly before printing. Drying time varies by material—refer to the user manual or the manufacturer’s guidelines. Once dried, you can feed the filament to your printer using a 4mm PTFE tube.
4. Can I use CFS and SpacePi X4 together?
We suggest drying filament fully in SpacePi X4 before transferring it to CFS for printing. While CFS is in use, you can pre-dry and store the next batch in SpacePi X4, improving workflow efficiency without occupying CFS resources.
5. Can I store filament in SpacePi X4 when it’s not drying?
Absolutely! SpacePi X4 functions as a sealed storage unit, keeping filaments dry even when not actively heating. Its airtight design and built-in desiccant help maintain low humidity for long-term filament protection.
