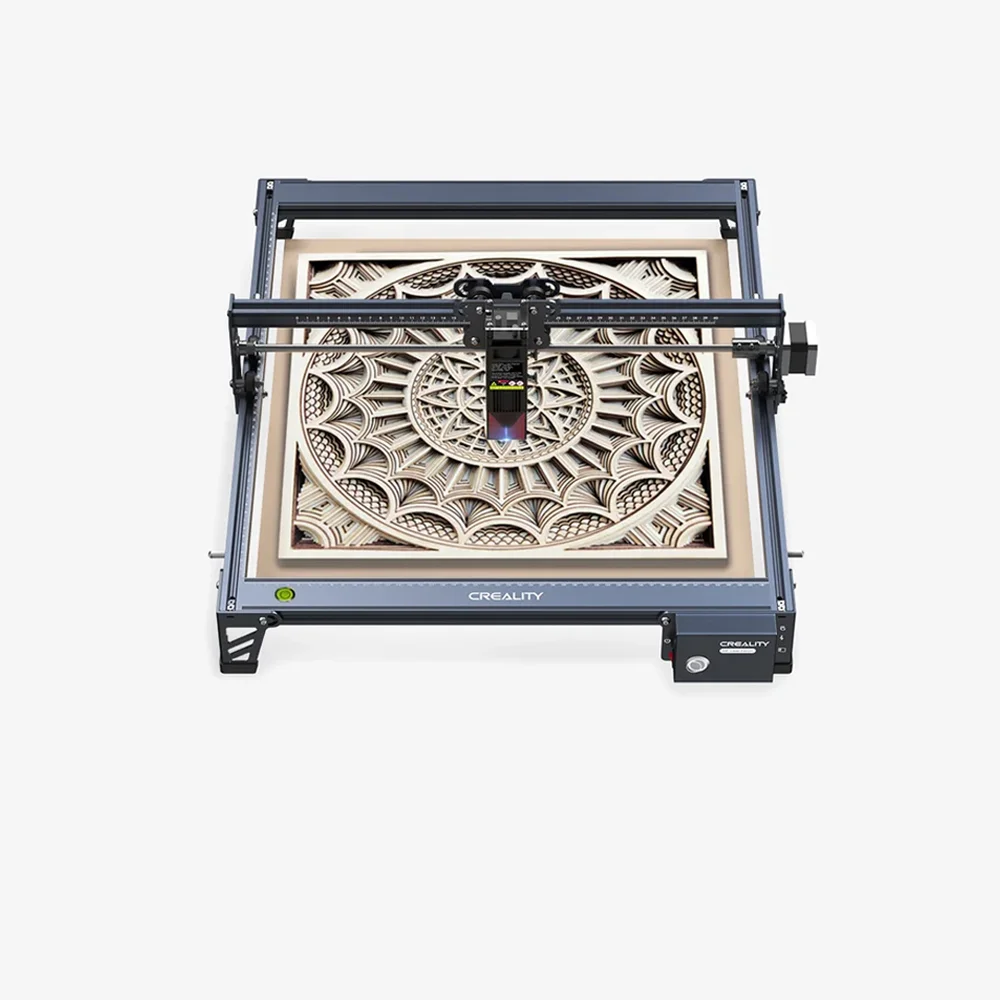

CR-Laser Falcon 10W
Ultra Accurate and Fast Laser Engraver & Cutter
0.06*0.08mm
ultra-fine laser spot
ultra-fine laser spot
Super speed up to
10000mm/min
10000mm/min
Large work area
400*415mm
400*415mm
Processing
300+materials
300+materials
Cut 6mm woodboard
in one pass
in one pass
Easy to
operate
operate
Laser Engraving with
High Precision
Advanced Compresssed-spot Technology Delivers Finer Details, Whether in Engraving or
Cutting.
0.06*0.08mm
Showing Precise Details

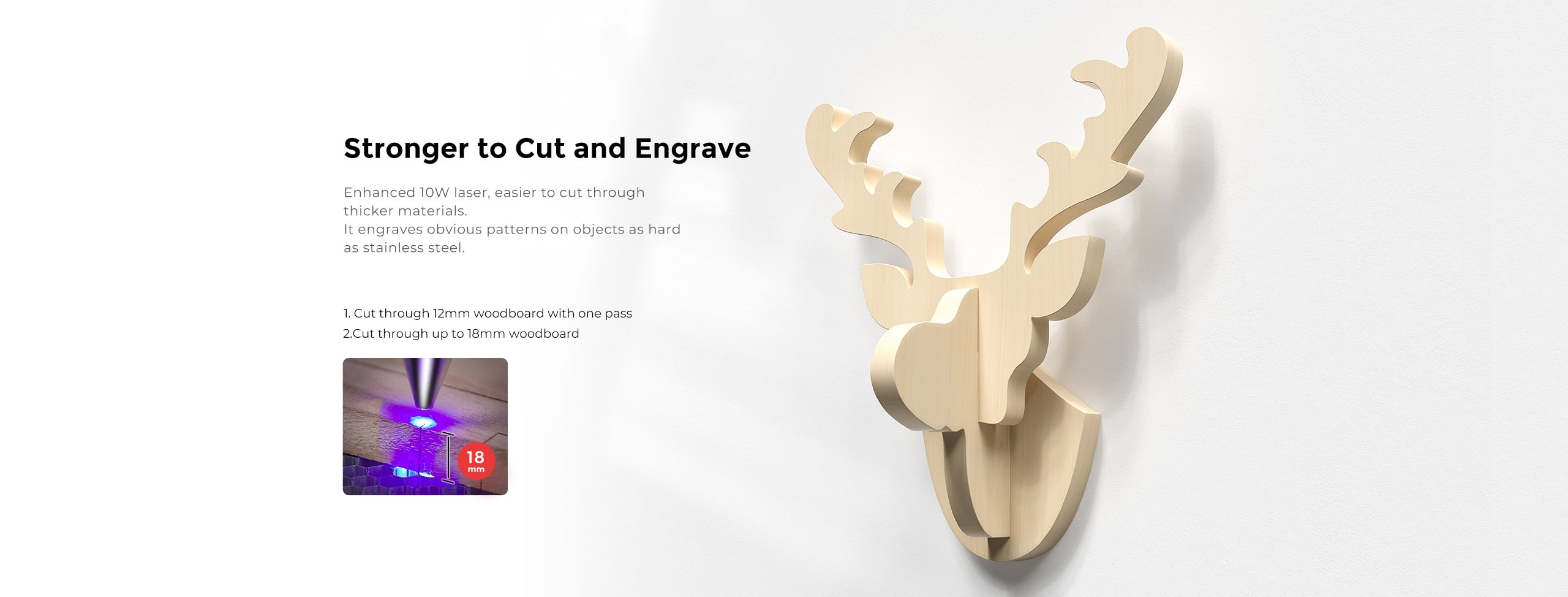

10W Powerful Output Cleaner Cutting Ability
One Pass: 5mm black acrylic
One Pass: 6mm basswood
Higher Productivity at Higher Speed
10000mm/min

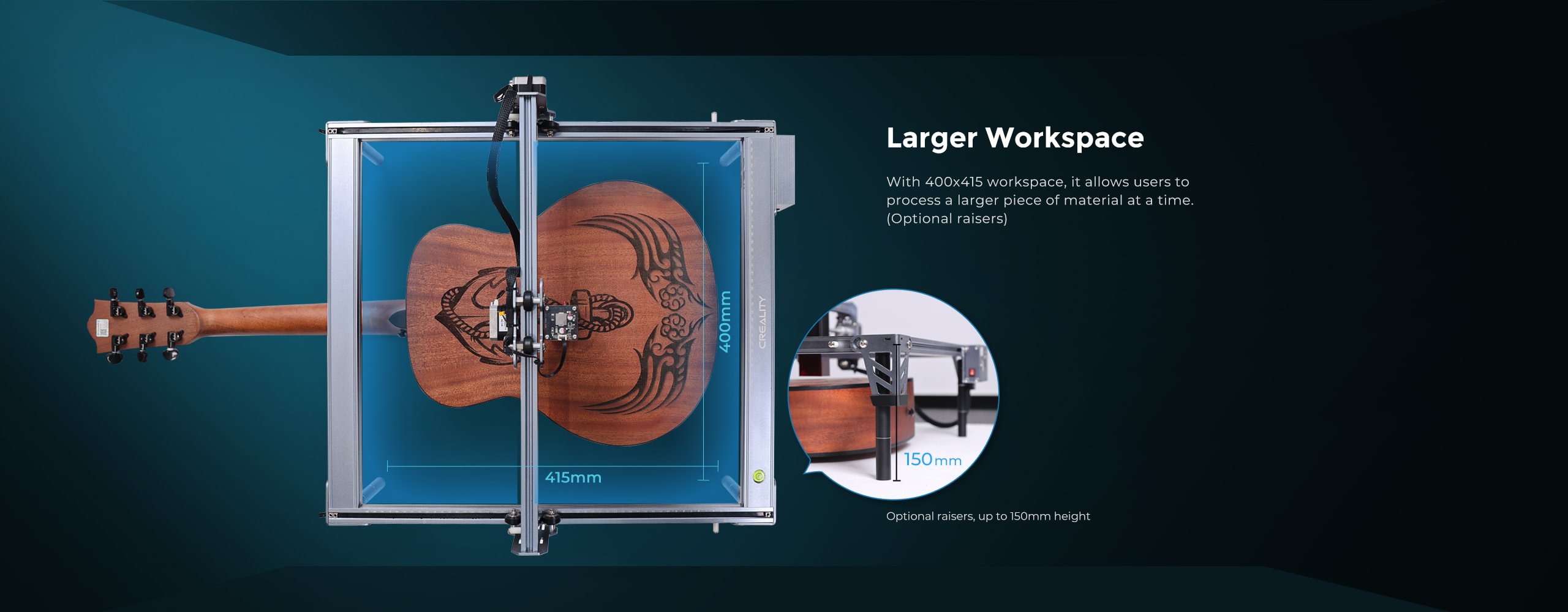

Larger Engraving Area
Allows you to engrave more patterns at once,
easy to use and more efficient.
easy to use and more efficient.
Working Area: 400*415mm

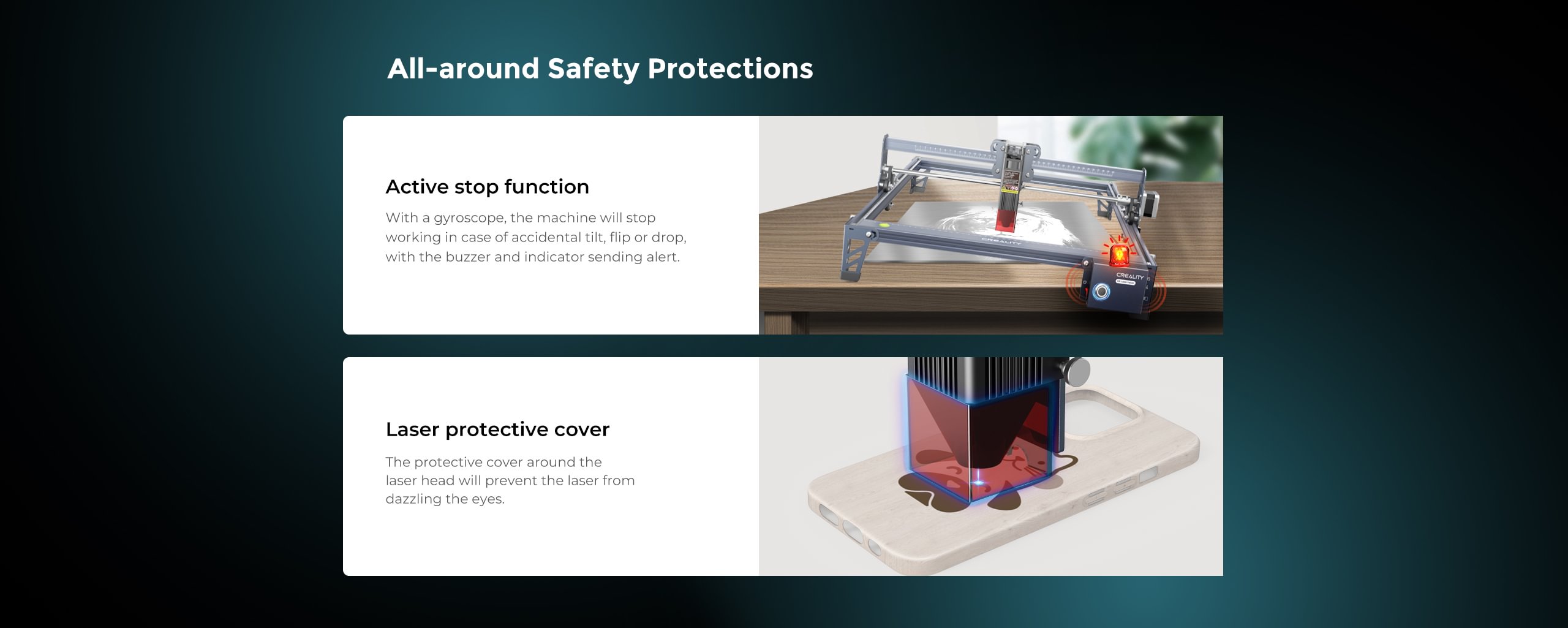

All-round Safety Guarantee
Optional Risers & Rotary Roller,
for More Needs
Cutting through thicker materials, customize your big objects to make them cooler,
engrave most cylinders and spheres to make unique wine glasses and custom rings.
engrave most cylinders and spheres to make unique wine glasses and custom rings.

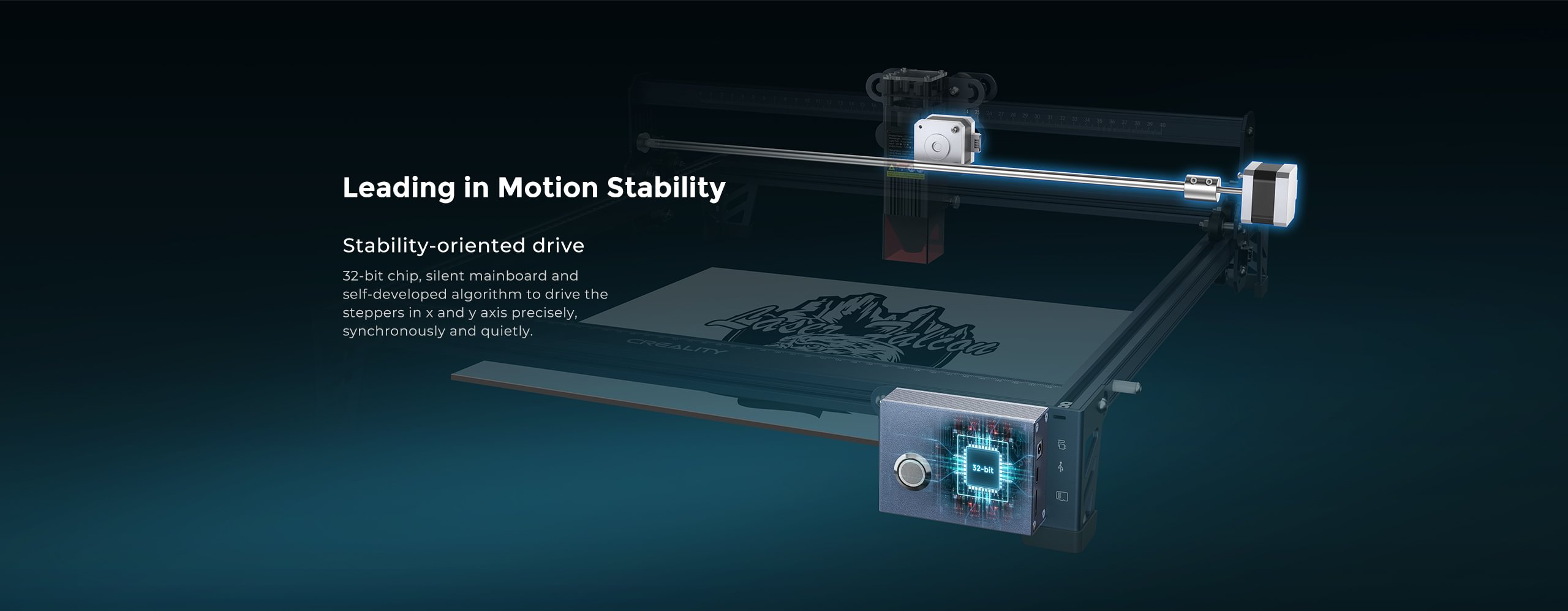

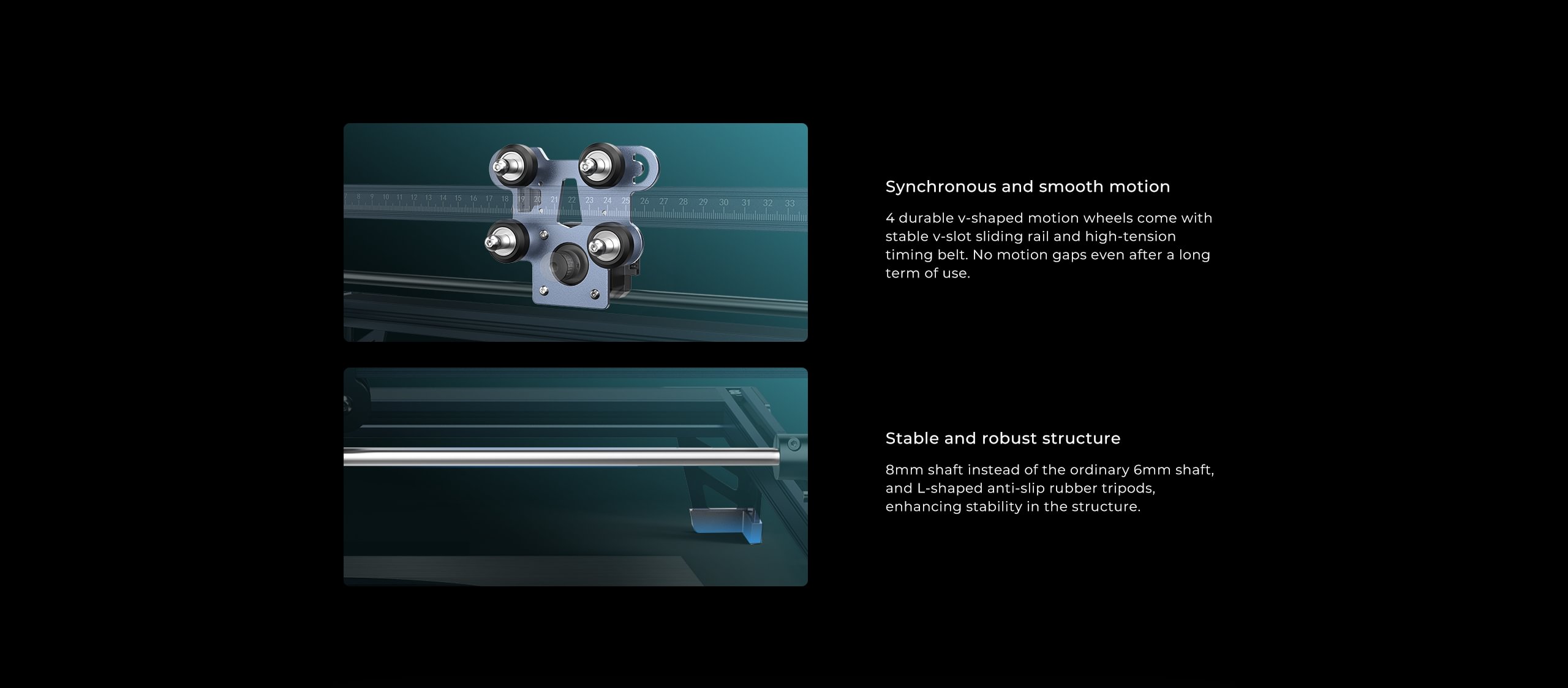

Leading in Motion Stability
The wheels and shafts with strong belt help CR-Falcon reduce fractions to
achieve ultra-high motion accuracy, and improve engraving and cutting accurcy to 0.01mm.
achieve ultra-high motion accuracy, and improve engraving and cutting accurcy to 0.01mm.
CrealityFalcon
Others
Reinforced, Strong and High Speed
Largely Improved Engraving Motion Accuracy to .01mm
V-shaped Motion Wheels
Synchronous Belt
Smooth Shafts

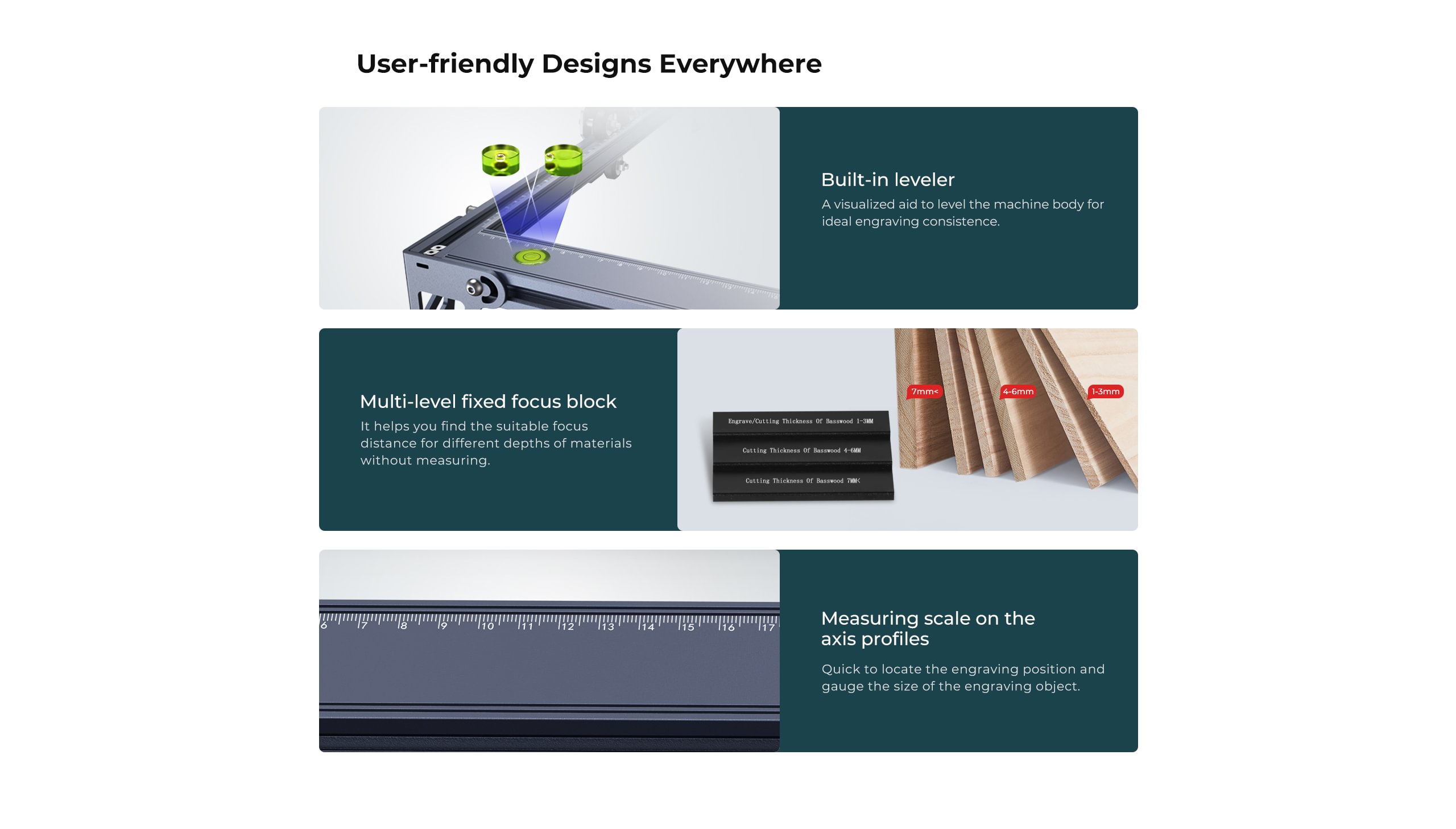

Every Detail Matters

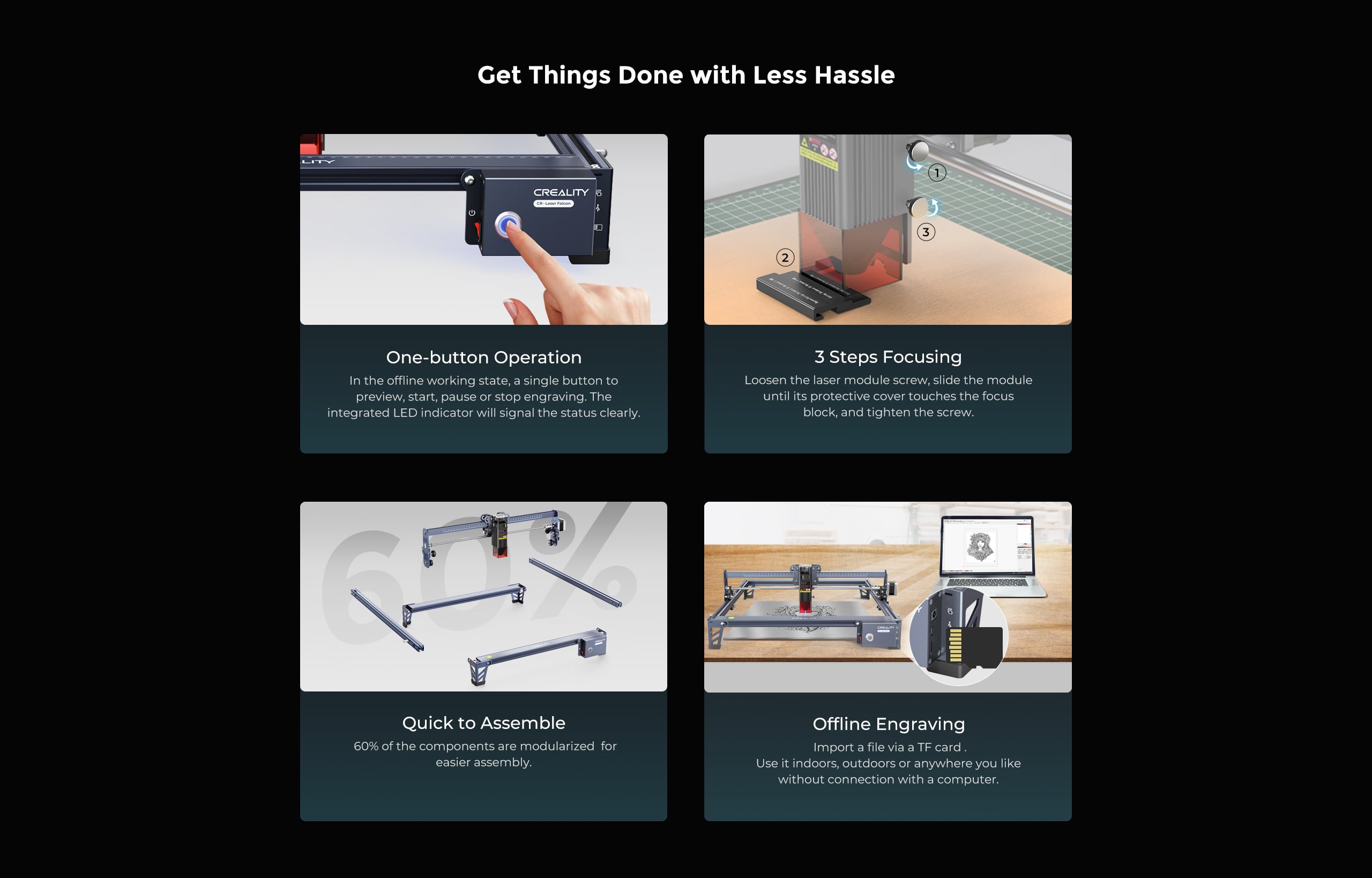

3 Steps Focusing
1
Loosen the laser
module screw.
module screw.
2
Slide the module
until its protective
cover touches the
focus block.
until its protective
cover touches the
focus block.
3
Tighten the screw.
Pioritize Your Rights
14-Day Money-Back
Guarantee
Guarantee
12-Month
Manufacturer's
Warranty
Manufacturer's
Warranty
Various After-sale
Tutorials
Tutorials
Vibrant User
Community
Community
More...
Work with 300+ materials
Thumbs Up Ratings
from Falcon Users

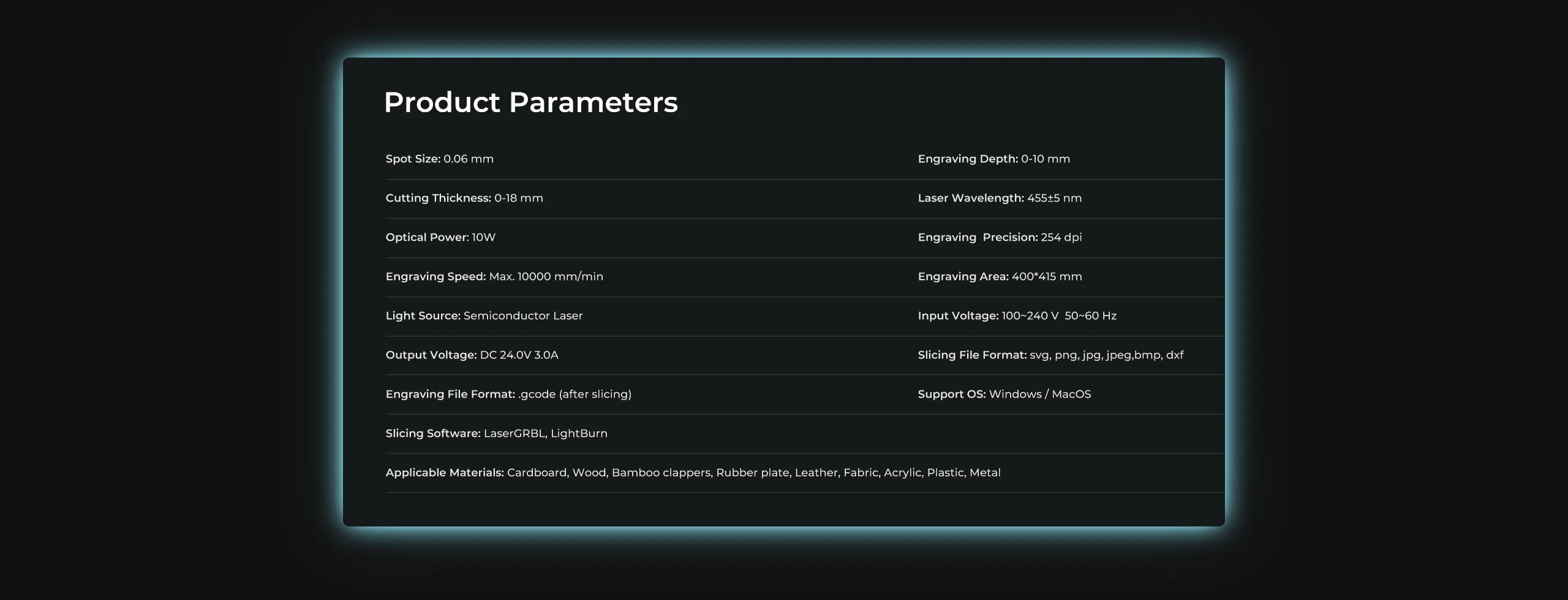

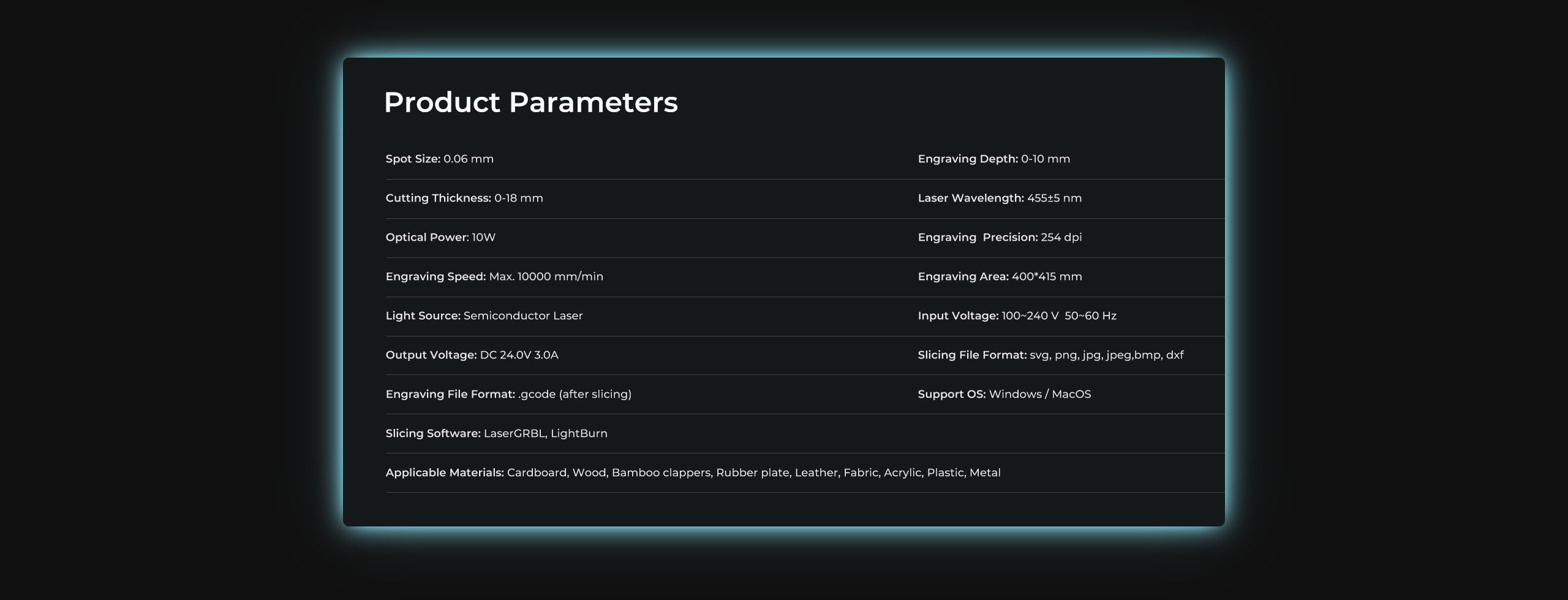

Product Specifications
Type
CR-Laser Falcon 5W
CR-Laser Falcon 10W
Falcon Pro 10W
Buying Guide
0.06*0.06mm fine laser spot enables high-precision engraving.
Falcon 10W can achieve high-precision engraving, also it cuts 6mm wooden
boards and 5mm black acrylic at one pass, to unlock various creations.
Falcon Pro 10W adds the air assist. The real-time airflow cools
the engraving and cutting process, reducing coking and producing a more beautiful result.
Optical Power
5W
10W
10W
Cutting Ability
3mm basswood in one pass
6mm Basswood in one pass
6mm basswood in one pass
Engraving Area
400mm*415mm
400mm*415mm
400mm*415mm
Laser Source
Diode Laser
Diode Laser
Diode Laser
Laser spot
0.06*0.06mm
0.06*0.08mm
0.06*0.08mm
Laser Wavelength
455±5nm
455±5nm
455±5nm
Laser Class
Class 4 (FDA)
Class 4 (FDA)
Class 4 (FDA)

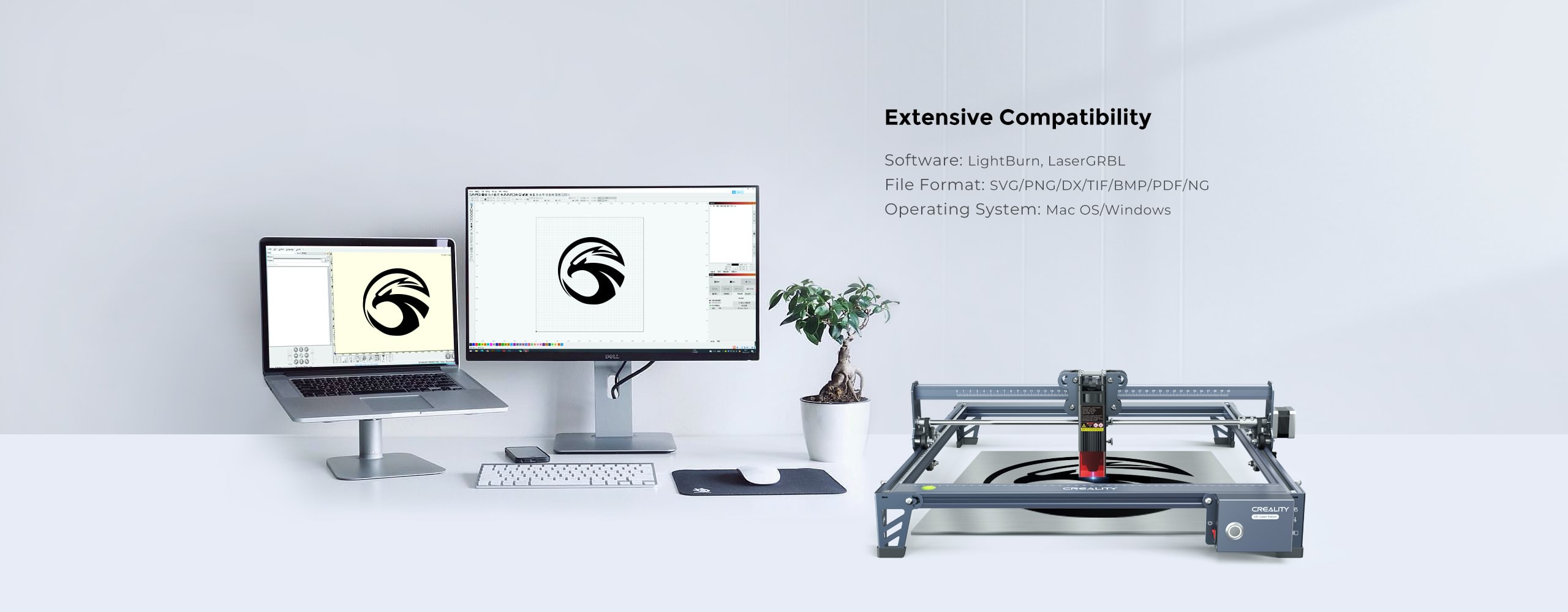

Laser Engraving Software
LightBurn、LaserGRBL
LightBurn、LaserGRBL
LightBurn、LaserGRBL
Operating System
Windows /MacOS
Windows /MacOS
Windows /MacOS
Supported File Formats
Jpeg, jpg, png, bmp, svg, dxf, etc.
Jpeg, jpg, png, bmp, svg, dxf, etc.
Jpeg, jpg, png, bmp, svg, dxf, etc.
Supported Materials
Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc.
Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc.
Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc.
Operating Temperature
5℃-35℃
5℃-35℃
5℃-35℃
Product Size
568*632*198mm
568*632*198mm
568*638*198mm
Equipment Weight
3.2kg
3.2kg
5.6kg
Input Voltage
100-240V~ 50-60Hz
100-240V~ 50-60Hz
100-240V~ 50-60Hz
Output Voltage
DC 24.0V 3.0A
DC 24.0V 3.0A
DC 24.0V 3.0A
