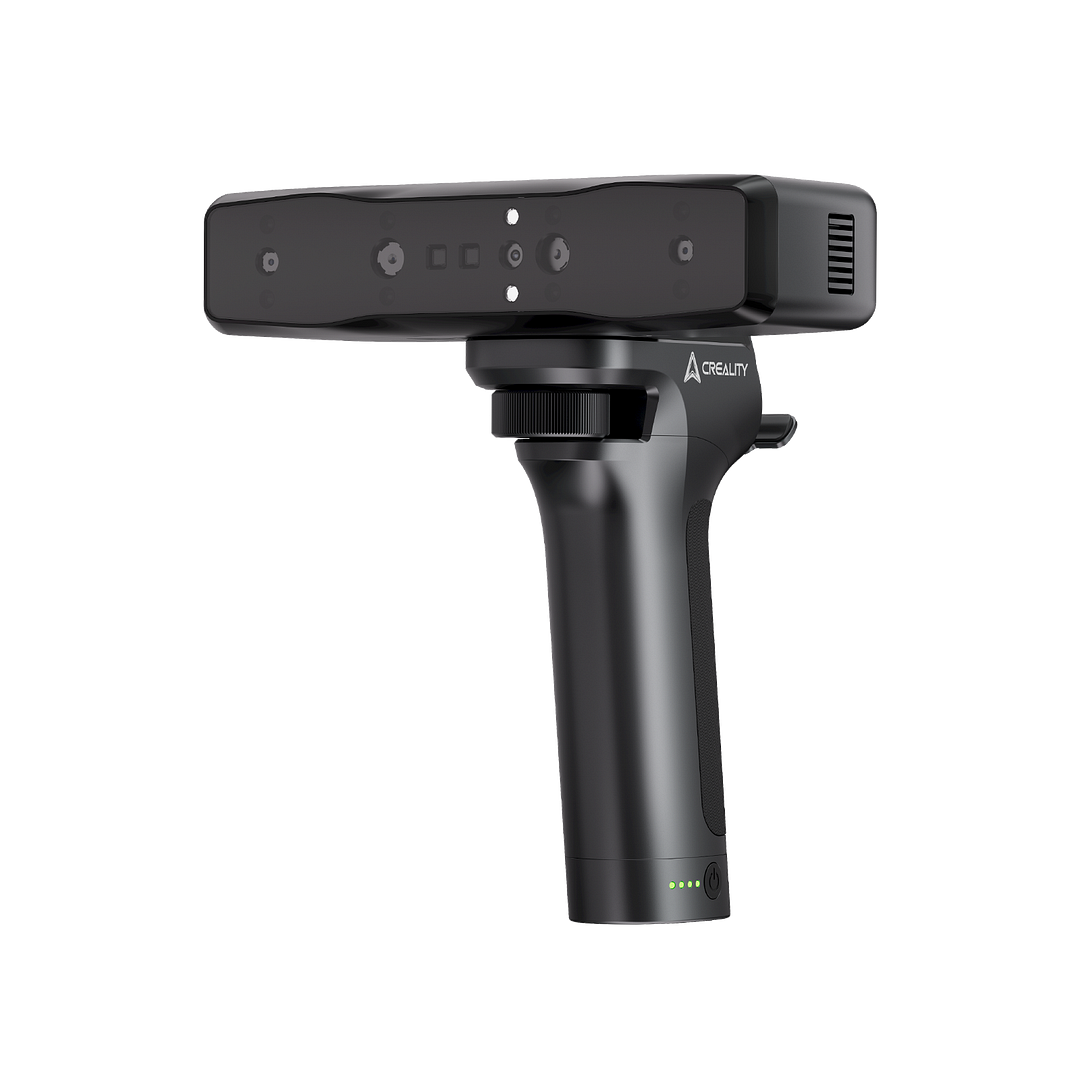

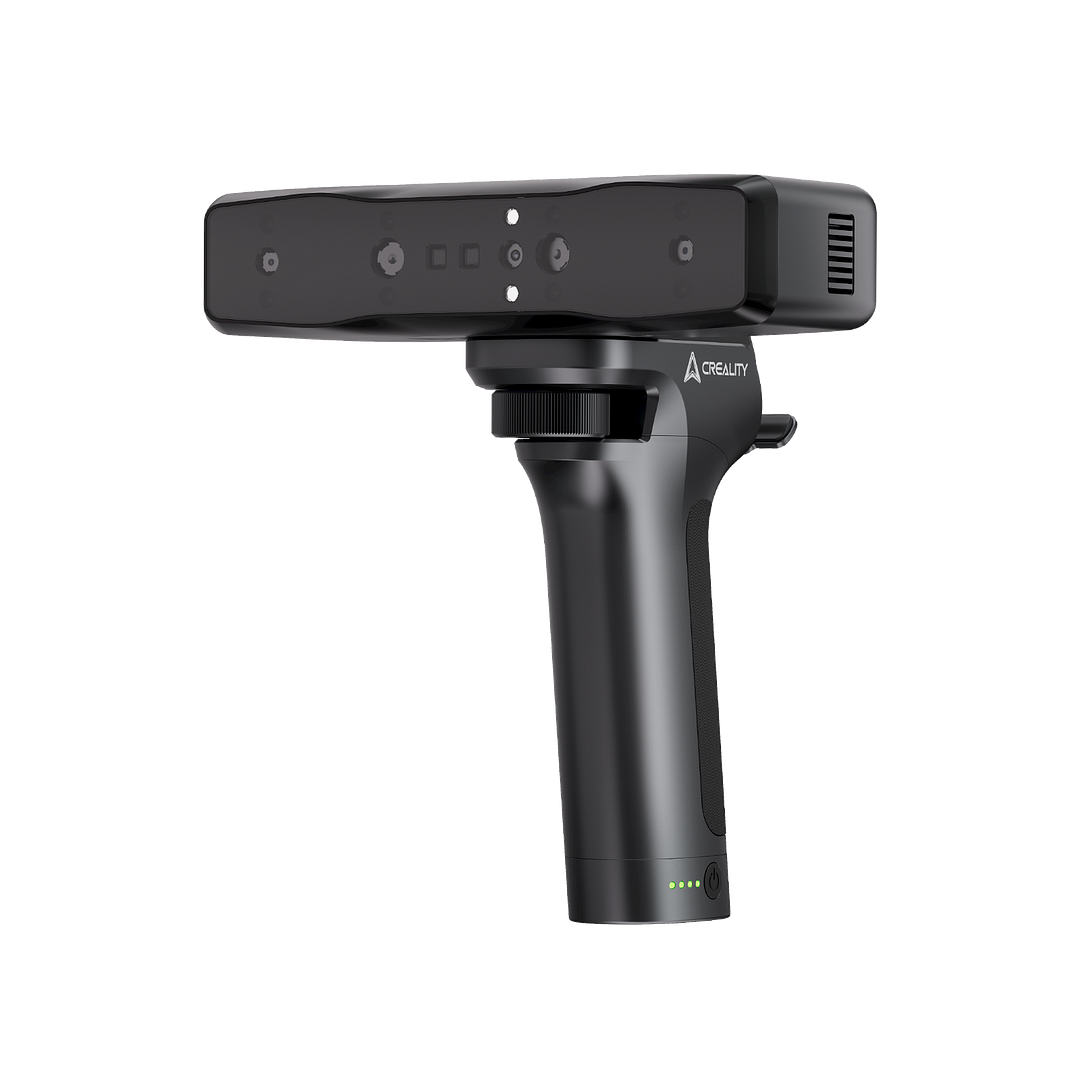

Creality Otter Lite

Name: Otter Lite 3D Scanner
Price: 99999 USD
Availability: InStock

Buy Now

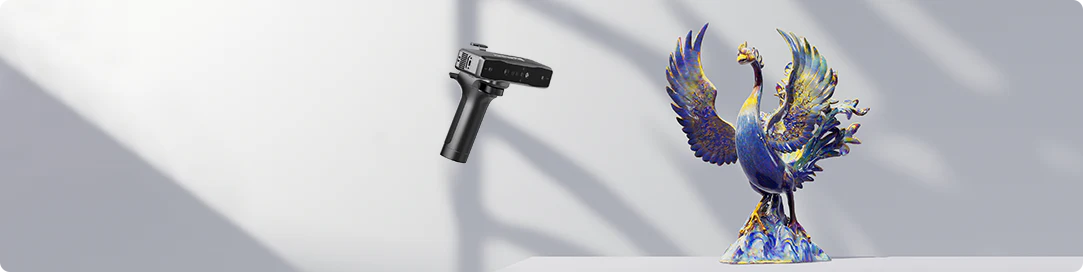

Creality Otter Lite

True Wireless, Truly Limitless

Key Features

Wireless
Scanning

Innovative 4-lens
Stereo Vision

0.05

Up tomm

Accuracy

20-2000mm
Objects between

Scanning Speed
up to 30fps

Intuitive Software

Scan Black/Metal Objects
without Spraying

24-Bit Full-
Color Scanning

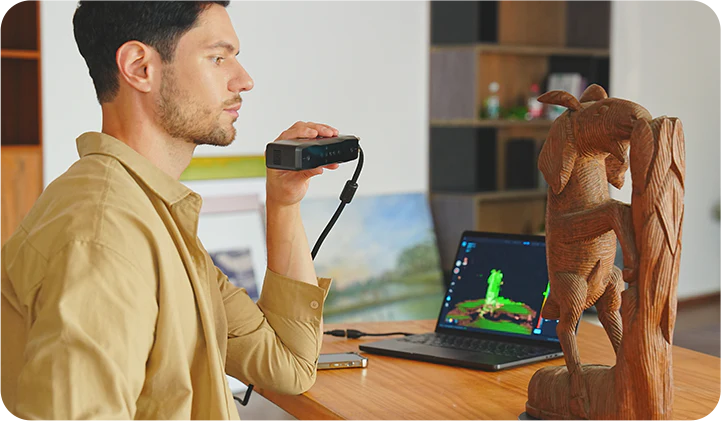

Cut the Cords, Scan Freely.

Scan data streams to your phone in real time for mobile preview and control.

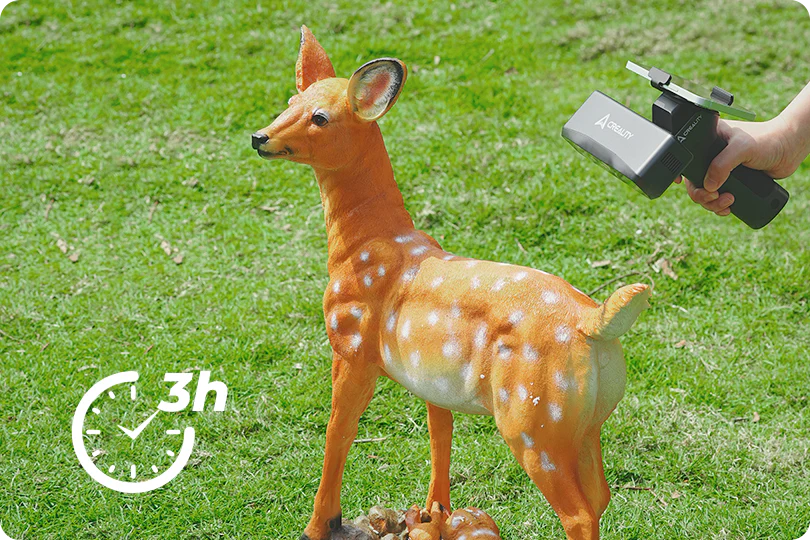

3-Hour Endurance

The Lite Bridge handle's built-in battery powers extended scanning sessions, even for large-scale projects.

Ready to Scan, Right Away

No extra purchases needed—unbox and start creating wirelessly.

Various Size Options

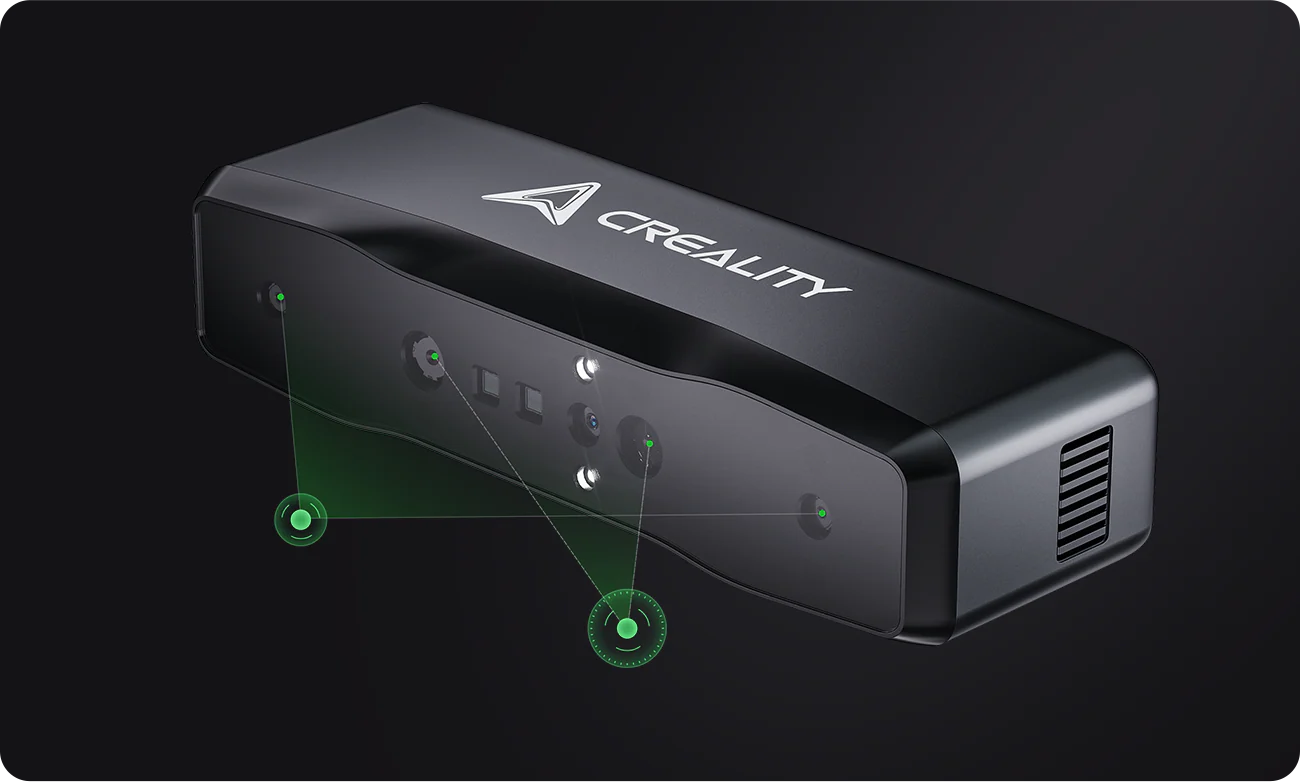

Innovative Four-lens Stereo Vision

Proficient in handling both large and small scans. Two sets of dual lenses, catering to details and various sizes A set of long-focal dual lenses for scanning small objects, providing richer details; a set of short-focal dual lenses for scanning large objects, covering a wider range of sizes.

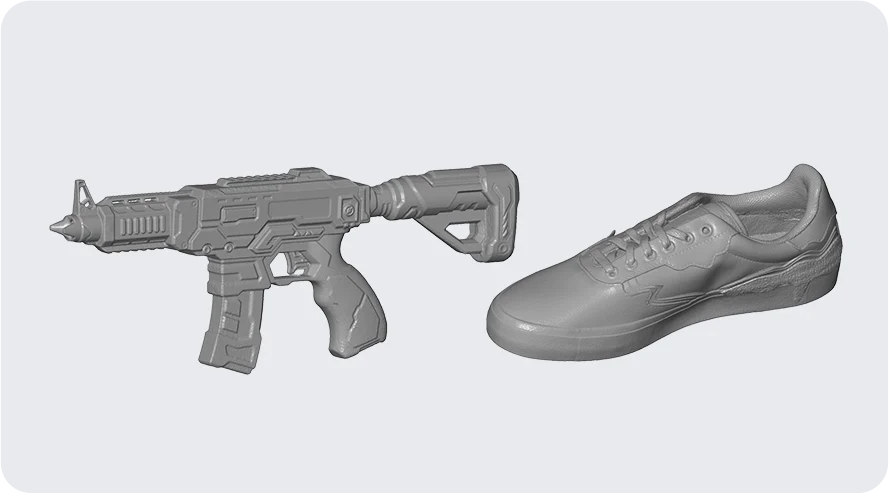

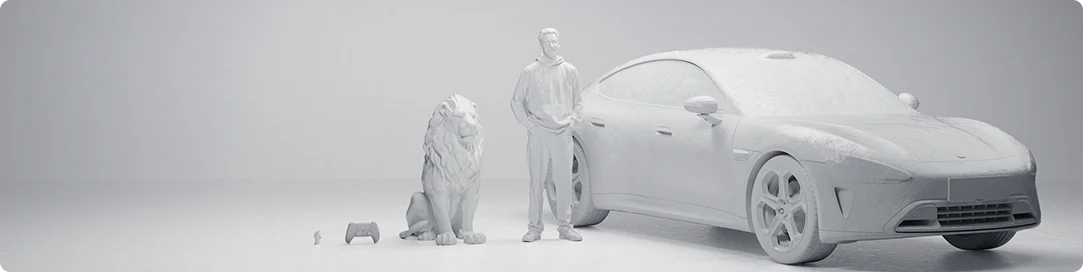

Capture SMALL & BIG Objects

The Otter Lite realizes possibilities of scanning various objects, ranging in size from 20*20*20mm³ to 2000*2000*2000mm³, from a small conch to a car, all covered in one scanner.

Scanning Accuracy up to 0.05mm

Otter Lite adopts the state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects. The scanning accuracy up to 0.05mm ensures every detail is sharp and clear.

Scanning speed up to 30 fps

High-speed scanning delivers smoother dynamic capture, enabling efficient data acquisition for large objects

Anti-shake, Smooth and Efficient Scanning

Equipped with One-Shot 3D imaging technology, Otter Lite is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

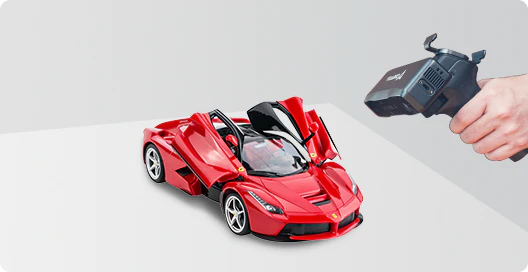

Scan Black/Metal Objects Without Spraying

Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.

Outdoor Scanning

Engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, Otter Lite has higher environmental adaptability and maintains excellent performance even in sunlight (<30000 lux).

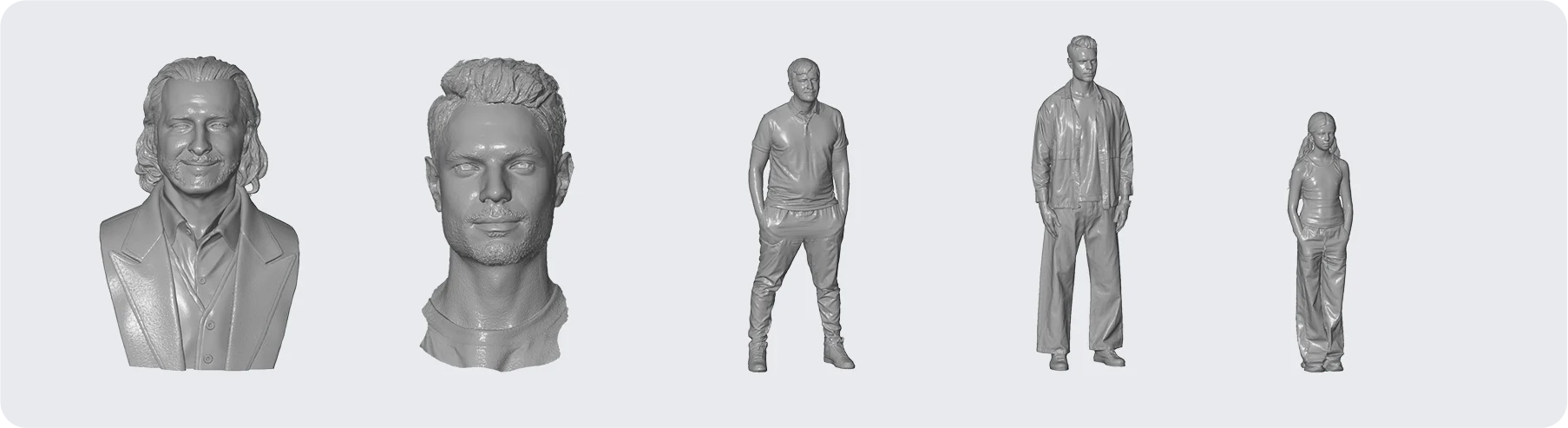

Unique Face & Body Algorithm with Eye Safety

Face & body mode is equipped with a unique face mapping algorithm that captures more details, easily scans hair. A human body scan only needs about 1 minute.Utilizing near-infrared light invisible to the human eyes achieves Class 1 laser safety, harmless to the human body. It's worry-free to scan the skin & face.

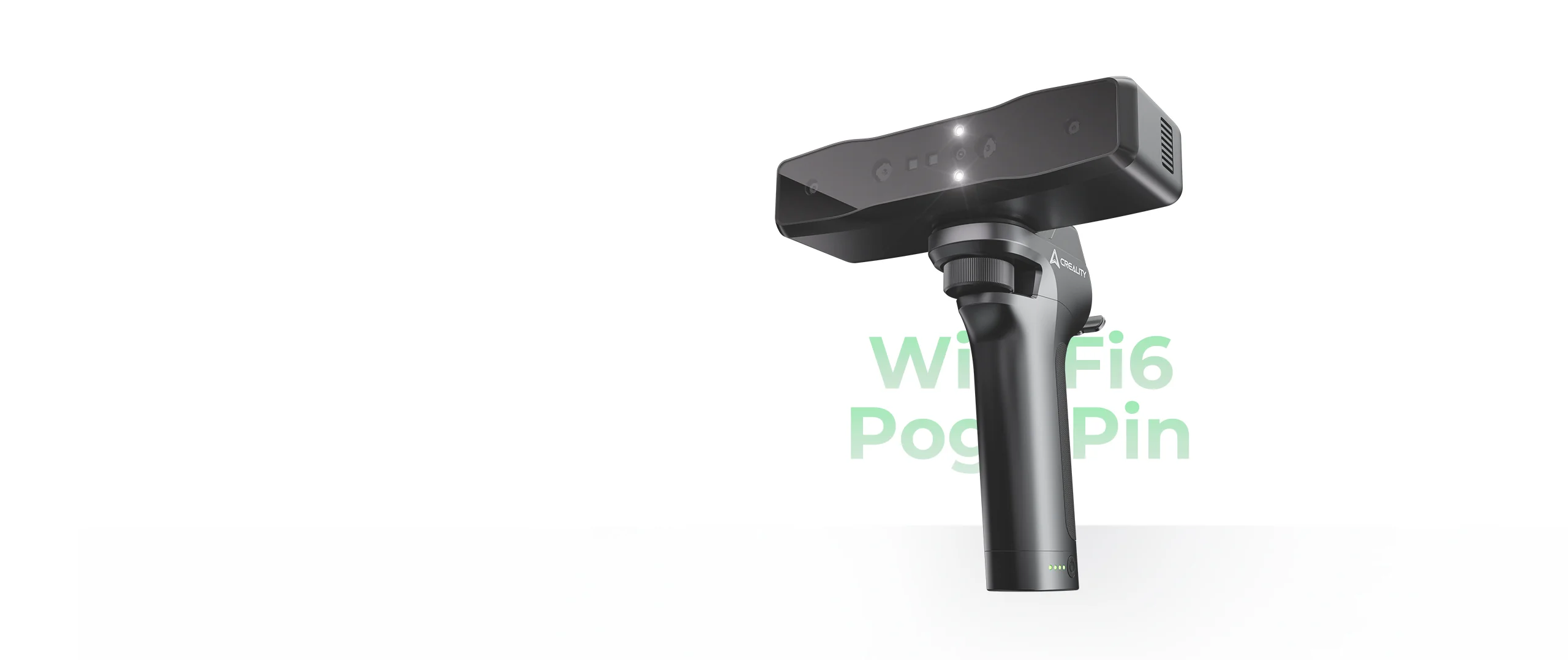

Wi-Fi 6 + Pogo Pin Fast Data Transmission

Equipped With advanced lossless data compression algorithm, Otter Lite allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.

Low Latency 10mS

Transmission Rate 4.7Gbps

AX6000 2X

AX3000 1X

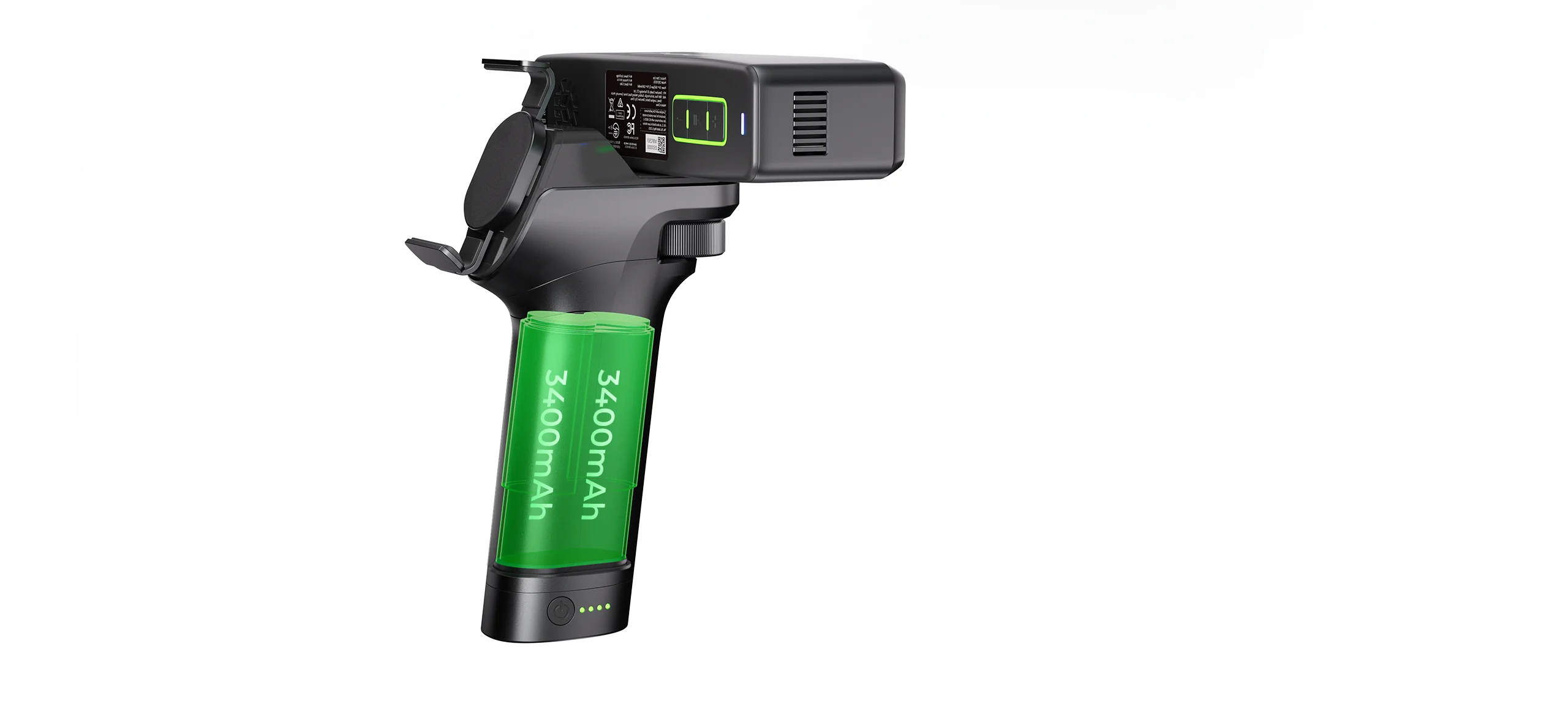

Large Capacity & Fast Charging

Charges to 80% in just 1 hours, making outdoor scanning more convenient and worry-free. Large capacity 3400mAh battery (Airplane Safe).

3400mAh （Airplane Safe）

Magnetic Quick Setup

Battery Indicator

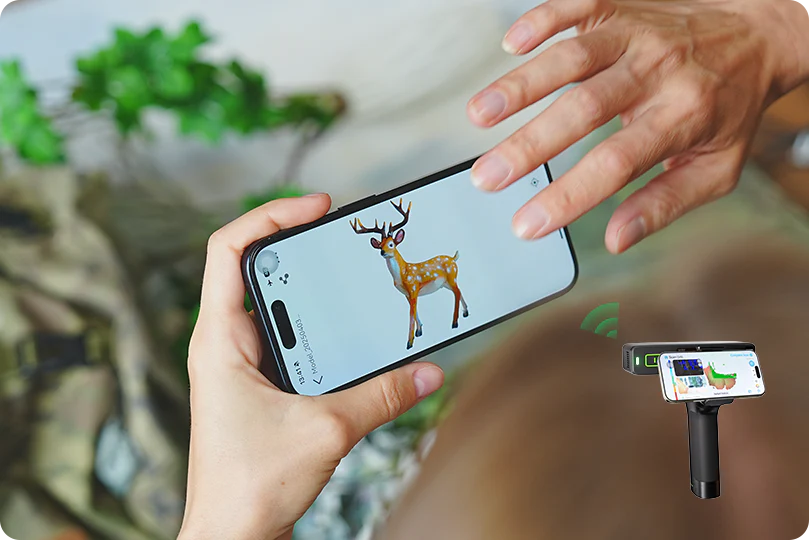

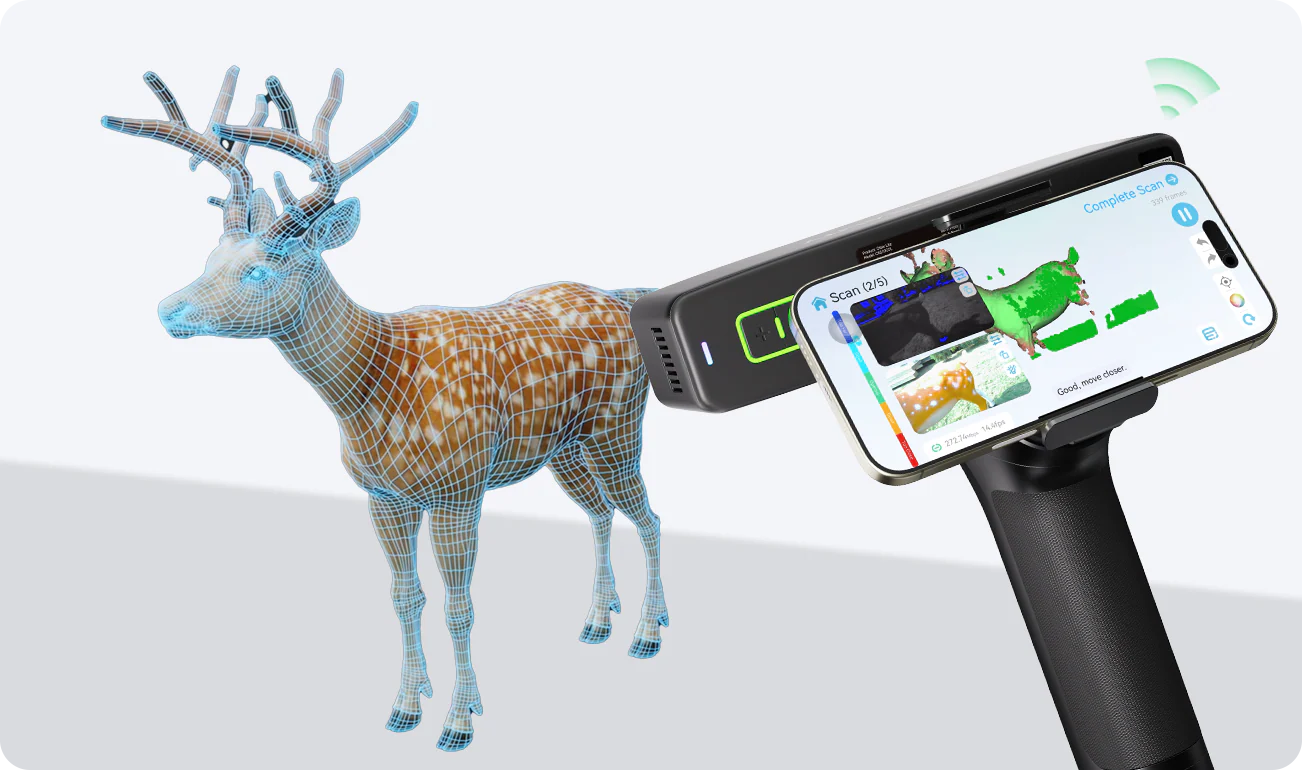

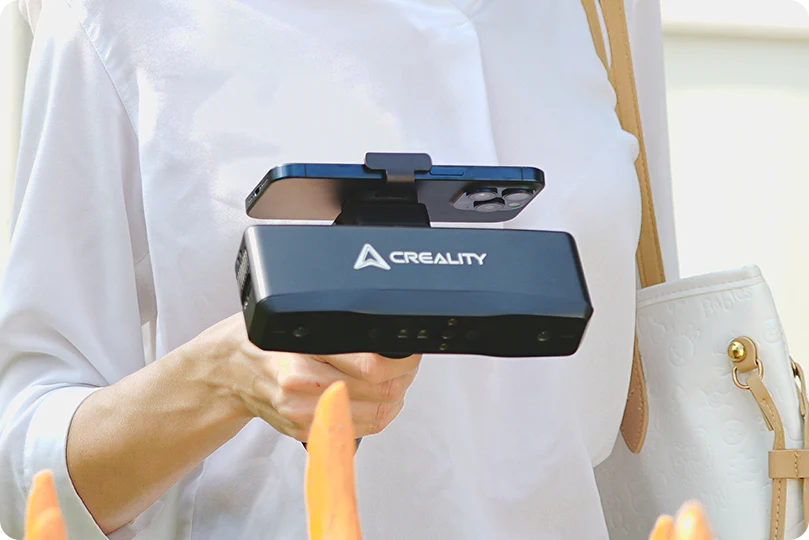

Real-Time Mobile Preview

With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Full-Color Scanning,
True-to-Life Reproduction

million-pixel full-color RGB camera

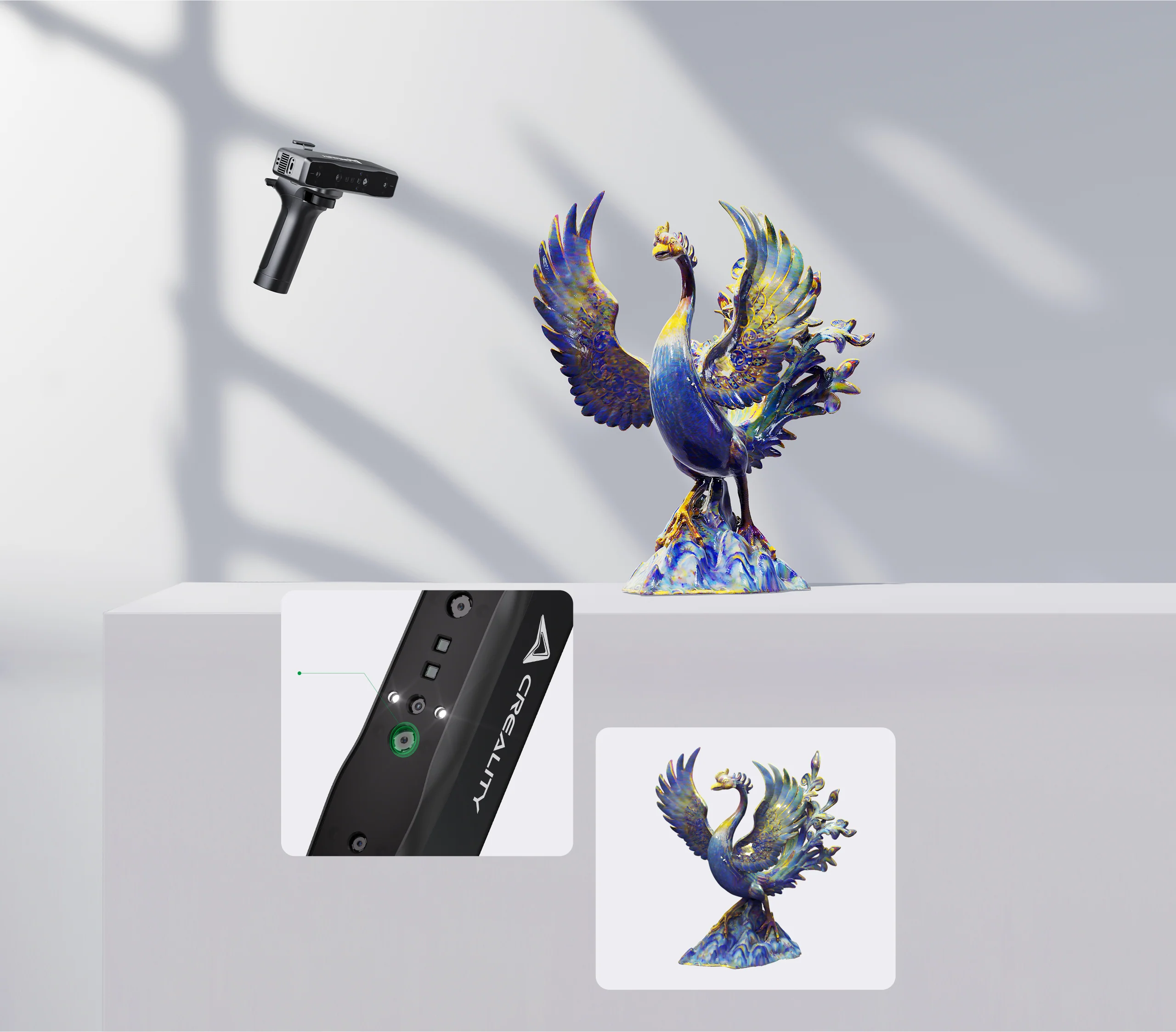

24-bit Full-Color Scanning Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors.

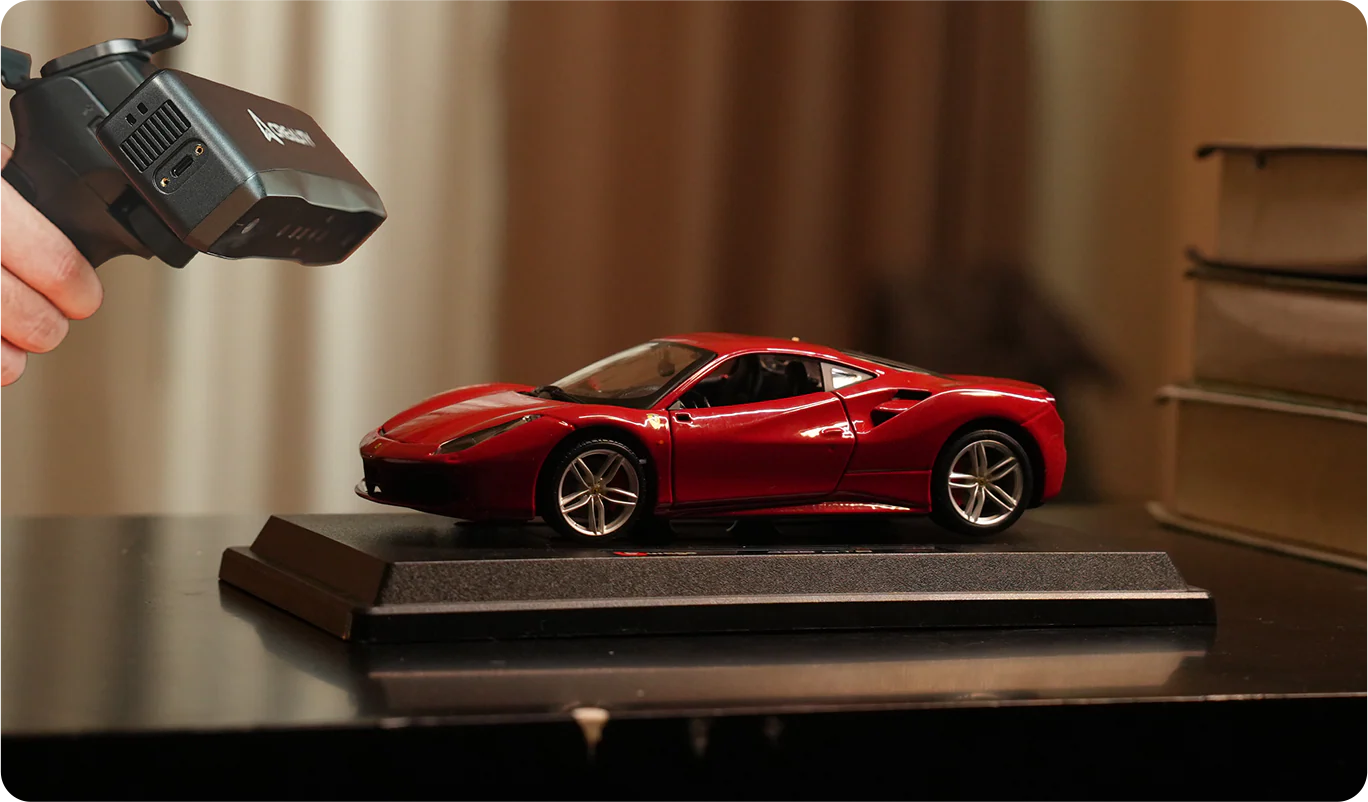

Clear Capture with Built-in Lights Even in low-light environments this allows for the most realistic texture effects . Two supplemental LEDs help precisely capture details, faithfully reproducing the color and texture of objects.

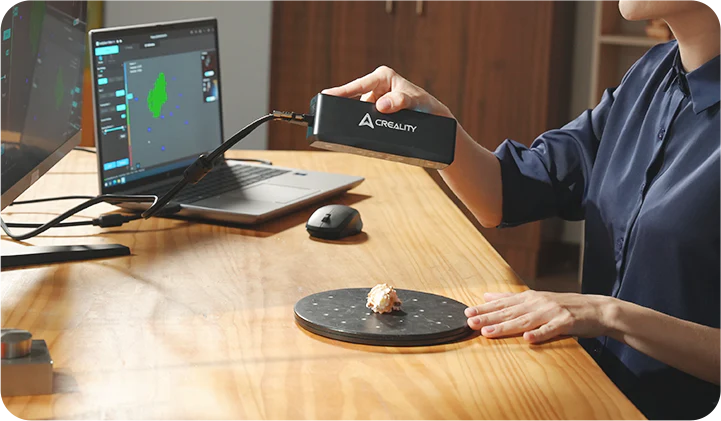

Supports Marker Scanning

With 8 infrared lights, it better tracks marker points, applicable to objects with fewer scanning features. Under marker mode, it will achieve higher accuracy.

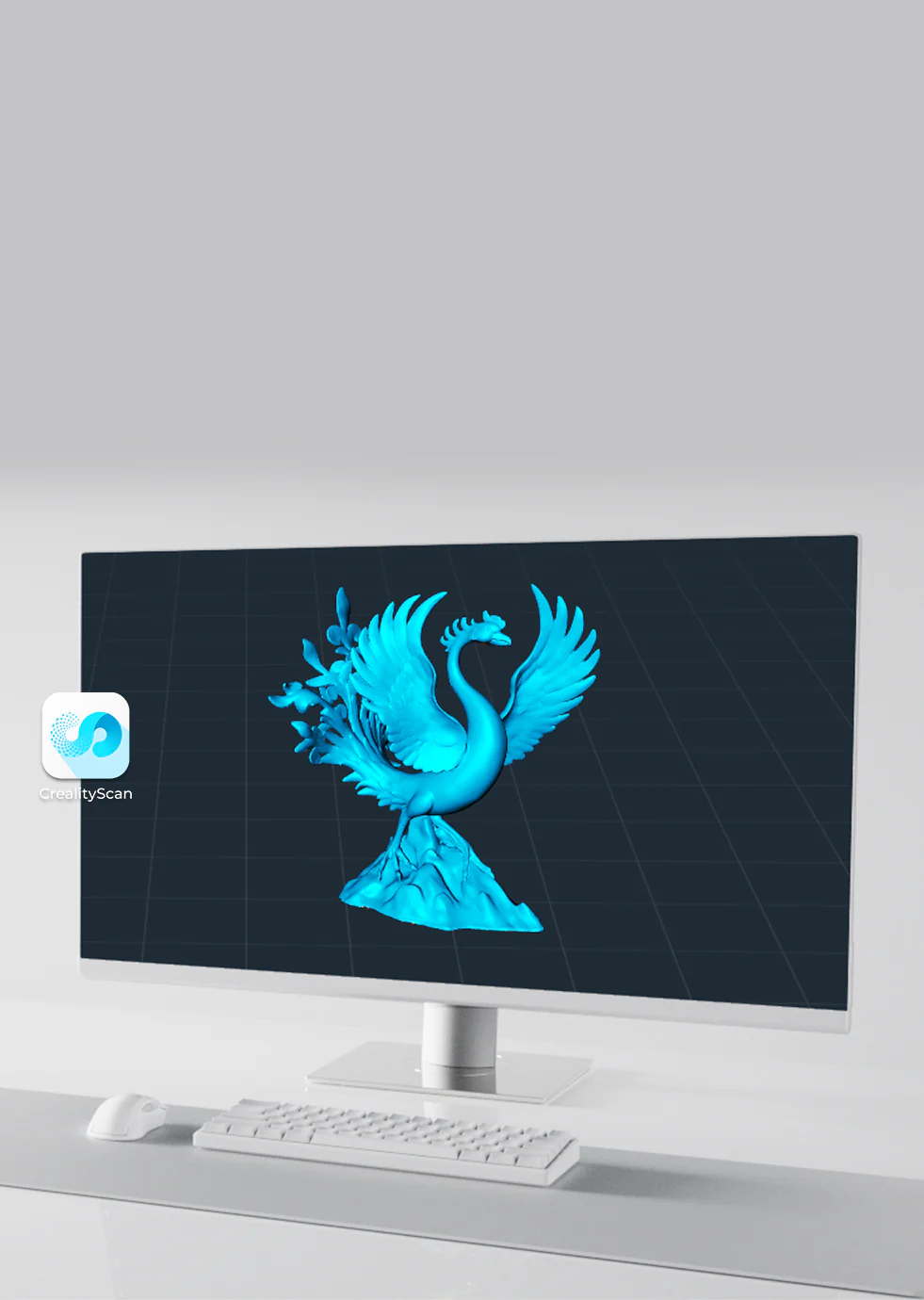

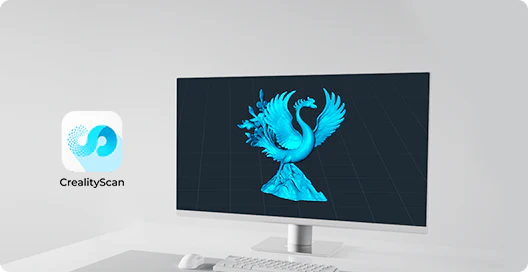

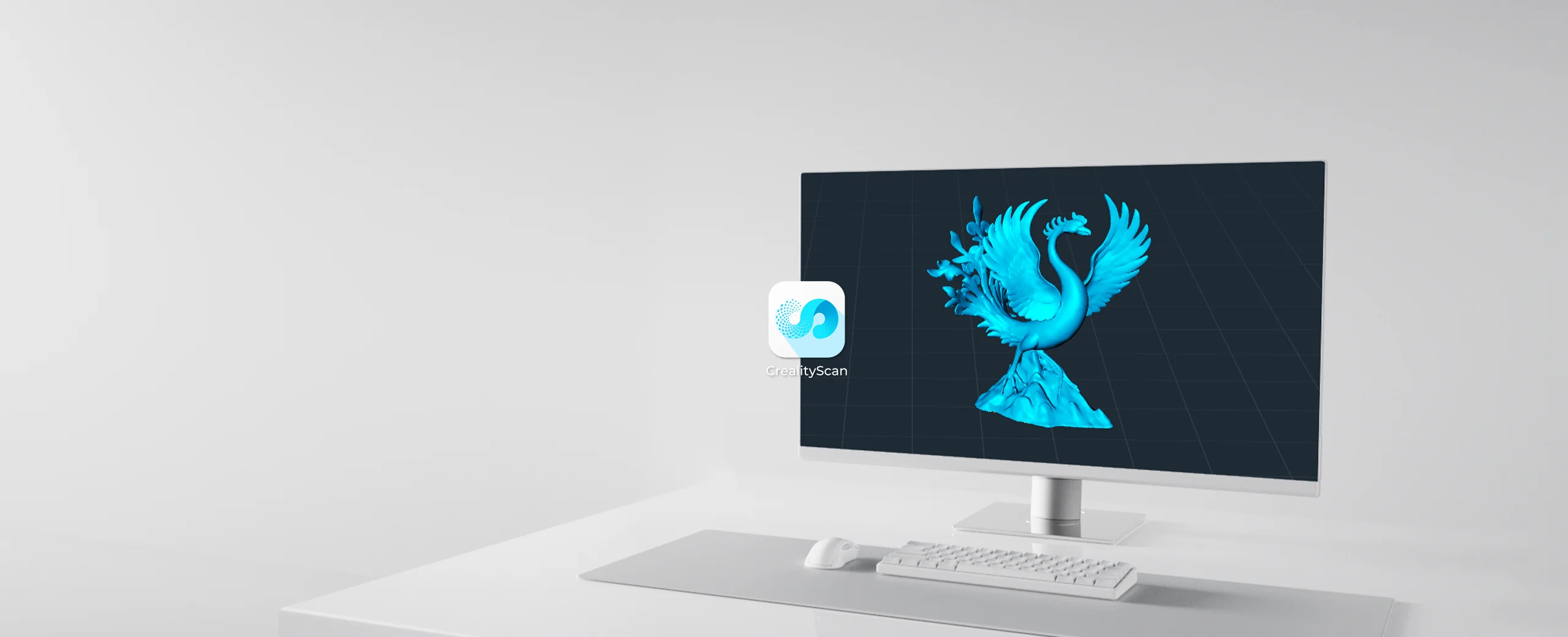

CrealityScan 4.0, Smarter, Faster, Stronger.

CrealityScan 4.0 is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing capabilities. With its step-by-step tutorials, one-click model processing, and model editing features, it can easily kickstart your effortless scanning journey.

Full-Screen Scanning

Multi-Scan Alignment

Pointcloud/Mesh Editing

Marker Mode

Face and Body Mode

Al-Powered Scan Repair

Elevate Scanning Experience

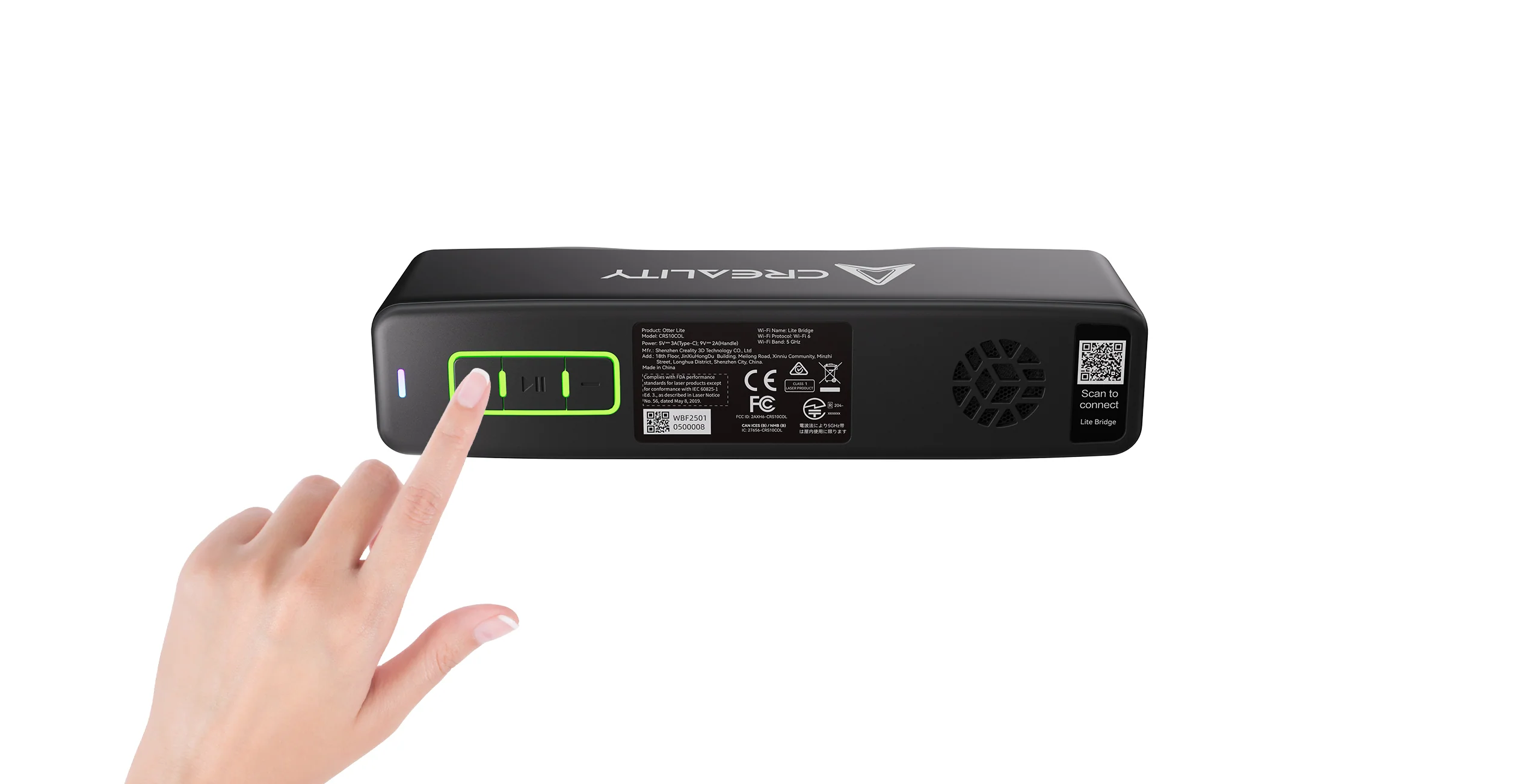

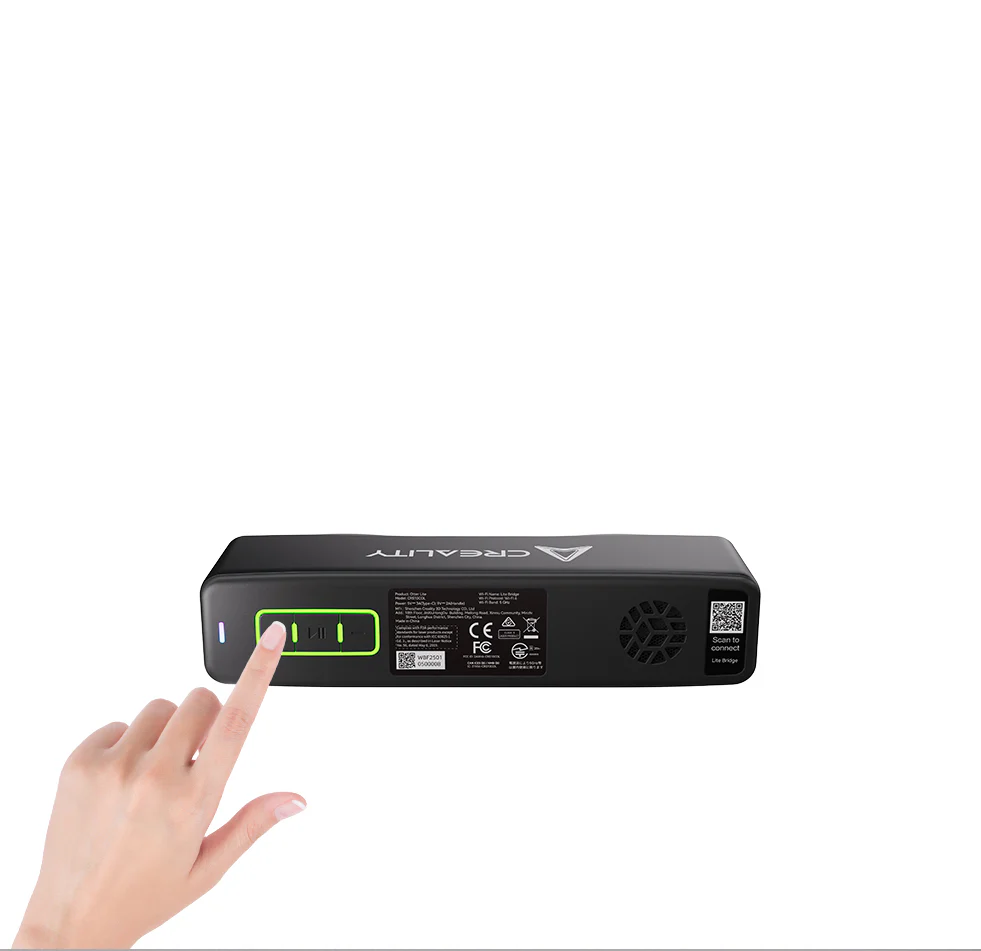

Ring indicator lights provide real-time scanning status; Otter Lite comes with tactile buttons and audible feeedback making scanning seamless. It allows for real-time exposure adjustment and offers comfortable and simple operation.

Start/Pause

Exposure adjustment

Audible feedback

Lite Bridge Smart Power-Saving

Intelligent energy-saving design automatically shuts down the device during prolonged inactivity.

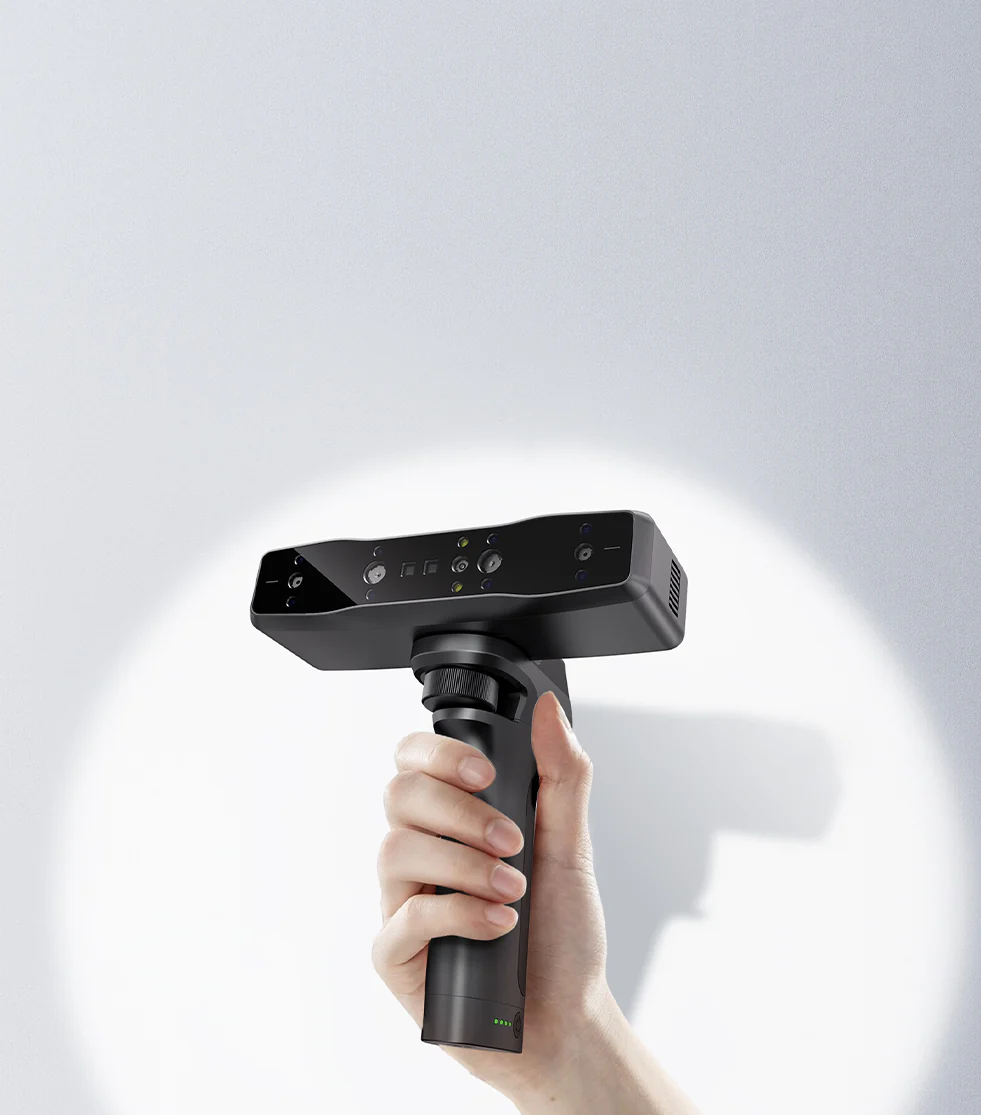

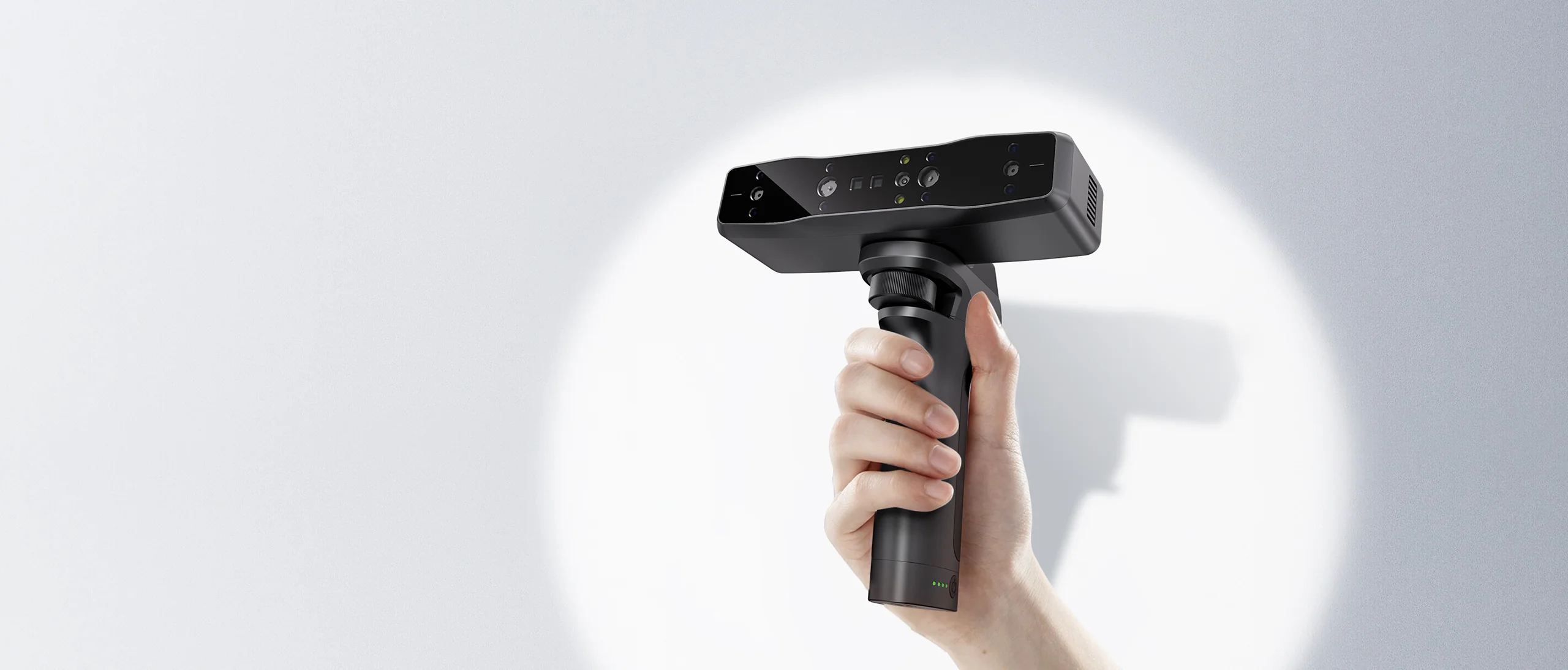

Strong Body,
Exquisite and Beautiful

Otter Lite Main
Unit Weighs Only

300g

Robust Exterior

Silent Scanning

Portable

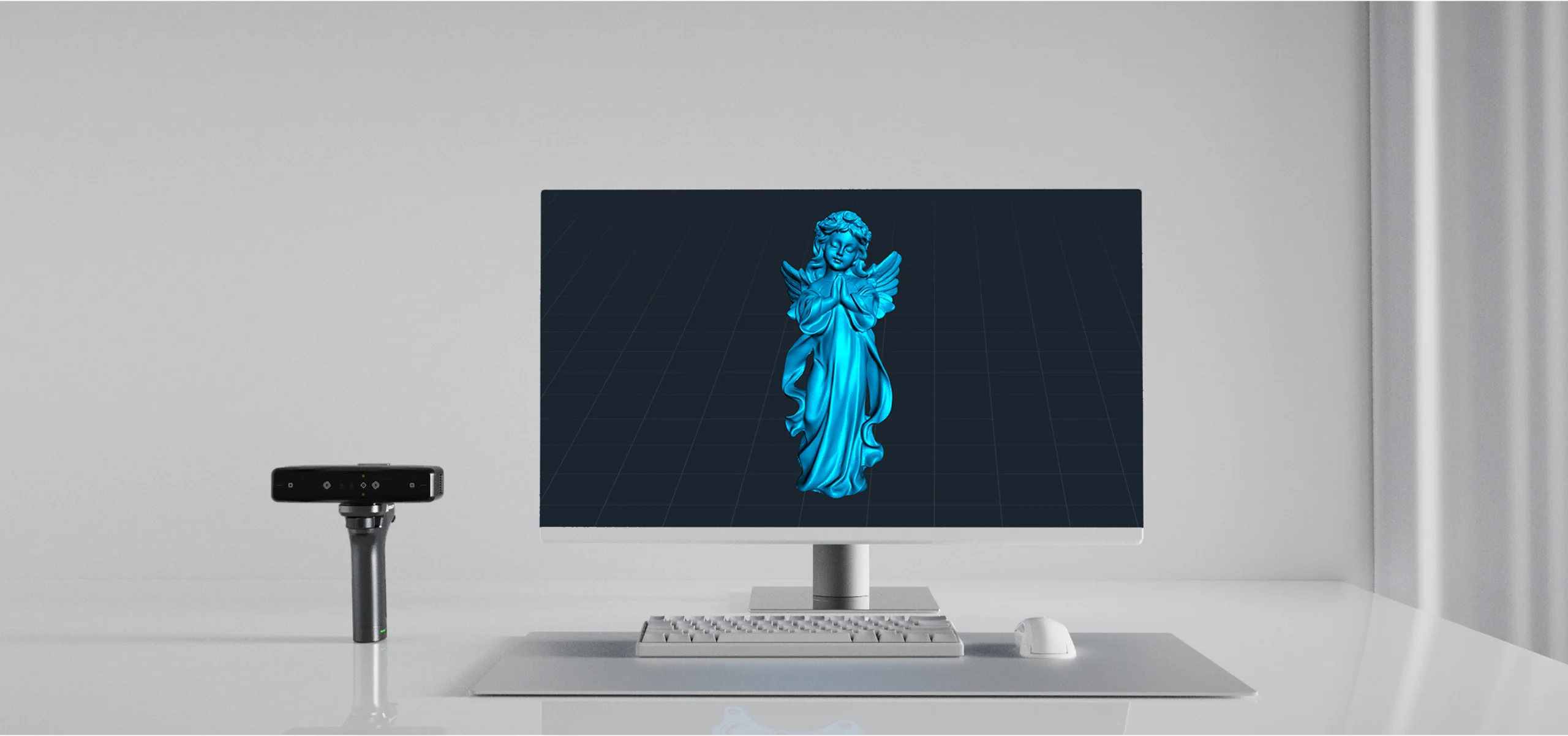

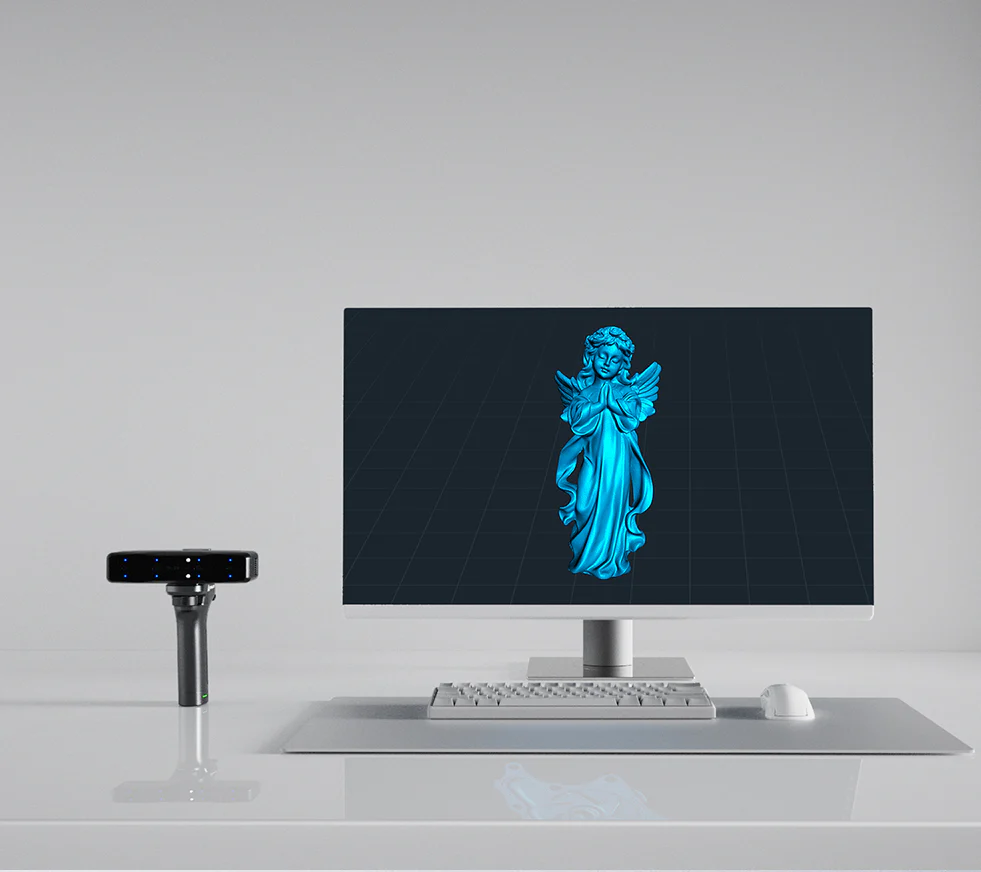

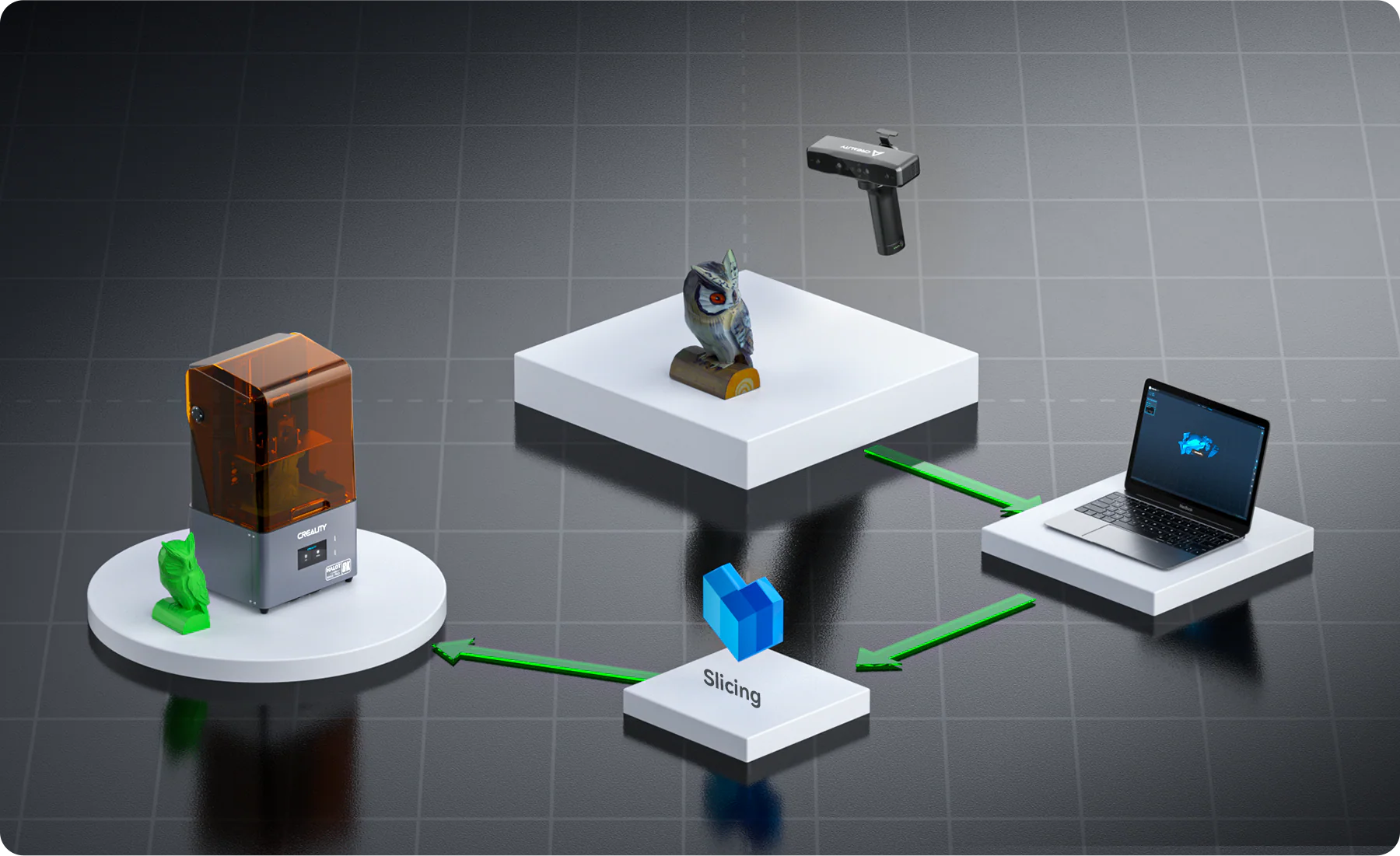

3D Printing Seamlessly
Connected to Scanning

Effortlessly generate precise, print-ready 3D models of virtually any objects without requiring time-consuming manual creation in complex 3D modeling software.

Scanned 3D models ready to print instantly.

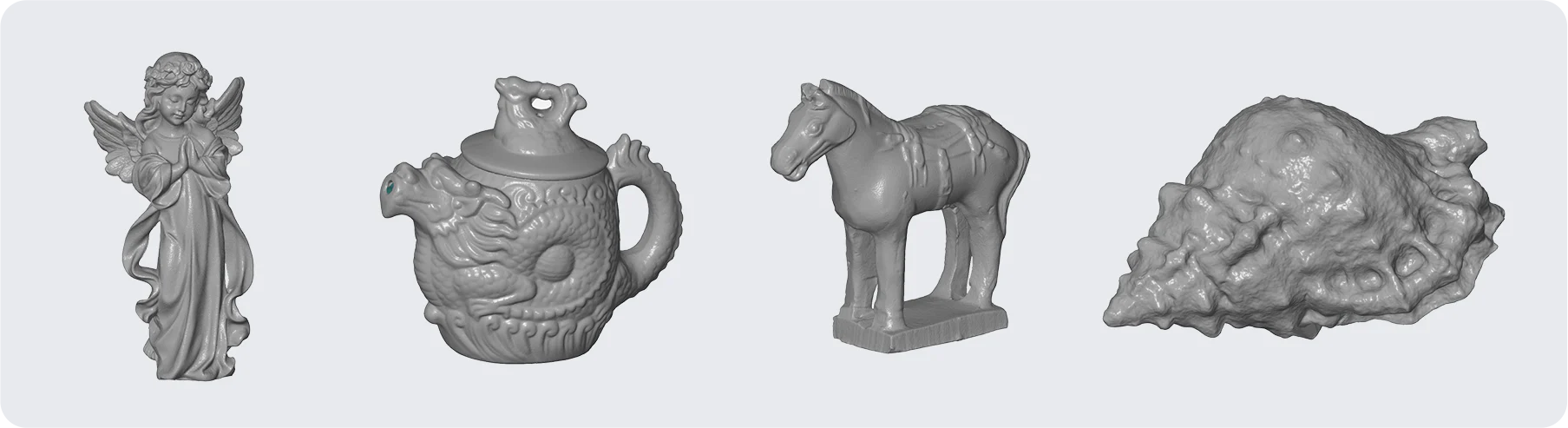

See Otter's Amazing Scans

Action Figure

Art

Face&Body

Accessory
Tools

Other

Packing List

Creality Otter Lite 3D-Scanner*1

Lite Bridge*1

USB 3.0 data cable(USB-C/USB-A, 2m)*1

USB 2.0 power cable(USB-C/USB-A, 1.5m)*1

High-precision calibration board*1

Turntable*1

Scanning test object (OWL)*1

USB-Cadapters*2

Reflective markers (Diameter:6mm*10,Diameter:3mm*10)

Screw*1

Magnetic phone holder*1

Quick start guide, certification &warranty card*1

Lanyard*1

Cleaning cloth*1

Portable case*1

Creality Otter Lite 3D-Scanner*1

Lite Bridge*1

USB 3.0 data cable(USB-C/USB-A, 2m)*1

USB 2.0 power cable(USB-C/USB-A, 1.5m)*1

Lanyard*1

USB-Cadapters*2

Scanning test object (OWL)*1

Screw*1

Magnetic phone holder*1

High-precision calibration board*1

Reflective markers (Diameter:6mm*10,Diameter:3mm*10)

Cleaning cloth*1

Turntable*1

Quick start guide, certification &warranty card*1

Portable case*1

Product Parameters

Scanning Mode	NIR(infrared binocular structured light)	Accuracy	0.05mm@100mm [1]
3D Resolution	0.1-2mm	Scanning Speed	Up to 30fps
Min. scan volume	20mm x 20mm x 20mm	Single Capture Range	Close range mode 100mm62mm@120mm 160mm130mm@250mm Long range mode 352mm254mm@300mm 788mm509mm@600mm 1460mm*1017mm@1200mm
Working distance	120mm-1200mm	Color Mapping	Yes
Alignment Mode	Marker / geometry / texture	Output Format	OBJ/STL/PLY
IMU	Yes	Marker Recognition Enhancement	8 NIR LEDs
Color Supplemental Light	2 white LEDs	Laser Safety	Class I (eye safe)
Weight	Main unit: 300g Lite bridge: 306g	Size	173mm39mm56mm
Calibration Board	High-precision glass calibration board	Wireless Scanning	Yes
Protocol	Wi-Fi 6, Backward compatibility	Wi-Fi Bands	5GHz
Data Transfer Rate	Up to 30fps	Data Interface	Type-C/USB3.0/USB2.0
Input Power	USB3.0 5V 3A WiFi 12V 2A	System Support	Windows: Windows 10/11 (64-bit) Recommended: i7-Gen7+ CPU, Nvidia/AMD GPU, 16GB+ RAM Minimum: i5-Gen8+ CPU, 8GB+ RAM Mac OS: Recommended: Apple M1/M2/M3 16GB+ RAM Minimum: Intel i5-Gen8+ 8GB+ RAM Android Chip:Qualcomm Snapdragon 888++ Operating System:Android 10.0+ RAM:≥6G iOS： Model:iPhone 13(A15 Bionic) Operating System:iOS15+ RAM:≥6G

Buying Guide

	Otter Lite	Otter
Scanning Mode	NIR(infrared binocular structured light)	NIR(infrared binocular structured light)
Accuracy	0.05mm@100mm [1]	Up to 0.02mm @ 60mm [1]
3D Resolution	0.1-2mm	0.05-2mm
Scanning Speed	Up to 30fps	Up to 30fps
Min. scan volume	20mm x 20mm x 20mm	10mm x 10mm x 10mm
Single Capture Range	Close range mode 100mm62mm@120mm 160mm130mm@250mm Long range mode 352mm254mm@300mm 788mm509mm@600mm 1460mm*1017mm@1200mm	Close range mode 100mm62mm@120mm 160mm130mm@250mm Long range mode 358mm254mm@300mm 784mm509mm@600mm 1350mm×840mm@1000mm
Working distance	120mm-1200mm	110mm-1000mm
Weight	300g	390g
Size	173mm39mm56mm	165mm37mm59mm
Wireless Scanning	Yes	Supported in conjunction with wireless scanning accessories
[1] Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
